Diverter Valves and Flow Control Valves

In dry bulk material handling systems, maintaining control over the movement and direction of bulk materials is critical to smooth operation and system performance. Diverter valves and flow control valves are key to achieving this control by managing how and where bulk solids are transported within the system. These valves are designed for durability and precision, ensuring smooth operation with a wide range of bulk solids—from fine powders to coarse pellets and granules.
Key Functions of Diverter and Flow Control Valves:

• Shut Off Flow: Completely stops the movement of bulk materials when needed, for maintenance, operational shifts, or safety protocols.

• Regulate Flow Speed: Controls the rate at which materials pass through the system, allowing for accurate dosing, batching, or blending.

• Change Flow Direction: Redirect bulk solids from one discharge point to another, enabling distribution to multiple processing or storage points.
Diverter and flow control valves are essential in industries such as food processing, chemicals, plastics, cement, and mining. They are designed to handle dry bulk solids from free-flowing powders to more challenging materials like sticky granules or abrasive particles, ensuring both efficiency and safety in demanding operations.

Diverter and Flow Control Valve Solutions for Bulk Material Handling

Polimak offers a wide variety of diverter and flow control valves for handling dry bulk materials in both pneumatic conveying and gravity-fed systems. These valves are designed to meet diverse industrial needs, ranging from standard applications to highly specialized processes. In addition to the standard models, we also offer custom-designed solutions to meet unique operational requirements. Available models include:

• Butterfly Valves

• Slide Gate Valves

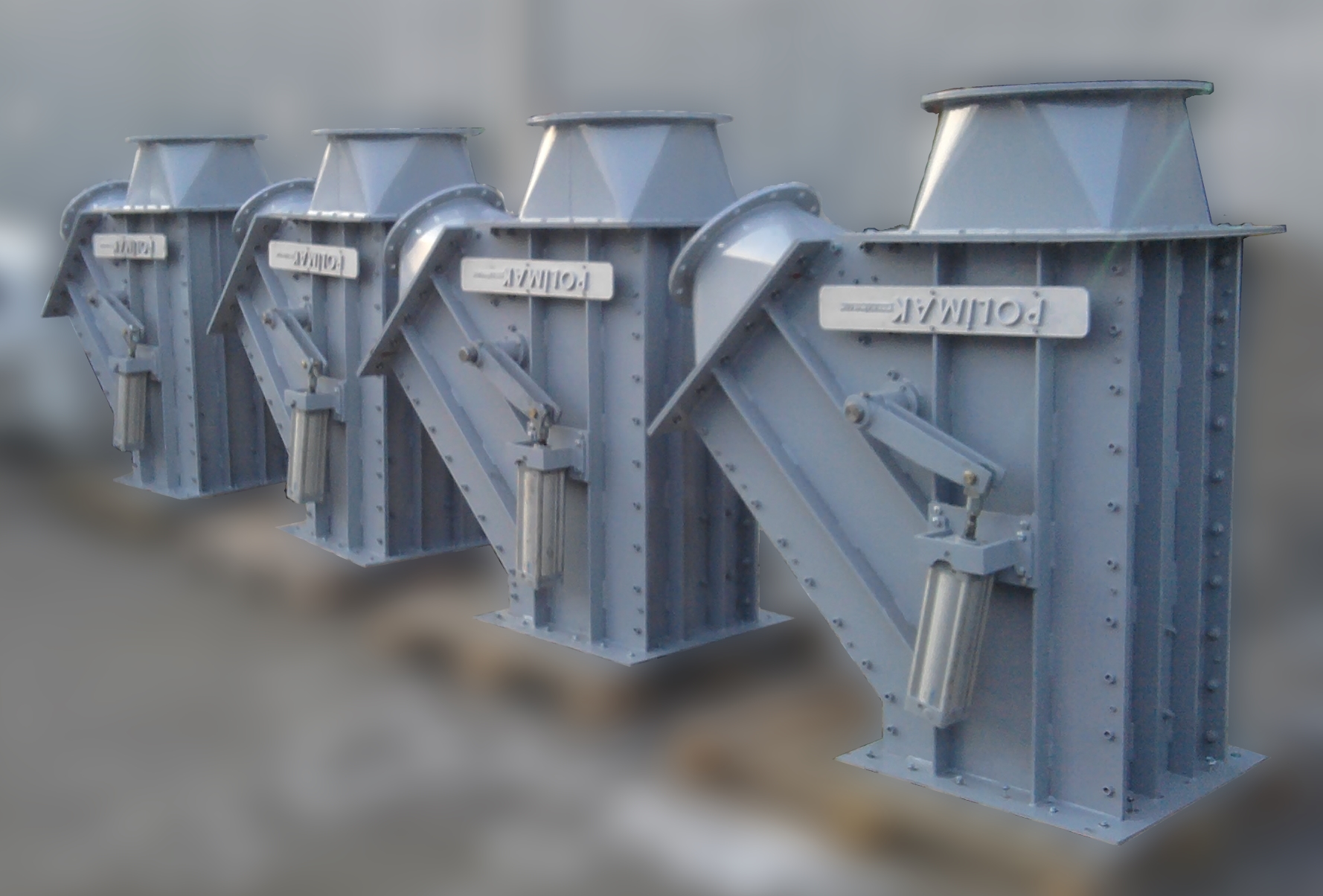

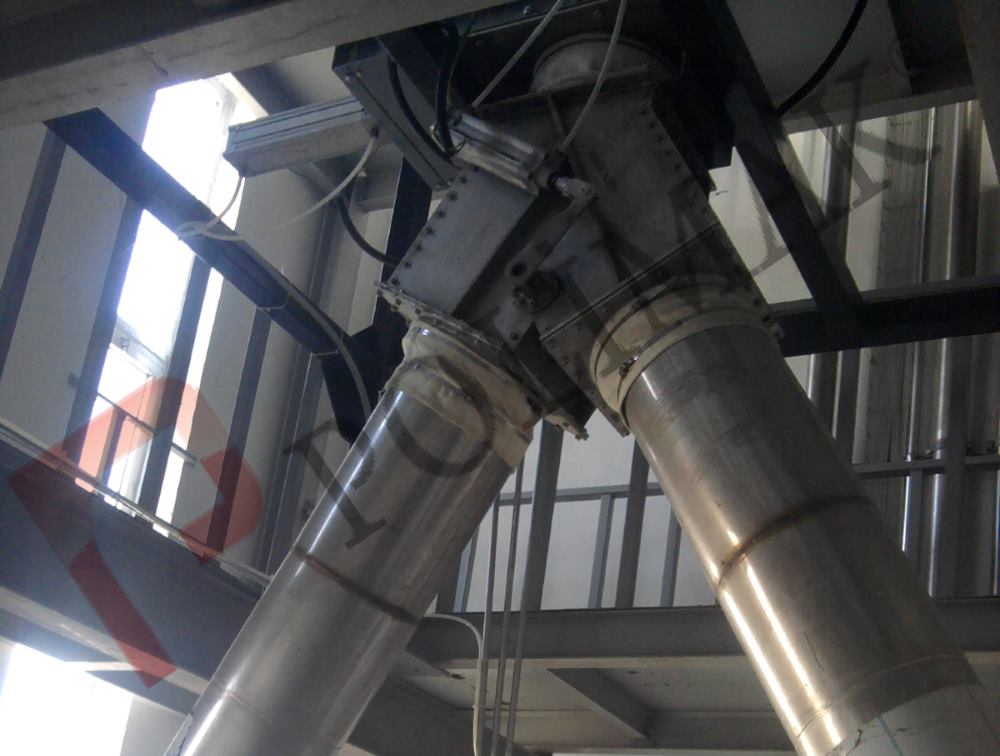

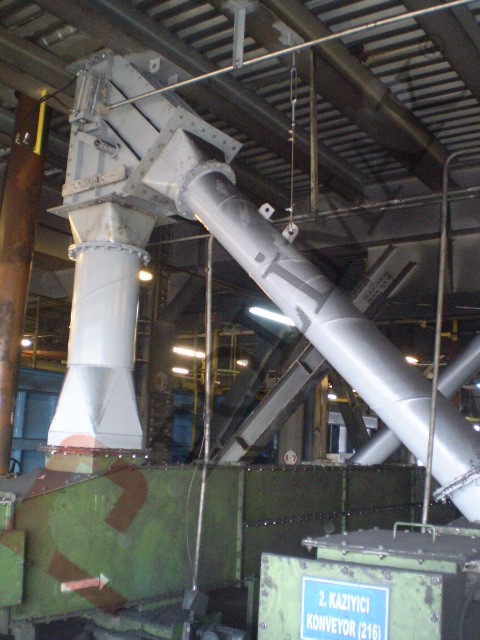

• Flap Type Gravity Diverter Valves

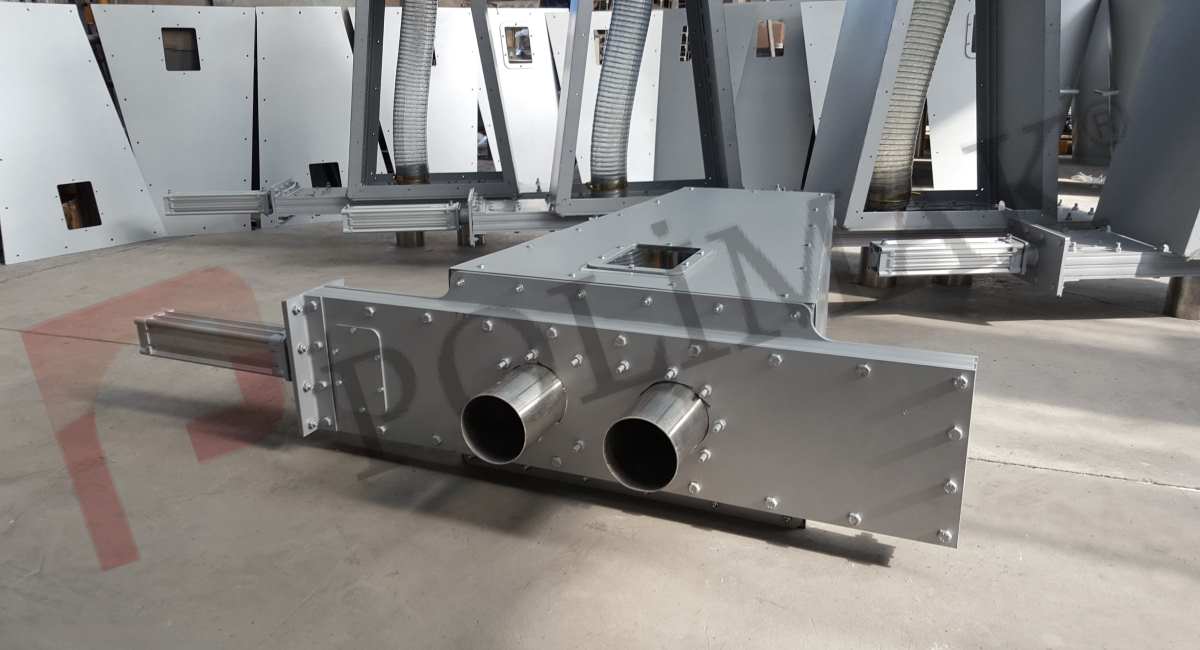

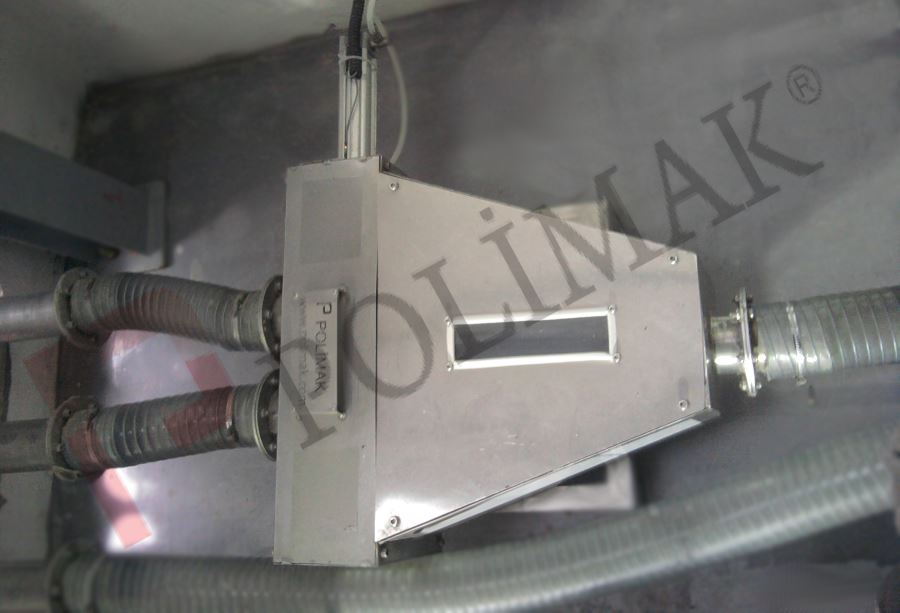

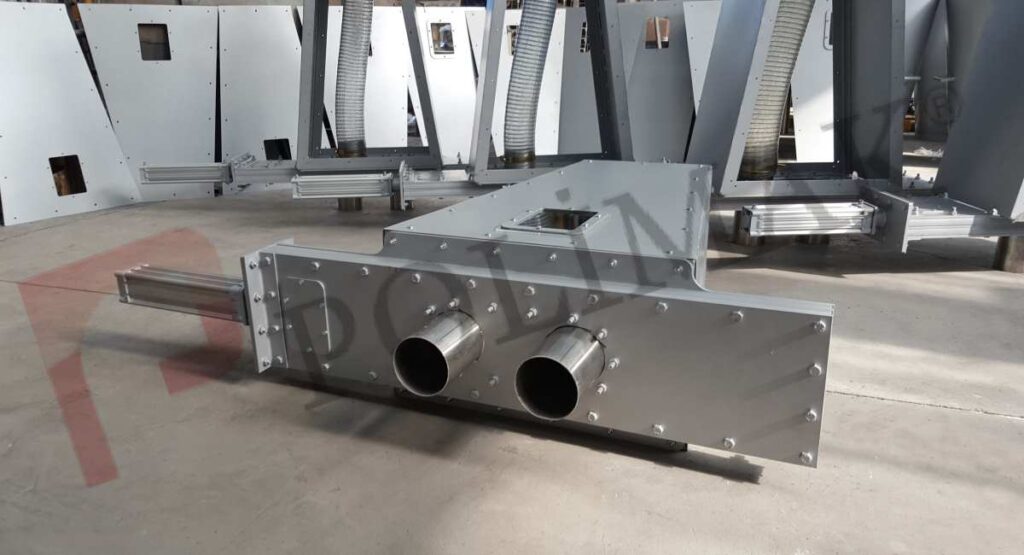

• Flexible Tube Diverter Valves

• Multiport Diverter Valves

• Pinch Valves

• Flap Type Pneumatic Conveying Diverter Valves

• Iris Valves

• Flow Control Gate Valves

• Custom Designed Valves

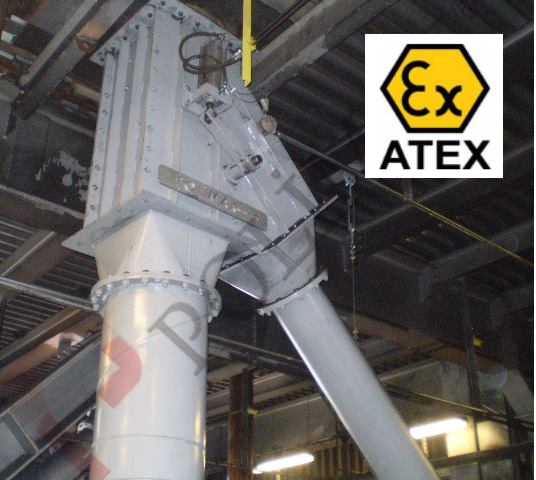

• ATEX Certified Diverter and Flow Control Valve
Designing valves for bulk solids handling systems demands not only technical expertise but also a deep understanding of bulk material behavior, flow dynamics, and system integration. With over 45 years of experience in bulk material handling solutions, Polimak brings extensive industry knowledge to every project, ensuring that each valve is engineered for optimal performance and durability. Choosing the right valve is critical to achieving consistent, long-term operation without material blockages, wear issues, or maintenance disruptions. Polimak’s experienced technical team conducts detailed engineering analyses and applies precision manufacturing techniques to deliver reliable, customized flow control solutions tailored to the specific needs of a wide range of industries.
