Slide gate valves serve as a reliable and effective solution for regulating the flow of free-flowing dry bulk materials in a wide range of industrial applications. Although often known as knife gate valves because of their functional similarity, slide gate valves have structural differences that make them better suited for handling dry bulk materials. They are positioned at discharge points such as silos, bins, hoppers, chutes, and mechanical conveyors to regulate the flow of bulk materials with accuracy.

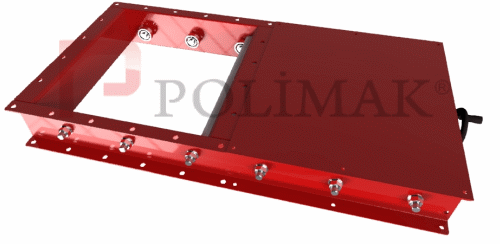

The key part of a slide gate valve is a robust, rectangular blade that slides horizontally to open or close the valve passage. This blade, often made from thick sheet metal, can fully block or partially open the passage, depending on the required flow rate. When fully open, the blade allows dry bulk materials such as powders, flakes, pellets, or granules to fall freely through the valve with minimal resistance. In the closed position, the blade provides a secure seal that completely stops bulk material flow, preventing leakage and ensuring system control.
These valves offer more than just open or closed settings; they allow the blade to be positioned anywhere along its path for adjustable flow control. This feature gives operators the ability to regulate material discharge rates according to process needs. Combined with appropriate sealing components, the blade's sliding action ensures consistent, reliable performance, even under harsh conditions or with abrasive materials. Slide gate valves are needed in applications where space is limited, bulk material flow must be finely controlled, or system shut-off is frequently required for maintenance or process changes.
Design Features and Benefits of Slide Gate Valves
• Low Profile Valve Body Design:
A low-profile valve body keeps flange-to-flange dimensions small, saving valuable space during installation. This design is advantageous in confined areas where maximizing available space is critical.
• Flexible Installation Options:
Slide gate valves are designed to fit both new installations and system enhancements, offering versatile solutions for existing or new bulk handling systems.
• Durable Sliding Knife and Seal Materials:
Choosing durable materials for the sliding blade and seals guarantees reliable, trouble-free performance over time. This minimizes wear and reduces maintenance needs while keeping effective flow control of bulk solids.
• Uninterrupted Flow When Fully Open:
When the valve is fully open, it allows bulk materials to pass through freely without obstruction, ensuring smooth and efficient material handling during discharge.
• Fast Shut-Off Capability:
Slide gate valves can function as shut-off devices, allowing operators to rapidly stop material flow when needed for process control or safety purposes.
• Operation During Material Discharge:
These valves can be actuated even while bulk materials are flowing through gravity-fed lines, enabling continuous operation without the need to halt production.
• Multiple Inlet and Outlet Flange Options:
Rectangular and circular flange options are available to work with diverse configurations and application requirements, providing flexibility in system design.
• Compliance with Industry Standards:
Slide gate valves come equipped with either DIN or ANSI standard flanges, ensuring compatibility with a wide range of piping systems worldwide.
• Effective Sealing Solutions:
Equipped with polyurethane, gland packing, and silicone seals, the slide gate valves prevent leakage and contamination, preserving product integrity and maintaining system cleanliness.
• Robust Construction Materials:
Manufactured from cast steel, cast aluminum, or welded steel, they provide varying degrees of strength and corrosion resistance to meet the unique requirements of different applications.
• Sanitary-Grade Stainless Steel Models:
Specialized stainless steel versions are available to meet the hygiene and corrosion resistance standards required in food processing and sanitary environments.
• Abrasion-Resistant Hardox Steel Models:
For handling abrasive bulk materials, slide gate valves manufactured with Hardox steel provide superior durability and longer service life under harsh conditions.
• High-Temperature Capabilities:
Some models are designed to withstand temperatures up to 200°C, making them suitable for use in high-temperature gravity discharge applications.
• Multiple Actuation Methods:
Slide gate valves can be operated using pneumatic pistons, electric drives, manual handwheels, or chainwheels, offering flexible control options to match different operational preferences.
• Precise Flow Control with Position Controller:
A special position controller enables precise adjustment of the sliding blade’s position, allowing operators to keep the desired material flow speed.
• Integrated Position Monitoring:
Built-in limit switches and position indicators provide real-time feedback on the valve’s status, improving process monitoring and ensuring safe operation.
• Custom-Engineered Valve Solutions:
Slide gate valves can be tailored to suit challenging applications, with options for unique dimensions, construction materials, and performance specifications.
• ATEX-Certified Models for Hazardous Areas:
For environments with explosive or hazardous atmospheres, ATEX-certified slide gate valves ensure safe and compliant operation, providing safety in high-risk industrial settings.

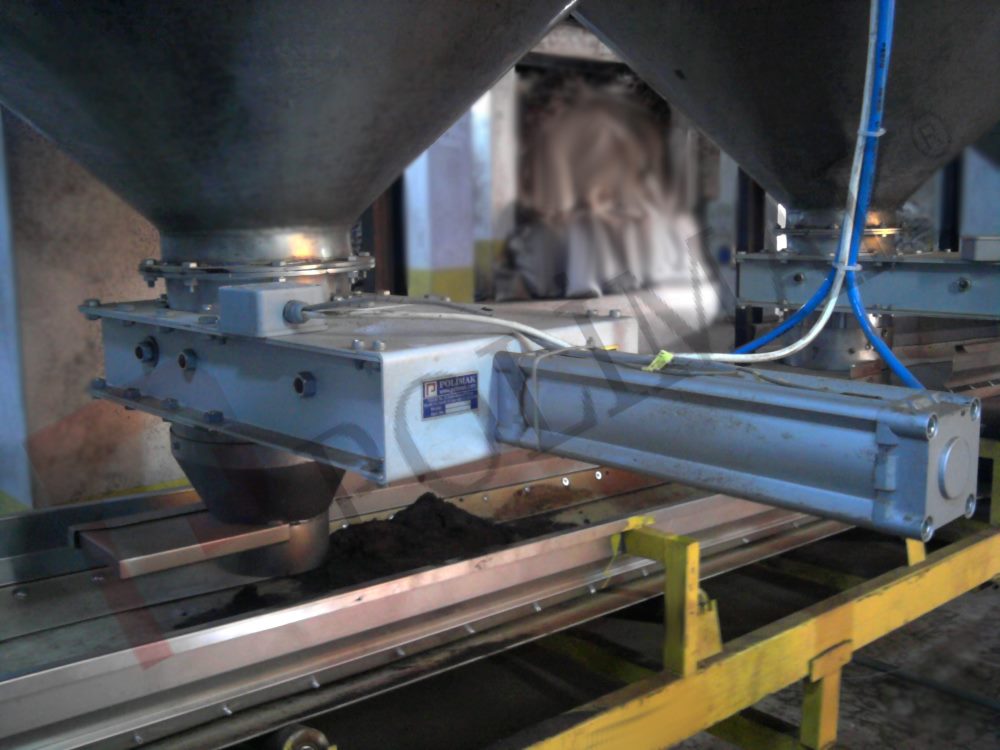

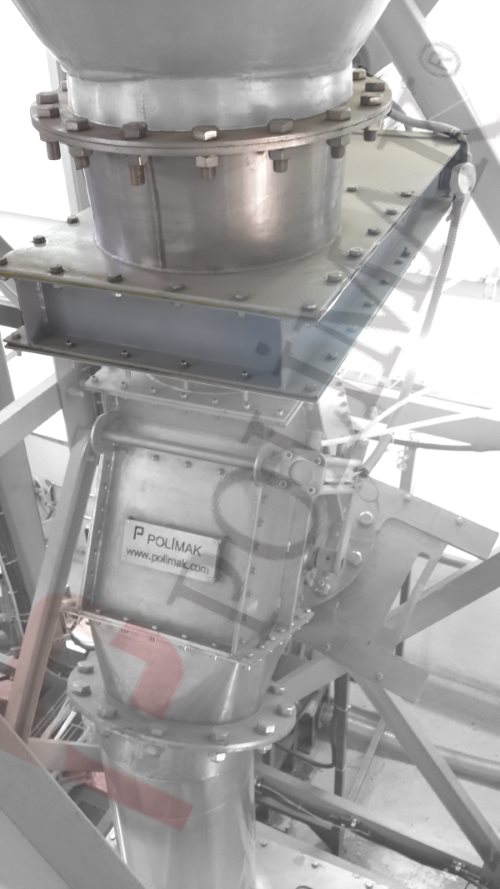

In this application, slide gates are equipped with pneumatic piston actuators, enabling automated control of material discharge from silos. They are designed to open and close precisely, allowing bulk solids to flow into downstream equipment such as conveyors, feeders, or packaging systems. The reliable actuation and tight sealing ensure efficient and dust-free transfer of dry materials during the discharge process.

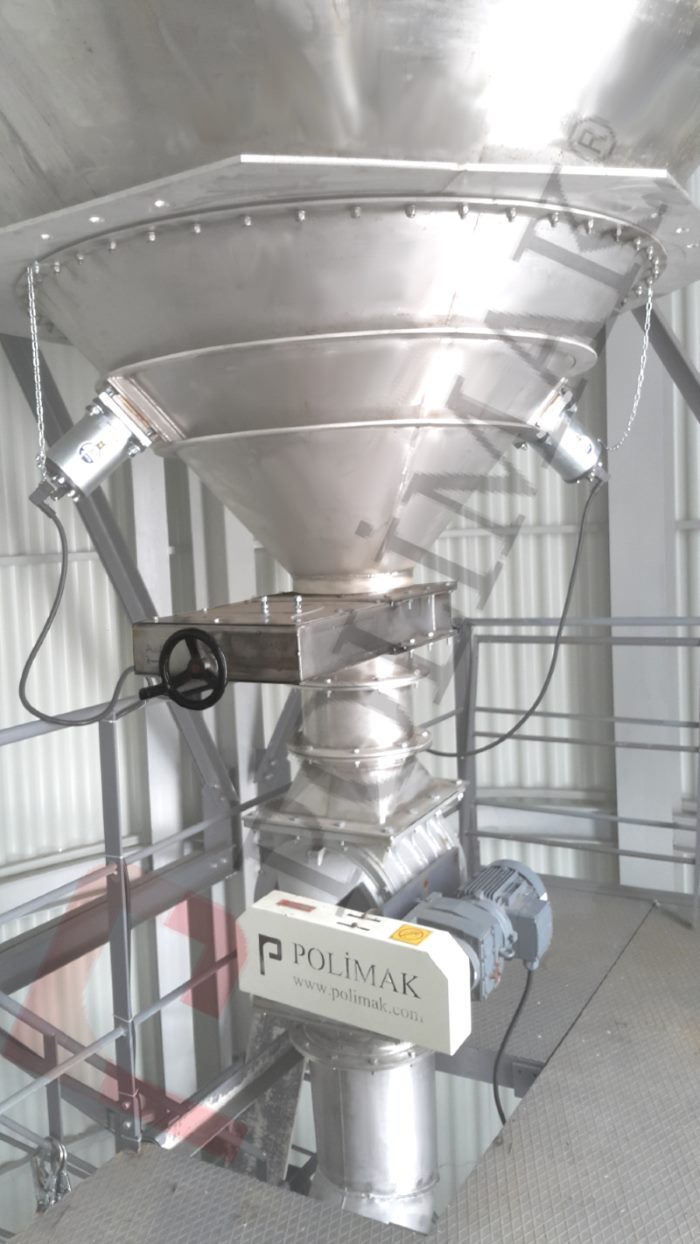

• Manually Operated Slide Gate Valves:
Installed beneath silos or hoppers, these valves are used as isolation devices for downstream equipment like screw feeders, rotary valves, or airlocks. Manual operation allows maintenance teams to shut off material flow when servicing or cleaning equipment below the valve. This setup ensures operator safety and prevents material spillage during maintenance or downtime.
• Gravity Flow Line Applications:

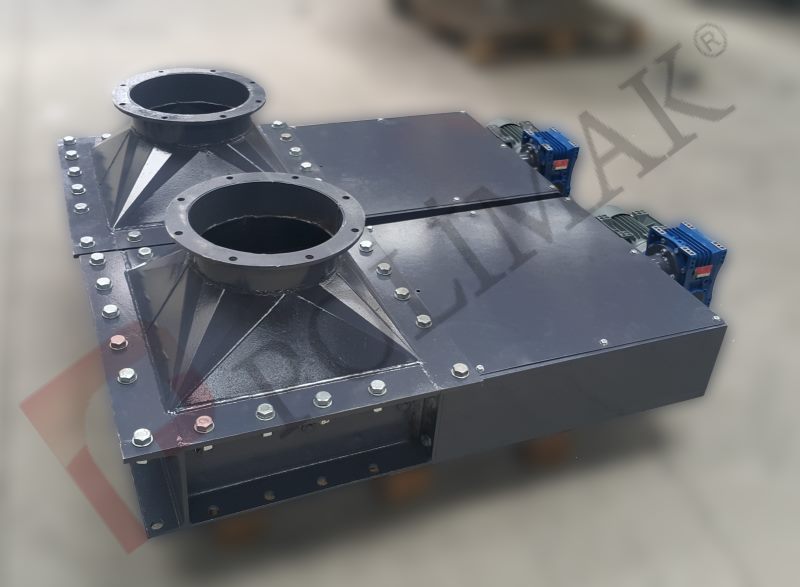

In gravity-fed systems, electrically actuated slide gate valves are used to control the flow rate of bulk solids as they move through the line. These valves offer precise modulation of the blade position, enabling operators to increase or decrease the discharge rate based on process requirements. Their ability to respond quickly to control signals makes them ideal for automated bulk handling systems demanding real-time flow adjustments.
• Dry Bulk Mixers:
Slide gate valves can be installed at both the inlet and outlet points of dry bulk mixing systems. At the inlet, they control the flow of powdered or granular ingredients entering the mixer, ensuring proper dosing and preventing overfilling. At the outlet, they allow for controlled release of the blended product to downstream packaging or processing equipment, helping maintain consistency and efficiency throughout the mixing operation.
These valves are typically actuated by pneumatic actuators and are used to automatically open and close the product flow to discharge material to downstream equipment.
Installed below silos or hoppers, these valves are used for maintenance operations of equipment such as rotary valves, screw feeders, etc., that are positioned below the butterfly valve.
These valves are typically actuated by pneumatic actuators and are used to automatically open and close the product flow to discharge material to downstream equipment.
In this design, the butterfly valve is sandwiched between two flanges. Rubber sealing at both faces of the valve provides a tight seal between the flanges and the wafer butterfly valve.
One side of the valve has a bolted flange connection, while the other side features a built-in short pipe designed for fixing a flexible sleeve.
These valves have bolted flange connections on both sides, making them suitable for installation on silos, hoppers, screw feeders, and similar applications.
Bulk tanker trucks or open trucks can be filled with powdered materials delivered within FIBC bags. These systems generally consist of bulk bag discharging station, mechanical or pneumatic conveyor and loading bellow. Big bag discharge station transfers the bulk solid from big bag to conveying system. Conveying system transfers it to truck loading area. And loading bellow is used to fill tanker truck without any dust emission. Since truck loading operations are done within limited time, high capacity big bag discharge systems and bulk material conveying systems are used. For short distances, screw conveyors are preferred to transfer material from big bag discharge station to truck loading chute. For long conveying distances, pneumatic conveying systems provide better service. There may exist a storage hopper or silo above bulk truck loading bellow to compensate material flow between inlet and outlet. Bulk bag discharge and truck filling systems have automatic control system that monitors product level in truck and operates all equipment accordingly. Optional weighing system can be added to measure the amount of material that is filled to truck.
Big bag discharge systems can deliver dry bulk solids in powder and granular form to weighing and batching systems. The loading hopper of the weighing system should remain full during dosing and batching. Big bag discharge systems can monitor the product level in the loading hopper and maintain a constant level automatically. Depending on the dosing speed and conveying distance, mechanical conveying systems or pneumatic loading systems may be used. Dust collectors can be employed to prevent dust emissions during hopper loading, especially for materials with high dust content.
Dry bulk packaging systems are used to fill powdered or granular materials into bags, drums, jars, sacks, etc. Bulk materials delivered in big bags must be transferred to packaging machines without interruption. The loading hopper of the packaging system should remain full during the filling and packaging process. Big bag discharge systems can monitor the product level in the loading hopper and maintain a constant level automatically. Depending on the packaging speed, mechanical conveying systems or pneumatic loading systems can be selected. Dust collectors can be used to prevent dust emissions during hopper loading, especially for materials with high dust content.
Mixer automation systems are used to mix dry bulk solids according to specific recipes. Raw materials delivered in FIBC bags can be transferred to mixing units through a combination of conveying equipment and bulk bag discharge systems. Depending on the type of application, pneumatic conveying or mechanical feeding systems can be used to fill mixers. Big bag discharge stations can be manufactured with built-in dosing systems. The amount of raw material to be loaded into the mixer is automatically controlled with the help of a weighing and dosing system. Dust collectors can be used to prevent dust emissions during the mixer filling process.
Bulk material stored in big bags can be automatically filled into small bags. Big bag discharge systems come with optional built-in bag filling units. For low filling capacities, these units are installed below the big bag discharge hopper, providing a practical and cost-effective solution. Both big bag discharging and bag filling operations can be handled by a single, compact system. For higher bag filling needs, bag filling machines are installed near the bulk bag discharge stations. Pneumatic conveying systems or mechanical conveyors can be used to transfer bulk material from the FIBC bag discharge station to the bag or sack filling system.
Mechanical conveyors can be used for silo loading from big bag discharge stations. Screw feeders, bucket elevators, rotary valves, or chain conveyors are connected to big bag discharge stations to fill silos. The selection of conveying equipment directly depends on the conveying distance, height, transferred material, and capacity. Bucket elevators are preferred for high silos, while screw feeders are preferred for shorter silos and short distances. The big bag discharge system can be installed on top of the silo for faster filling. In this case, rotary valves or butterfly valves are better choices as they provide simple flow control. Dust collection systems may be required depending on the dust content of the bulk solid. During silo loading, air content in the silo escapes to the atmosphere and carries some dust along with it. Vacuum fans and jet filters in dust collectors prevent dust emissions into the environment. The collected dust is sent back to the silo, thus preventing product loss.
Pneumatic conveying systems installed after bulk bag discharge units transfer bulk material through conveying pipelines to fill silos. This configuration is useful in applications where high transfer rates and long conveying distances are needed. In production lines where raw materials are stored in warehouses far from storage silos, bulk bag discharge stations can be installed close to the warehouses, and pneumatic conveying systems are used to fill silos from long distances. This design reduces the need for forklifts and cranes for bulk material transfer on the production site and increases overall efficiency.
Pneumatic conveying systems used for silo loading utilize blower pumps or compressors. Motor power, pipeline diameter, and equipment selection depend on the type of bulk material, transfer distance, silo height, and transfer capacity. Level sensors, jet filters, and other equipment are installed on storage silos to ensure the proper operation of the silo filling system.
Pneumatic conveying systems installed after bag dump units transfer bulk material through pipelines to fill silos. This configuration is ideal for applications requiring high transfer rates and long conveying distances. In production lines where raw materials are stored in warehouses far from storage silos, bag dump stations can be installed close to warehouses, allowing pneumatic conveying systems to transport materials over long distances. This design reduces the excessive use of forklifts and cranes for bulk material transfer within the production site, improving overall efficiency.
Pneumatic transfer systems used for silo loading utilize blower pumps or compressors. Motor power, pipeline diameter, and equipment selection depend on factors such as the type of bulk material, transfer distance, silo height, and transfer capacity. Level sensors, jet filters, and other equipment are installed on storage silos to ensure the proper operation of the silo filling system.
Mechanical conveyors can be used for silo loading from bag dump stations. In this configuration, screw feeders, bucket elevators, rotary valves, or chain conveyors are connected to bag dump stations to fill silos. The selection of conveying equipment depends on factors such as conveying distance, height, material properties, and capacity. Bucket elevators are preferred for high silos, while screw feeders are ideal for shorter silos and short distances. Bag dump systems can be installed on top of the silo for faster filling. In such cases, rotary valves or butterfly valves are better choices as they provide simple flow control.
Dust collection systems may be required depending on the dust content of the bulk solid. During silo loading, air inside the silo escapes to the atmosphere, carrying dust particles with it. Dust collectors equipped with a vacuum fan and jet filter capture airborne dust. The collected dust is returned to the silo, preventing product loss and ensuring a cleaner environment.
The inlet skirt is an optional feature designed to extend the lifespan of the flexible connector sleeve. Its upper portion is attached to the outlet port of the upstream equipment and extends down into the bin activator’s inlet port. The primary function of the inlet skirt is to serve as a protective shield, safeguarding the flexible connector seal from wear and damage.
A vibratory motor is externally mounted to the bin activator. When powered, the motor generates vibrations that facilitate a steady flow of dry bulk materials within the system. Depending on the application requirements, one or two vibratory motors can be installed externally.
To accommodate a bin activator, the cone of a silo must be shorter than usual, resulting in a wider outlet. A flange supplied with the bin activator is separately welded to the silo’s outlet, slightly above the opening, at the production site. Once installed, the vibrating bin discharger is securely bolted to the flange, ensuring a stable and reliable connection.
Special spring suspension links and an engineered polymer seal work together to create a flexible connection between a vibrating bin discharger and the equipment positioned above it.
The proper design and installation of the polyurethane seal prevent it from slipping off and ensure a secure seal, eliminating the risk of dry bulk material leakage. Additionally, the seal offers high stress resistance and long-term durability, withstanding stresses caused by motor vibrations, pressure conditions, and other operational factors.
Externally installed spring suspensions provide full resilience to the vibrations of the cone head. They ensure that the generated vibrations affect only the cone itself rather than the upstream equipment structure.
An internally tapered, conical-shaped baffle plate is positioned at the center of the bin activator’s diameter. The baffle is rigidly attached to the equipment body using structural steel components. It facilitates bulk material flow from upstream equipment by directly inducing vibrations into the material.
A secondary deflector plate reduces the weight of the bulk material in the lower portion of the bin activator by acting as a wedge beneath the material, directing it around the areas adjacent to the cone’s surface.
Polimak baffle plates are available in various configurations, including convex and cone plates, and in different angles (15°, 30°, 45°, or even 60°) depending on the flow characteristics of the handled bulk material and the specific application requirements.
