Flap Type Gravity Diverter Valves

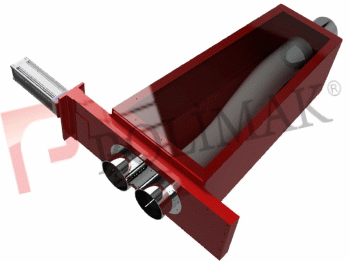

Flexible tube diverter valves are key to optimizing the performance and efficiency of pneumatic conveying systems. These valves are specifically engineered to manage and control the direction of bulk material flow, making it possible to distribute materials from a single source to multiple destinations. Their ability to handle various forms of bulk materials, including powders, pellets, flakes, and granules, makes them suitable for use across a wide range of industries such as food processing, plastics, chemicals, and pharmaceuticals.

The difference between flexible tube diverter valves and conventional diverters is found in in their method of redirecting bulk material flow. While normal diverters rely on rigid internal components or sharp directional changes, flexible tube diverters use a bendable hose or tube that gently curves between the inlet and outlet ports. This flexible connection minimizes angular
deviation, resulting in a smoother transition for both air and bulk solids. This design helps maintain consistent flow and reduces wear on the system. With no decrease in cross-sectional area, pressure drop is kept to a minimum, helping maintain consistent flow and optimizing energy usage.

Internal surfaces of the valve, along with the flexible hose, are constructed to resist material buildup and reduce the risk of contamination between different product lines. The valve’s design supports clean transitions between conveying paths, making it especially valuable in applications involving regular product transitions. With a focus on efficiency, reliability, and cost-effectiveness, flexible tube diverter valves contribute significantly to maintaining product quality and operational consistency in pneumatic conveying systems.

Design Features and Benefits of Flexible Tube Diverter Valves

• Heavy-Duty Flexible Tube: Engineered for continuous use in demanding environments, the robust flexible tube provides durable performance under harsh conditions. It provides dependable service even under continuous operation.

• Low Pressure Drop: The valve's smooth internal geometry ensures unobstructed material flow. The absence of accumulation points helps minimize pressure loss throughout the system.

• Flange Options: Available with both DIN and ANSI flange configurations for compatibility with global piping standards. This simplifies installation into new or existing systems.

• Bidirectional Operation: Functions effectively as either a diverter or converger valve. This multi-use feature adds flexibility to system design and layout.

• Dust-Free Operation: Designed to prevent dust and material leakage during conveying. Ideal for maintaining a clean and controlled processing environment.
• Food Grade Options: Components such as flexible hoses and stainless steel valve bodies meet hygienic standards of the food industry. Also suitable for use in pharmaceutical and sanitary applications.

• Actuation Options: Offers multiple modes of operation including pneumatic piston, electric drive, or manual handle. Users can choose the actuation method that best suits their system needs.

• Position Monitoring: Integrated limit switches and position indicators provide real-time valve status. This mechanism simplifies control and enhances process safety.

• Inspection Access: Optional side inspection doors allow for easy access during routine maintenance. Cleaning and inspection can be performed without dismantling the entire unit.

• Customizable Designs: Available in both 2-way and 3-way configurations to meet a wide range of material diverting needs. Custom options support specialized system layouts.

• ATEX Certification: Certified models are available for use in explosive or hazardous environments. These valves comply with ATEX standards for safety in pneumatic conveying systems.

Bulk Materials Handled by Gravity Diverter Valve

Cement

Starch

Minerals

Coffee Powder
Spices

Limestone

Copper Oxide
Salt

Sugar

Sand

Calcium Carbonate
Alumina
