Flap Type Pneumatic Conveying Diverter Valves

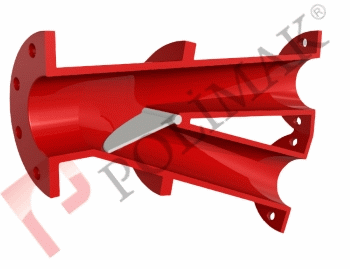

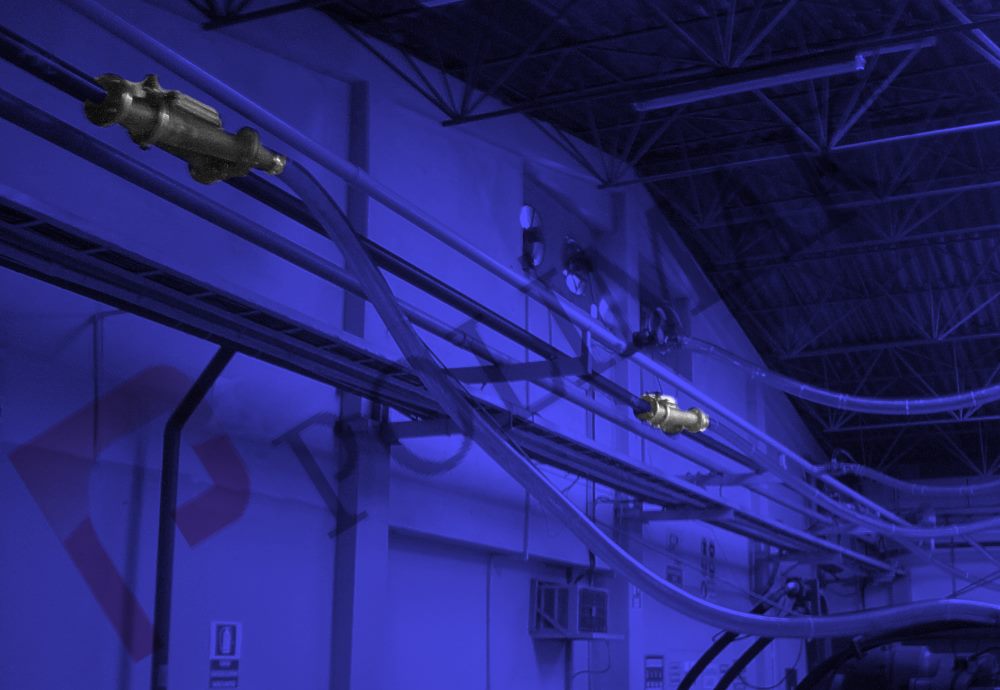

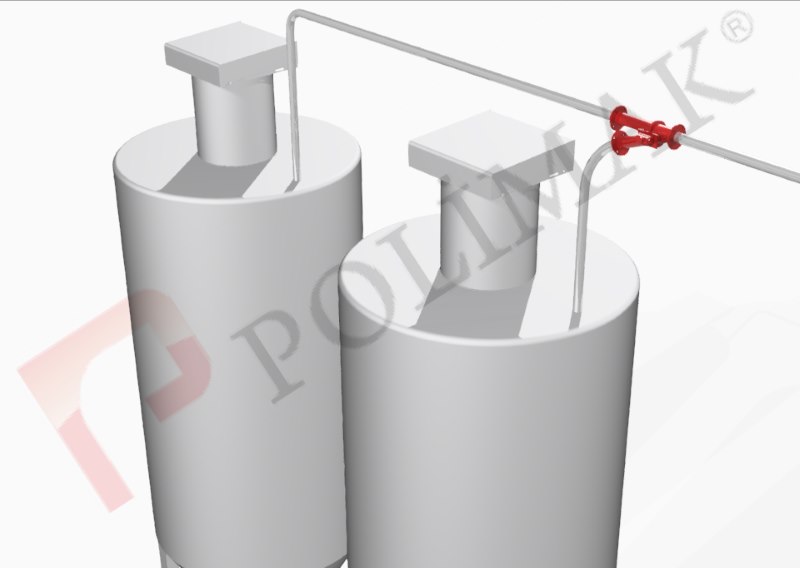

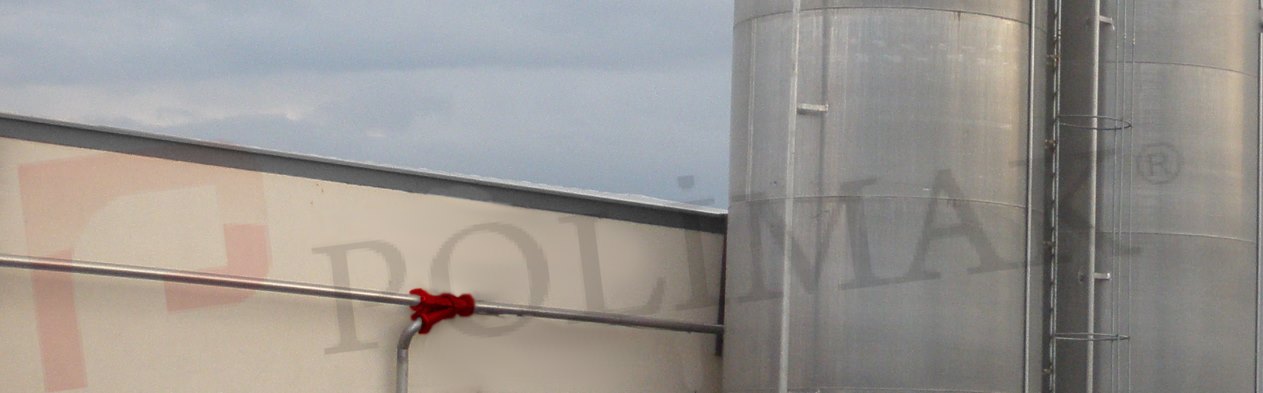

Flap-type pneumatic conveying diverter valves are widely used in regulating the flow of bulk solids within pneumatic conveying systems. These valves are specifically engineered to redirect materials such as powders, pellets, flakes, or granules from a single feed line to multiple receiving points, under pressure or vacuum conveying conditions. Their robust construction, featuring cast iron or cast aluminum housings, ensures durability and reliability in demanding industrial environments.

The design of flap-type diverter valves minimizes disruption to airflow and material movement by maintaining a small angular offset between the inlet and outlet ports. Inside the valve, a specially designed swivel flap controls the bulk flow direction. The swivel flap is constructed with a flexible polyurethane rubber sheet firmly positioned between two metal plates, providing an effective seal while resisting wear from abrasive bulk materials. This construction helps to maintain consistent sealing performance and extends the operational life of the valve.
Pressure efficiency is a key consideration in these valves, with the internal flow path engineered to avoid significant changes in cross-sectional area. This reduces pressure drops and helps maintain the energy efficiency of the conveying system. Additionally, the valve’s actuation mechanism allows it to operate seamlessly during active conveying, enabling dynamic flow control without interrupting material transport. This capability makes flap-type diverter valves ideal for applications requiring continuous operation and precise material routing.

Design Features and Benefits of Pneumatic Conveying Diverter Valves

• Heavy-Duty Construction:

The valve is built to withstand challenging industrial conditions, ensuring durable and extended performance. This robust design minimizes downtime and maintenance costs over its service life.

• Low Pressure Drop:

Smooth internal geometry with no accumulation points allows materials and air to flow freely through the valve. This design reduces pressure loss, improving overall system efficiency.

• Actuation During Material Conveyance:

The flat type diverter valve can be operated while bulk material is actively flowing, allowing for efficient process control. This capability eliminates the need to stop the system for valve operation, enhancing productivity.

• Flange Options:

Valves come equipped with standard DIN or ANSI flanges for easy integration into a wide range of piping systems. This flexibility simplifies installation and ensures compatibility with existing equipment.

• Replaceable Polyurethane and Silicone Seals:

Built-in seals prevent product leakage and contamination, maintaining process cleanliness. The seals are replaceable, facilitating maintenance and extending the operational life of the valve.

• Various Construction Materials:

Depending on application needs, valves are available in cast steel, cast aluminum, or welded steel designs. This variety allows selection based on factors like durability, weight, and environmental conditions.

• Heavy-Duty Swivel Blade with Flexible Seal:

The swivel blade features a flexible polyurethane seal to provide effective sealing and withstand wear. This design ensures reliable bulk material flow and extends the durability of the diverter valve.

• Stainless Steel Models for Food and Sanitary Use:

Special stainless steel versions are designed to meet food-grade and sanitary standards. These models prevent contamination and are suitable for hygienic environments.
• Hardox Steel Models for Abrasive Materials:

For handling abrasive bulk solids, diverter valves made from Hardox steel offer enhanced wear resistance. This material choice improves valve lifespan in challenging conditions.

• High-Temperature Gravity Discharge Models:

Certain valve models can operate at temperatures up to 200°C, making them suitable for high-temperature processesThis increases their operational versatility across a broader range of applications.

• Multiple Actuation Options:

Valves can be operated using pneumatic actuators, pneumatic pistons, electric drives, or manual handles. This versatility allows integration into various control systems and operational preferences.

• Position Monitoring Features:

Built-in limit switches and position indicators enable easy verification of valve position. This helps ensure accurate control and streamlines fault detection

• Optional Side Inspection Door:

An inspection door is available to provide easy access for maintenance and cleaning. This design helps reduce downtime and simplifies routine checks.

• Customizable Outlet Configurations:

2-way and 3-way outlet models can be custom-designed to fit specific system requirements. This flexibility allows for custom-made bulk material diverting solutions.

• ATEX Certification:

ATEX-certified versions of the diverter valves are available for use in potentially explosive environments. This certification guarantees safe operation under hazardous conditions.

Configurations of Flap Type Pneumatic Conveying Diverter Valves

• Two 30° Symmetric Legs:

This configuration features two discharge legs set at equal 30° angles from the inlet. It enables balanced and uniform bulk material transfer to both outlets, supporting smooth and efficient material flow.

• One Straight Leg, One 30° Offset Leg:

Combining a direct path with an angled discharge, this configuration allows for controlled material transfer based on process design constraints. It's ideal for systems that require flexible integration into tight or uneven plant layouts.

• One Straight Leg, Two 30° Offset Legs:

This configuration has three outlet paths, one straight and two angled, and enables bulk solid transfer to multiple outlets. It provides enhanced flexibility for distributing bulk materials to different points in a processing or storage system.

• Custom-Designed Outlets with Any Angle:

Discharge legs can be manufactured at various angles to meet specific application needs. This custom-made design ensures optimal system performance and seamless integration with existing equipment and configurations.

Bulk Materials Handled by Gravity Diverter Valve

Cement

Starch

Minerals

Coffee Powder
Spices

Limestone

Copper Oxide
Salt

Sugar

Sand

Calcium Carbonate
Alumina
