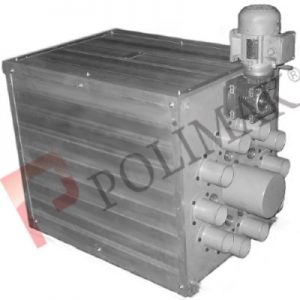

Multiport Diverter Valves

Multiport diverter valves, or multiway diverter valves, serve a key function in the efficient management of bulk material flow within pneumatic conveying systems. These valves enable the seamless distribution of materials such as powders, pellets, flakes, and granules from a single feed source to multiple destination points. Their versatility makes them indispensable in industries requiring precise directing of bulk solids through both pressure and vacuum conveying lines.

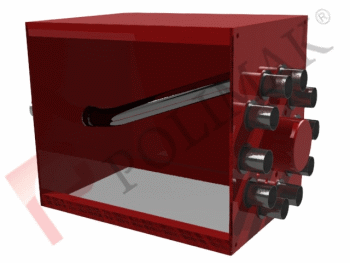

The central component of the multiport diverter valve is the rotary tube selector mechanism. This rotating distributor pipe turns around a central axis, allowing one inlet to connect with several outlet ports. Controlled by a programmable logic controller (PLC), the rotary tube can
quickly and accurately align with the chosen outlet port, ensuring a tight seal and preventing any leakage. The design minimizes angular deviation between the inlet and outlet, which enables smooth and uninterrupted airflow and bulk material transfer. Keeping a uniform cross-sectional area along the flow path minimizes pressure losses, improving overall system efficiency.

Constructed from steel piping, multiport diverter valves offer long-term durability and can withstand higher pressures and temperatures, making them ideal for handling abrasive bulk materials. Additionally, the internal surfaces and rotary selector are engineered to avoid cross-contamination, ensuring product purity when switching between different materials. This robust design, combined with precise control and minimal pressure drop, makes multiport diverter valves an essential component in pneumatic conveying systems. Reliability, efficiency, and safety are essential in these applications.

Design Features and Benefits of Flexible Multiport Diverter Valves

• Up to 20 Outlet Ports: Offers extensive flexibility in diverting materials within your system. Multiple outlet options enable custom-made configurations to meet complex process requirements.

• PLC-Controlled Rotary Tube Selector System: Enables consistent and accurate positioning to select the desired outlet port. This automation enhances precision and reduces the need for manual intervention.

• Centralized or Local Control: The valve can be operated either from a central plant automation system or directly at the valve location. This dual control capability Increases user-friendliness and supports a wide range of operating conditions.

• Heavy-Duty Use: Constructed for durability, the diverter pipe is able to work under demanding industrial conditions. It provides dependable performance for extended service life.

• Low Pressure Drop: The valve’s internal design eliminates buildup points, allowing smooth material flow. This minimizes pressure losses and supports efficient system operation.

• Flange Options: Available with both DIN and ANSI flange standards to ensure easy integration with a wide range of piping systems. This compatibility simplifies installation and maintenance.
• Two-directional Operation: Multiport diverter valves can function as either a diverter or converger valve, offering versatile options for directing material flow. This flexibility supports a broad range of process configurations.

• Dust-Free Operation: Designed to reduce material leakage and prevent dust emissions. This helps maintain a clean and safe working environment.

• Food and Sanitary Applications: Stainless steel components, including the rotary tube and valve body, are available to meet food-grade requirements. This makes the valve suitable for sanitary processing environments.

• Position Monitoring: Equipped with integrated limit switches and position indicators for real-time tracking of valve status. This mechanism simplifies control and troubleshooting.

• Inspection Access: An optional side inspection door allows easy access for routine cleaning and maintenance. This reduces downtime and enhances operational reliability.

• ATEX Certification: Certified models comply with ATEX standards for safe use in explosive and hazardous atmospheres. This ensures compliance with strict safety regulations.

• High Temperature Resistance: Specially designed multiport diverter valves can operate reliably at temperatures up to 200°C. This makes them suitable for high-heat industrial applications.

Bulk Materials Handled by Gravity Diverter Valve

Cement

Starch

Minerals

Coffee Powder
Spices

Limestone

Copper Oxide
Salt

Sugar

Sand

Calcium Carbonate
Alumina
