Pinch Valves

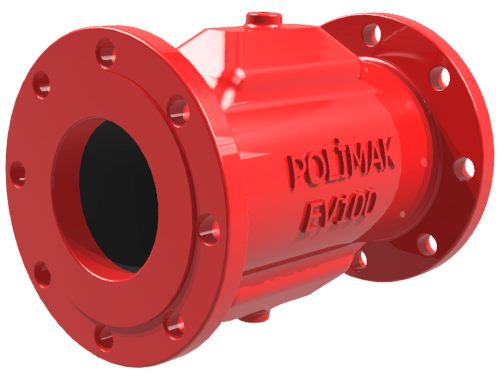

Pinch valves are widely used in pneumatic conveying systems for the efficient handling of bulk materials such as powders, pellets, flakes, and granules. These valves serves to efficiently control the flow of materials, offering a reliable means to start or stop the material flow within the conveying line. Their configuration makes them a reliable choice for handling bulk solids without risking contamination or product degradation.

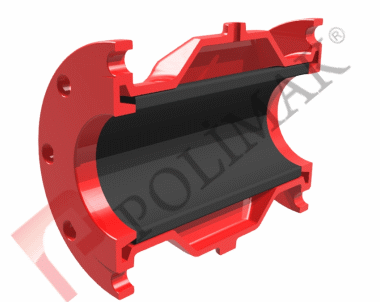

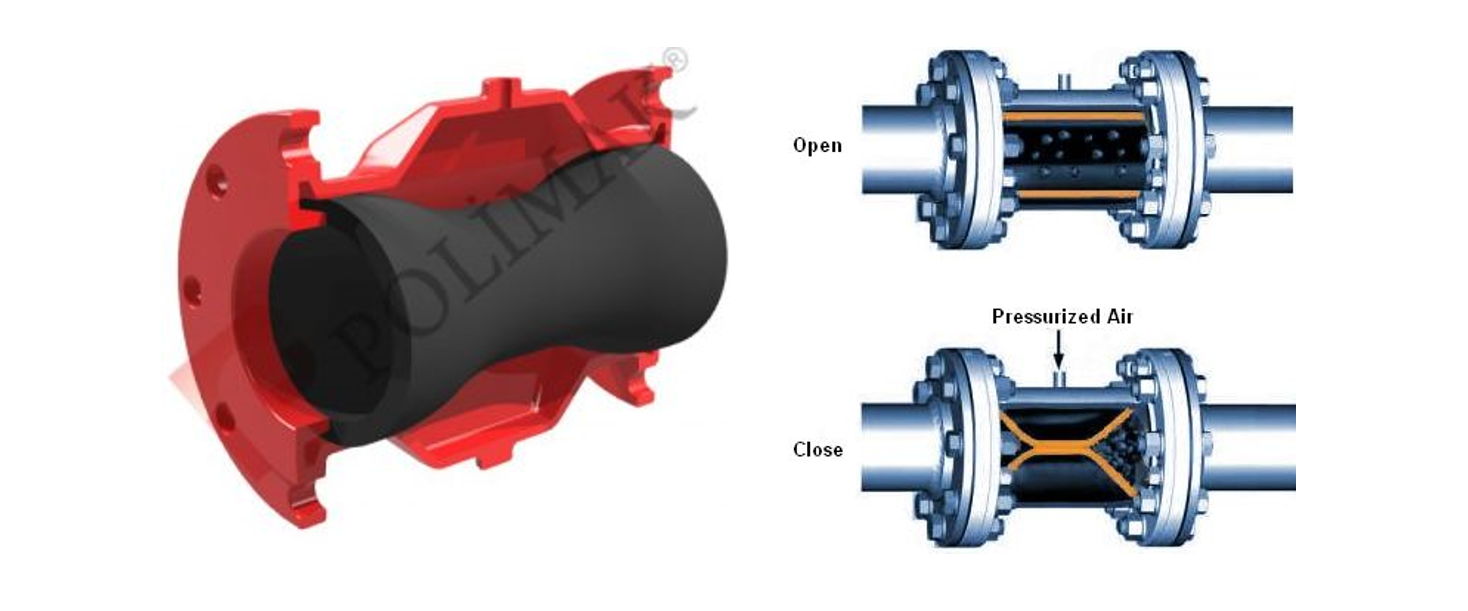

The operation of a pinch valve relies on a flexible sleeve that operates as the sealing part. When air pressure is applied to the sleeve, it contracts, effectively pinching the flow path shut and preventing any material from passing through. This tight seal ensures that the product flow is
completely stopped when the valve is closed. On the other hand, when the valve is opened, the sleeve retracts fully, allowing bulk materials to pass freely through the valve’s full flow channel without restriction. This design is key to reducing mechanical stress on the valve components and the conveyed materials.

One key benefit of pinch valves is their ability to keep a uniform cross-sectional area, resulting in minimal pressure loss during operation.. This consistent flow path ensures smooth material flow and improves overall system efficiency. Additionally, the absence of complex internal parts reduces maintenance requirements and lowers the risk of product contamination, making pinch valves an ideal choice for industries such as pharmaceuticals, food processing, and chemicals.

Design Features and Benefits of Flexible Pinch Valves

• Low Profile:

The pinch valve is designed with a short flange-to-flange length, making it ideal for installations where space is limited. This compact design also simplifies integrating into existing systems without major modifications.

• Smooth Material Flow:

When the valve is in the open position, its smooth and clear internal geometry allows bulk materials to pass through freely. The absence of corners or accumulation points ensures consistent flow without buildup or blockages.

• No Pressure Loss:

In the open position, the valve allows full flow through its entire diameter, ensuring full flow capacity. This design eliminates pressure drop across the valve, resulting in improved efficiency and reduced energy consumption.
• Operates During Discharge:

The pinch valve can be actuated even while material is discharging under gravity, offering high operational flexibility. This feature ensures smooth, uninterrupted system function without needing to stop material flow.

• Easy Sleeve Replacement:

The flexible sleeve is designed for simple removal and installation, making replacement fast and easy. This special design reduces downtime during maintenance and keeps operational costs low.

• Durable Sleeve:

Constructed from wear-resistant materials, the flexible sleeve withstands demanding conditions and abrasive products. Its robust design ensures long-term performance and extended service life even in harsh applications.

Pinch Valve Application Examples

• Pinch Valves Used in Bulk Material Storage Silos: Pinch valves are commonly installed at the loading points of silo filling lines to regulate the flow of bulk solids being transferred. They provide precise control over the bulk material delivered from bulk trucks, preventing unwanted problems like overfilling or spillage. This configuration not only helps maintain efficient and safe filling operations but also protects the integrity of the stored product.

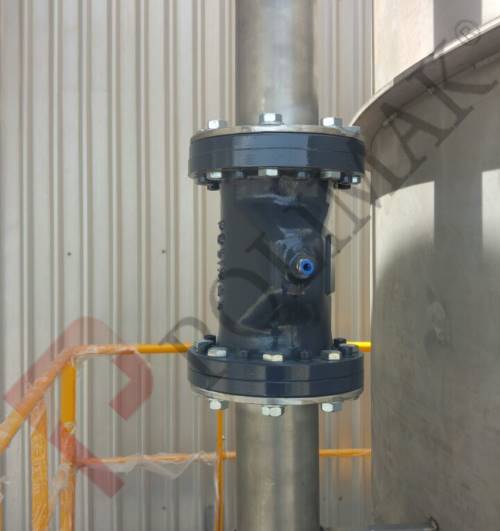

• Pneumatic Conveying Pipelines with Integrated Pinch Valves: Pinch valves are widely used in pneumatic conveying systems to control the flow of bulk materials through various pipeline sections. Their ability to fully stop or allow bulk material flow ensures that bulk solids move efficiently through designated routes without interruption. This ability to precise control contributes to optimized system performance and reduces the risk of blockages or material loss.

Bulk Materials Handled by Gravity Diverter Valve

Cement

Starch

Minerals

Coffee Powder
Spices

Limestone

Copper Oxide
Salt

Sugar

Sand

Calcium Carbonate
Alumina
