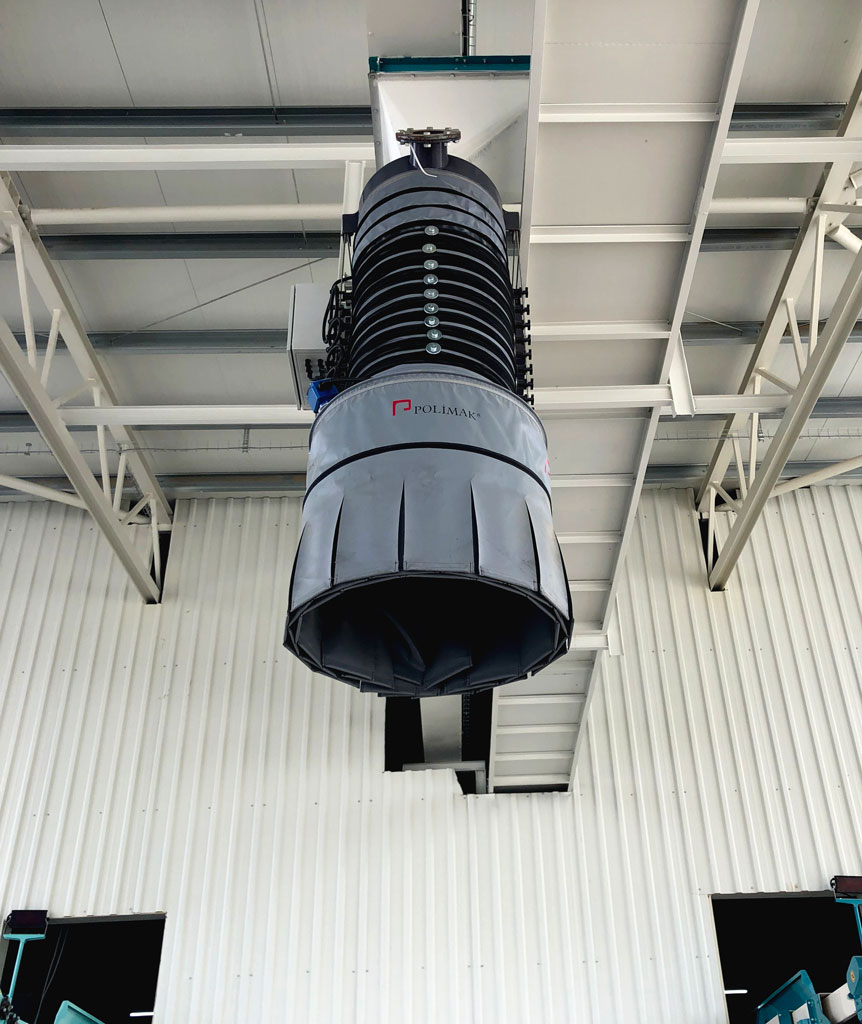

Loading Bellow

Bulk material loading bellows are critical components used in the controlled outloading of powdered and granular bulk solids across various industrial operations. These systems are designed to ensure safe, dust-free transfer of bulk solids into trucks, tankers, ships, and stockpiles, maintaining environmental safety and workplace cleanliness. Drawing on years of experience in bulk handling solutions, Polimak provides a comprehensive range of loading solutions tailored to meet the specific needs of each application, ensuring efficient and reliable material flow throughout the loading process.
There are several ways of integrating loading bellows into a bulk material handling system. Loading bellows are generally mounted under silos or hoppers or installed at the end of conveyors such as screw feeders, elevators, or pneumatic conveying systems. Bulk materials flowing from the upper side are efficiently transferred to the downstream vehicle, ship, or stockpile without any dust emission or product loss.

How Do Loading Bellows Work ?

• The main function of a loading bellow system is to transfer powdered or granular bulk materials vertically using gravity, ensuring efficient and controlled discharge.

• Dust generated during the loading process is contained within the enclosed column, maintaining a clean and safe environment.

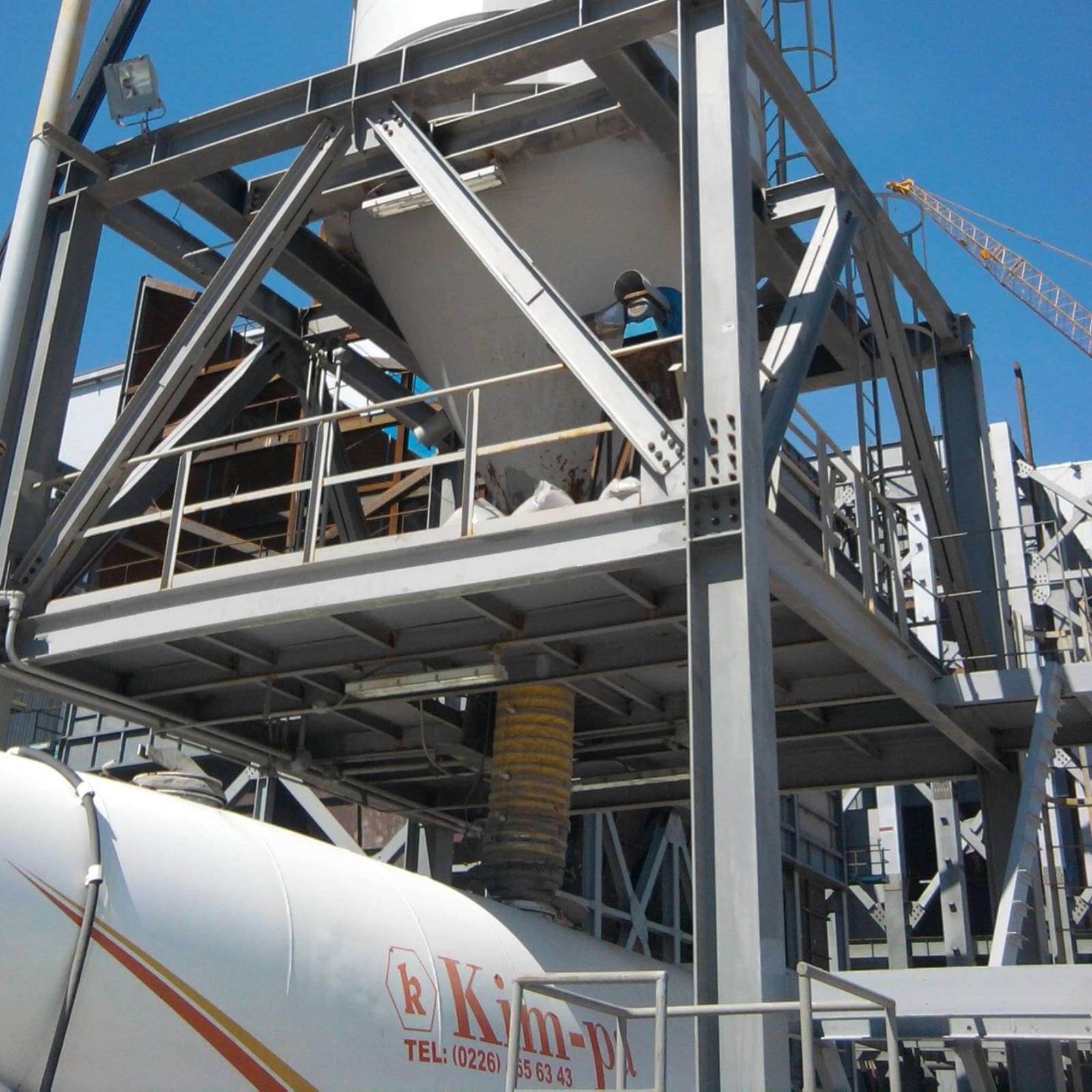

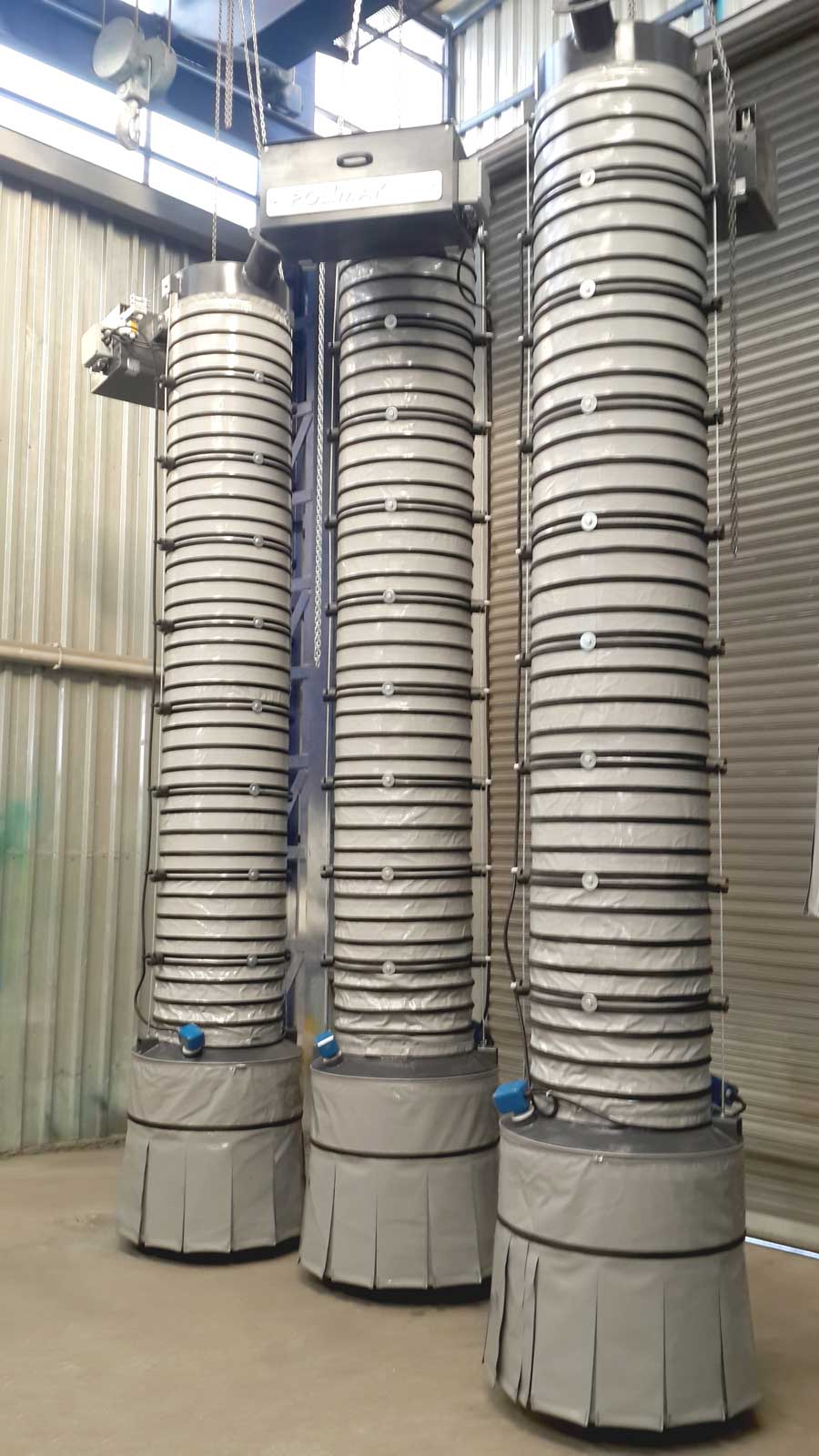

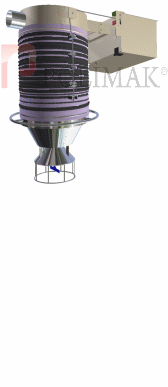

• The flexible structure of the bellows adjusts to the varying distance between the discharge point and the loading area, such as trucks, tanks, or stockpiles.

• A mechanical winch system allows the bellows to extend or retract as needed, preserving a sealed flow path and enabling high-capacity loading.

 Depending on application requirements, the system can include abrasion-resistant cones, integrated dust collectors, and specialized bellow designs for enhanced performance. Abrasion-resistant cones help protect the inner surface of the bellows from wear caused by fast-flowing or abrasive materials, while integrated dust collectors capture airborne particles during loading to ensure a cleaner and safer working environment.

Open Loading

Discover

Closed Loading

Discover

Bulk Materials Handled by Loading Bellows

Starch

Minerals

Coffee Powder
Spices

Limestone

Copper Oxide
Cement

Salt

Sugar

Sand

Calcium Carbonate
Alumina


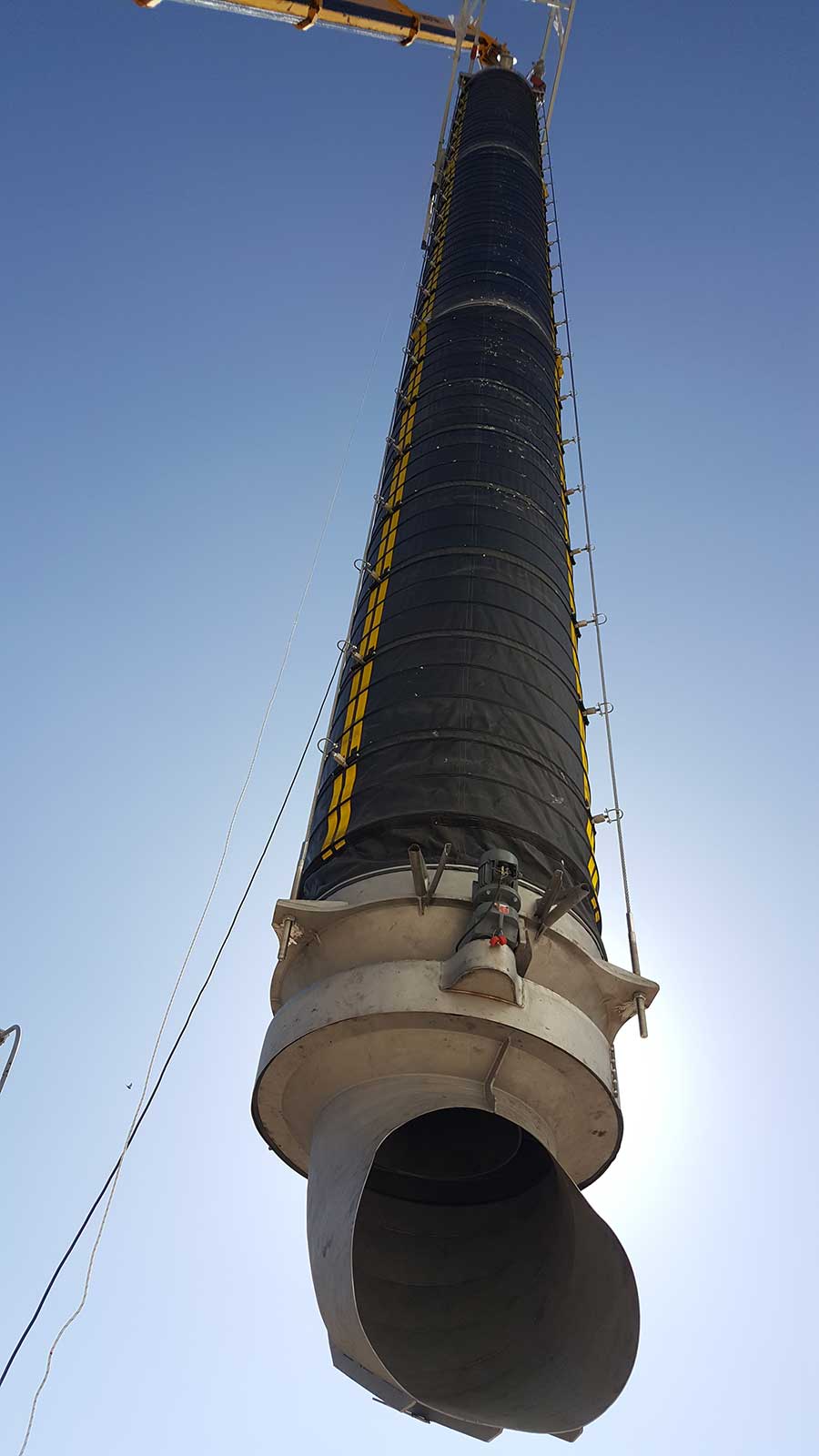

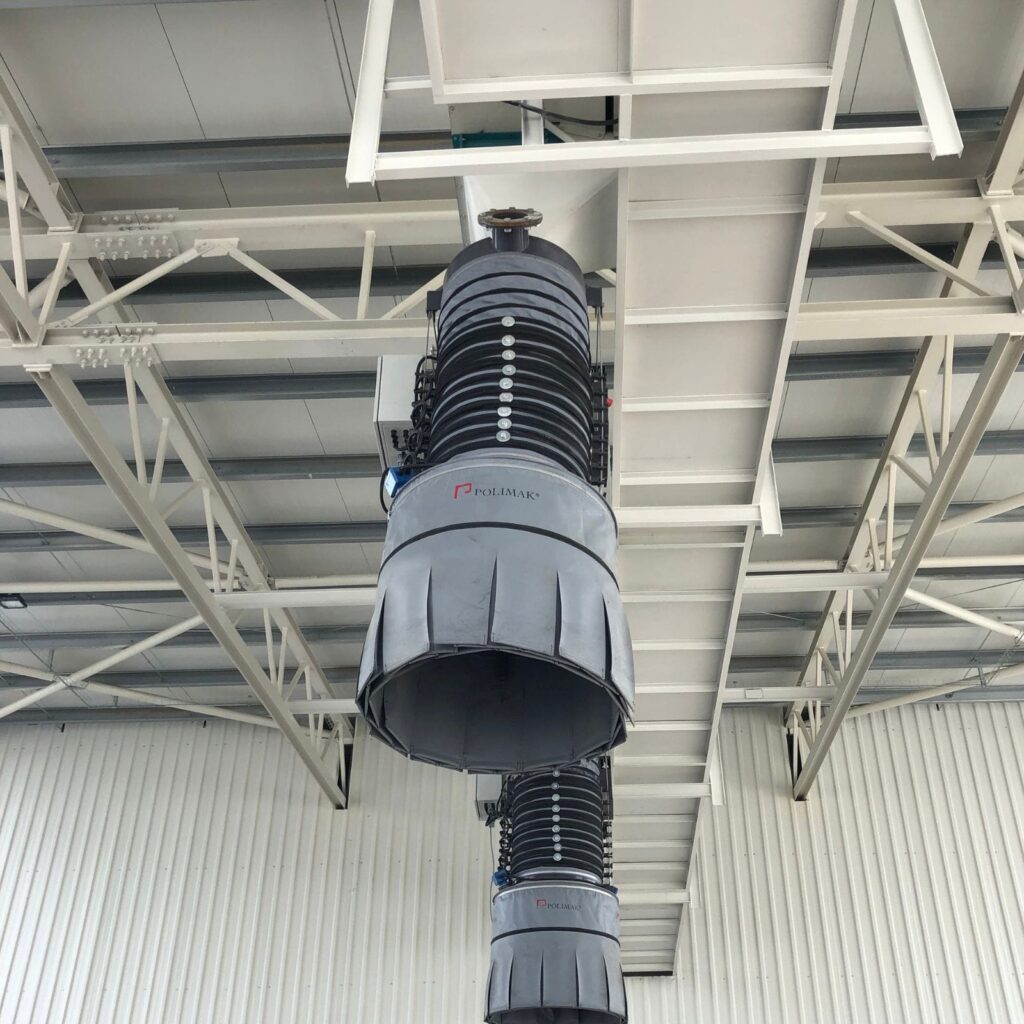

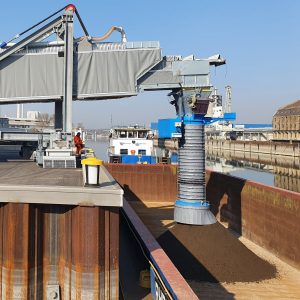

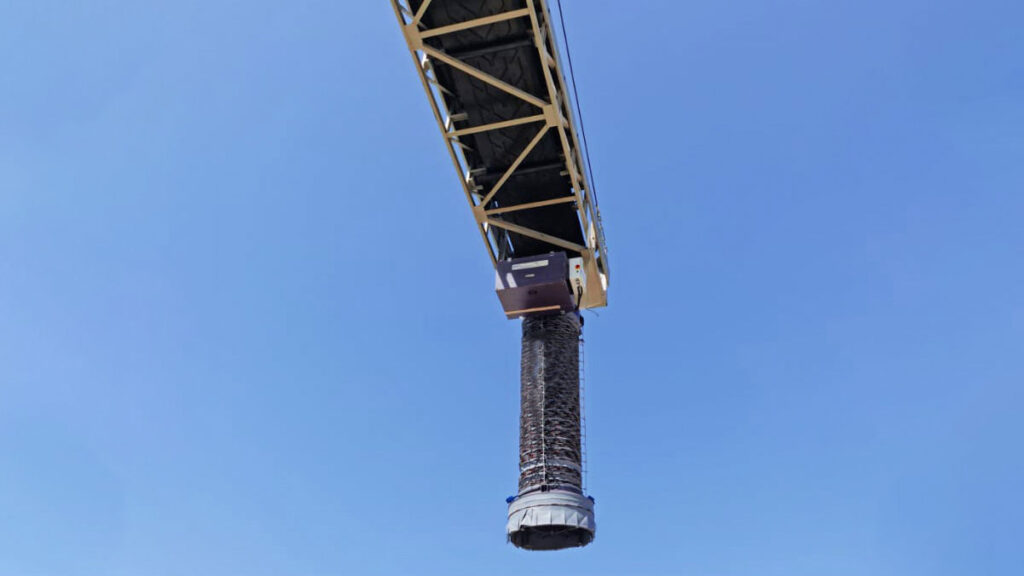

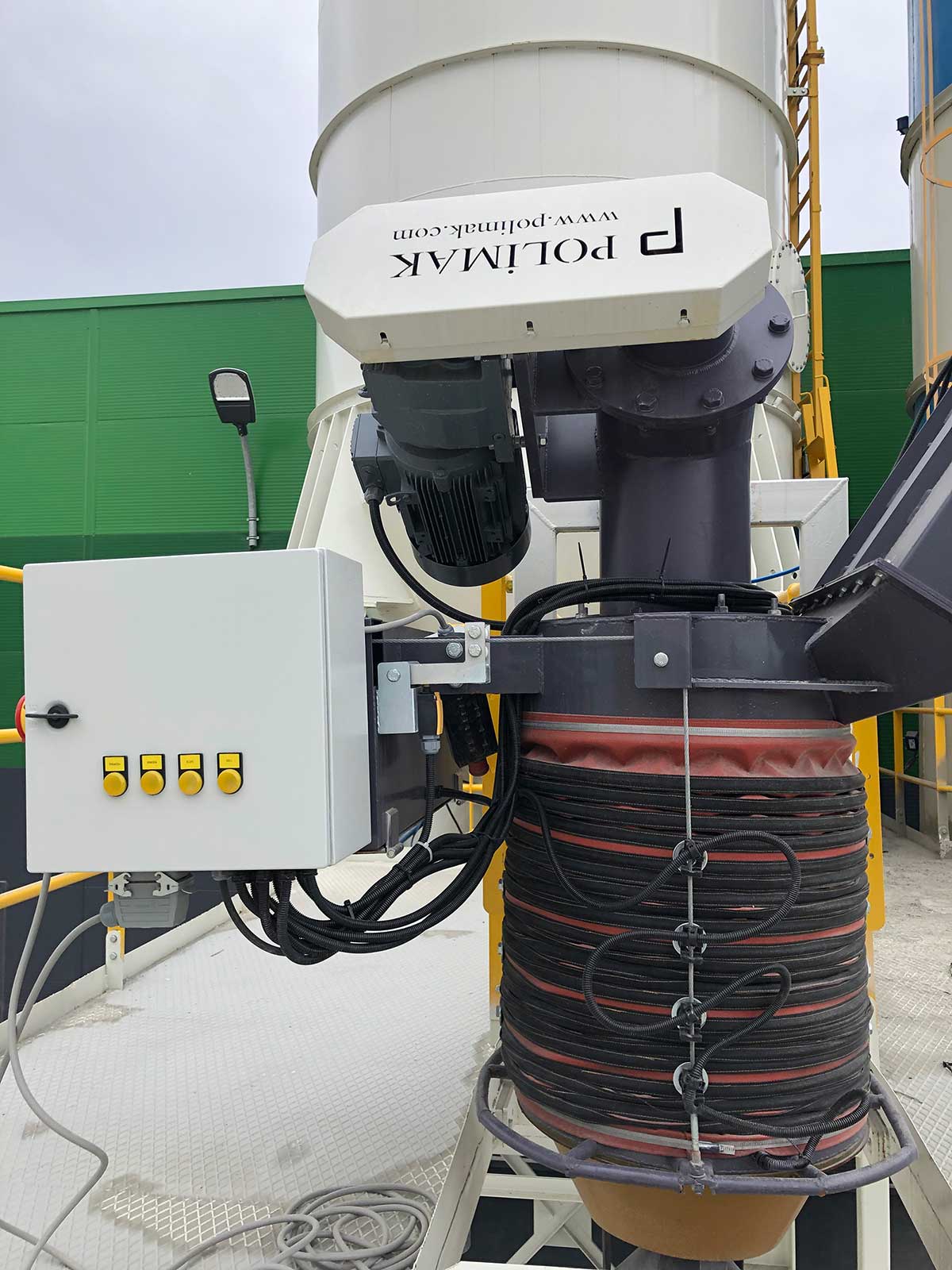

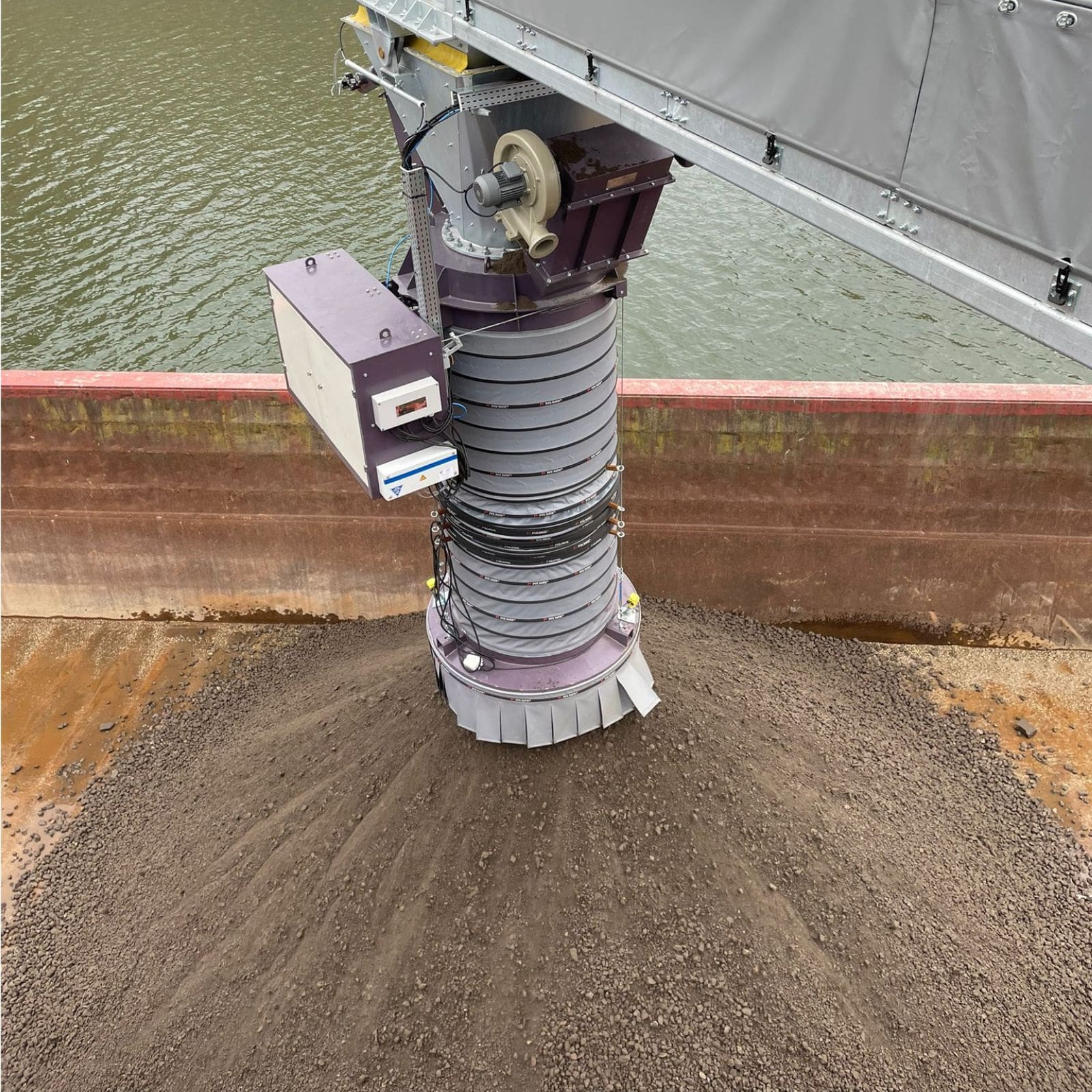

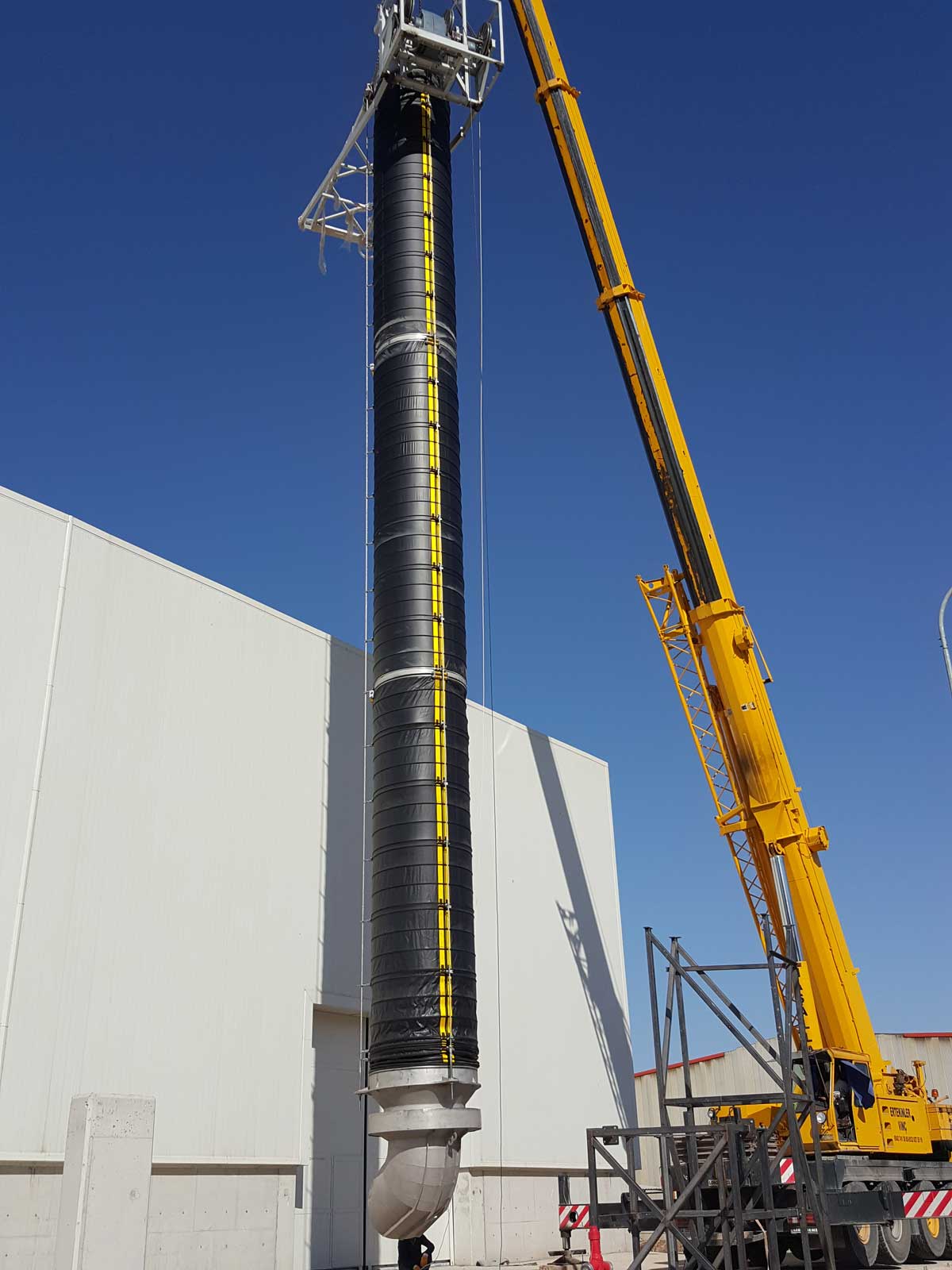

Image Gallery

Advantages & Key Benefits of Loading Bellows

• Dust-Free Loading: The system ensures that bulk materials are loaded without releasing dust into the environment, maintaining cleanliness throughout the process.

• Clean Working Environment: Loading bellows prevent dust pollution, helping to protect both plant personnel and the surrounding environment while supporting safety and regulatory compliance.

• Versatile Application: Loading bellows are compatible with a variety of bulk solids conveying and storage systems, making them adaptable to many industrial configurations.

• Multiple Loading Sources: They can be used to load materials from different equipment such as silos, hoppers, screw feeders, and conveyors, offering operational flexibility.

• Wide Range of Models: An extensive selection of bellows models and configurations is available to suit diverse material types, capacities, and application requirements.

• Automatic Retraction: Equipped with an auto-raise feature, the loading bellow retracts automatically once loading is complete, saving operator time and effort.

• No Spillage or Waste: The enclosed design ensures that materials are transferred cleanly without spillage, minimizing product loss and maintaining efficiency.

• High-Temperature Handling: We can produce models capable of handling materials with temperatures up to 300°C, extending their application in processes involving heated bulk solids..

• Food-Grade Options: Food-grade loading bellows are also available, made with materials and designs that meet strict hygiene and safety standards for the food industry.

• Simple Operation: The system is user-friendly, allowing operators to manage loading easily without complicated procedures or extensive training.

• Easy Maintenance: Designed for durability and accessibility, loading bellows require minimal maintenance, reducing downtime and operational costs.
