Closed vehicle loading bellows are used for loading tanker trucks, barges, and ships. Equipped with sealed containers, they ensure a safe and dust-free filling process.
• Sealed Discharge Design:
Polyurethane-coated discharge cones are used to tightly seal the vessel inlet, effectively eliminating dust escape during the loading process.
• Air Evacuation System:
Once the loading process begins, a built-in vacuum fan removes the air from inside the container, improving the flow rate of the material being discharged.
• Dust Collection Mechanism:
The extracted air is directed through a dust collector, where filter units collect airborne dust. The cleaned air and particles are returned into the tanker using pulse jet valves controlled automatically.
• Level Monitoring:
A sensor positioned at the bottom of the loading bellow monitors the rising material level inside the tanker and sends a stop signal once the container is full.
• Flow Completion Delay:
After the filling is complete, the system briefly pauses to allow the remaining product to settle and any residual dust to be captured through the dust collector.
• Automatic Retraction:
After the loading process is finished, the bellow automatically retracts to its top standby position, preparing the system for the next operation.
• Weighing System Integration:
For applications requiring accurate loading amounts, truck weighing scales can be connected to the loading system.
• Automatic Flow Control via Weighing Signal:
Once the target weight is reached, the scale sends a signal to the control panel, which automatically stops the product flow.

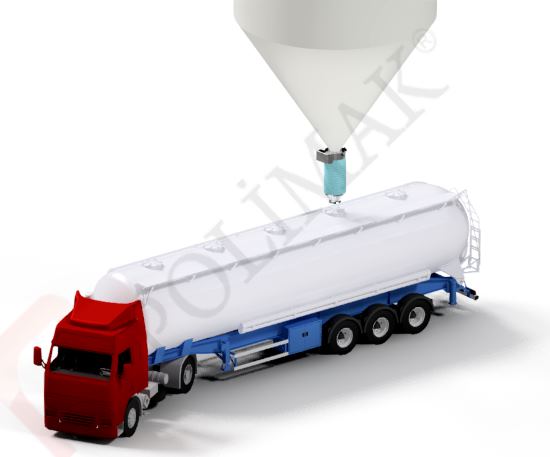

Tanker Loading Bellows
Bulk tanker loading bellows provide a sealed and efficient solution for loading powdered and granular bulk solids into tanker trucks without generating dust. These systems ensure a smooth and controlled transfer of free-flowing dry materials, including powders and granules, from various sources such as silos, hoppers, containers, and screw feeders directly into tanker trucks. Designed to maintain product integrity and minimize environmental impact, tanker loading bellows are essential components in industries handling bulk solids that require clean and safe loading processes.
Open Vehicle and Stockpile Loading Bellows
• Application Areas:
Open vehicle and stockpile loading bellows are used for loading bulk materials into open spaces such as flatbed trucks, ships, and stockpiles.
• Flexible Dust Containment:
A flexible dust skirt located at the bottom of the loading bellow provides a sealed containment area to prevent dust from escaping during discharge.
• Dust Collection System:
Any fugitive dust generated during loading is captured by a vacuum dust collection system, preventing dust from spreading to the environment.
• Dust Recycling:
Captured dust is returned back to the product stream, minimizing material loss and waste during loading.
• Level Monitoring:
Built-in level sensors monitor the product level below the loading bellow to ensure smooth operation and safety.
• Automated Retraction:
As the product level rises, the loading bellow automatically retracts upwards, maintaining clearance for continuous and efficient discharge.
• Discharge Valve Closure:
Once the loading process is complete, the product discharge valve positioned above the bellow closes to stop material flow.
• Flow Completion Delay:
The system waits for a few seconds after closing the valve to allow residual product flow to finish and to collect remaining dust through the dust collector.
• Automatic Standby Position:
After the loading process is fully completed, the bellow automatically retracts to its top standby position, ready for the next loading cycle.

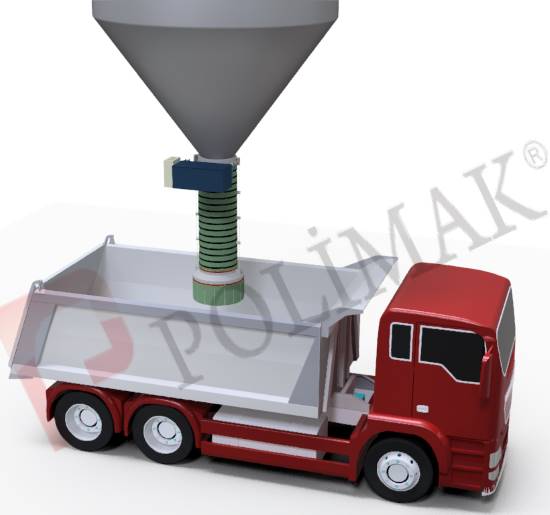

Open Truck Loading Bellows
Open truck loading bellows offer a reliable and dust-free solution for loading powdered and granular bulk solids into flatbed open trucks. These systems enable the efficient and controlled transfer of free-flowing dry bulk materials, such as powders and granules, from various sources including silos, hoppers, containers, and screw feeders directly into open trucks.
Designed with a built-in flexible dust skirt, the bellows effectively contain dust within the loading zone, preventing emissions from escaping into the surrounding environment.
Open truck loading bellows are widely used in industries where environmental safety and product integrity are critical, ensuring clean, efficient, and safe loading operations in open-air settings.

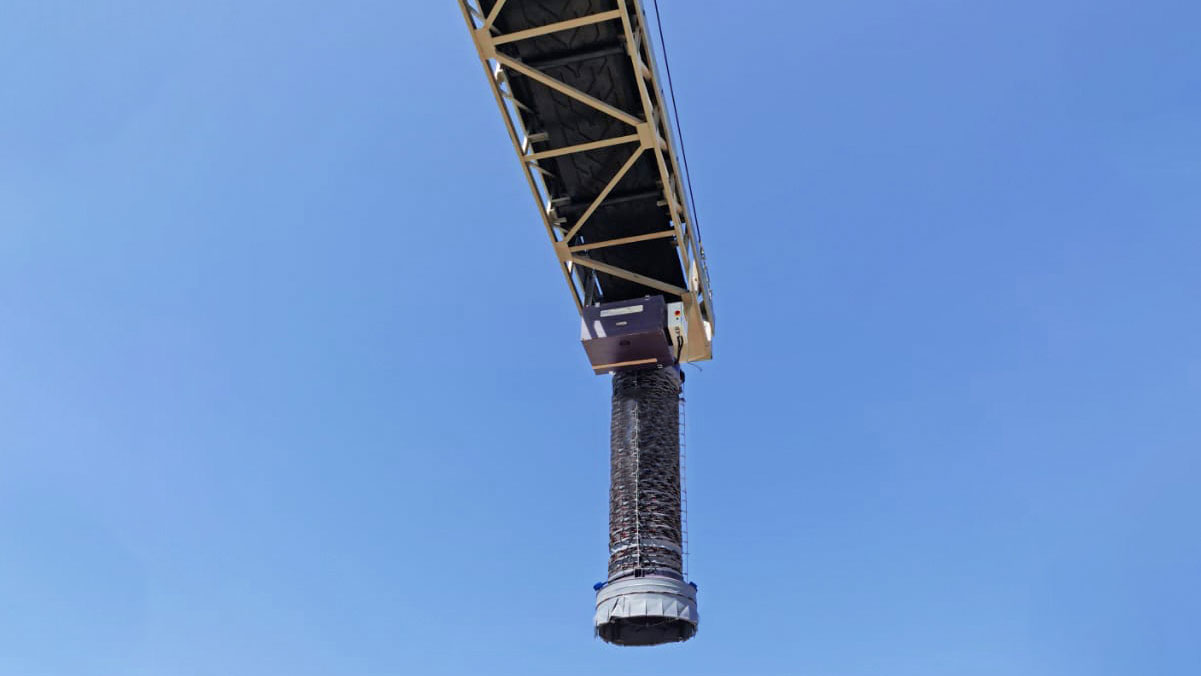

Ship Loading Bellows
Ship loading bellows provide an effective and dust-free solution for loading powdered and granular bulk solids into dry bulk carrier ships. These systems enable the efficient and controlled transfer of free-flowing dry bulk materials, including powders and granules, from a variety of sources such as silos, hoppers, containers, and screw feeders directly into ships.
Equipped with a built-in flexible dust skirt, the loading bellows contain dust within the immediate loading area, preventing emissions from escaping into the port environment. Ship loading bellows are essential in industries focused on bulk material transport, helping to maintain product quality while ensuring compliance with environmental regulations and minimizing pollution during the ship loading process.

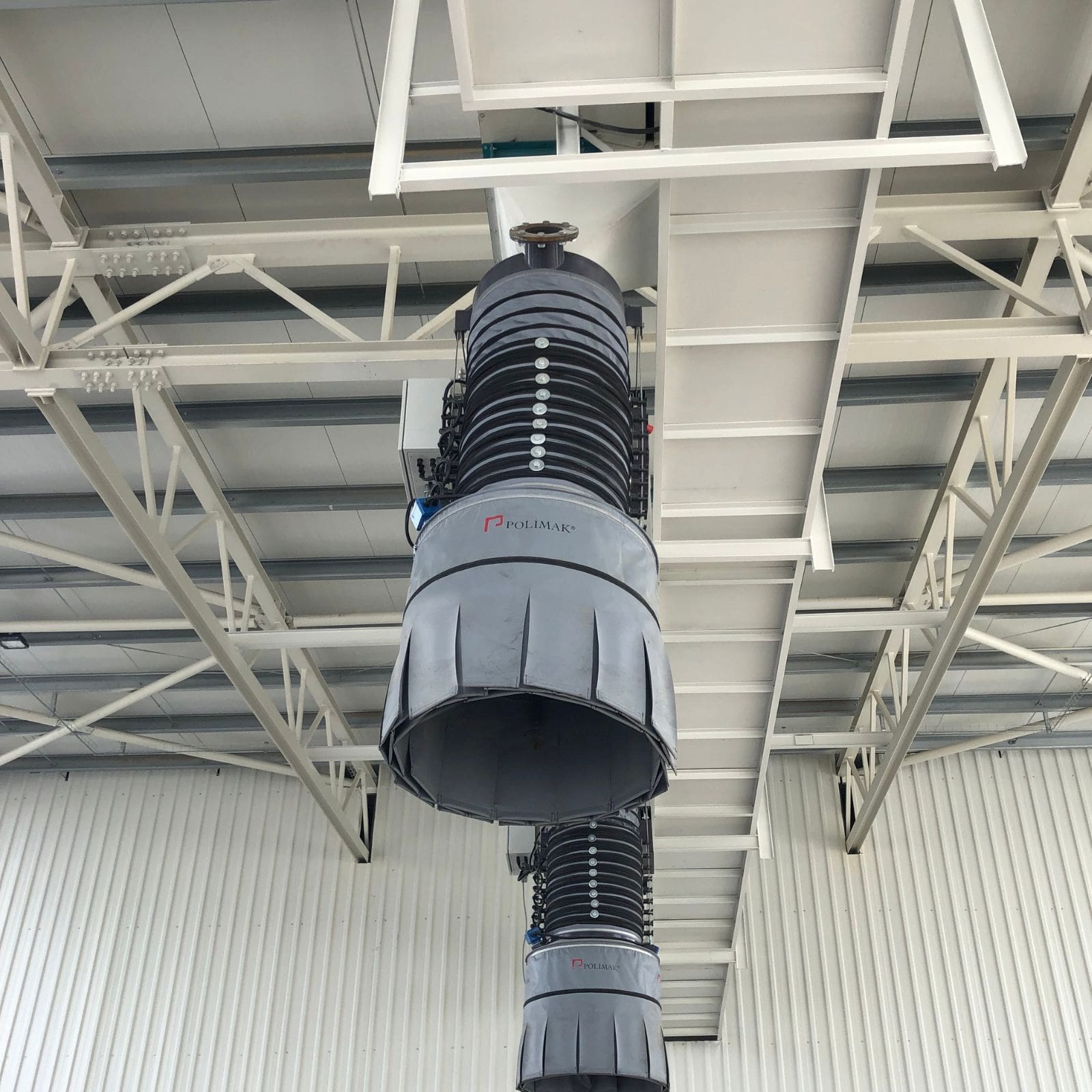

Stockpile Loading Bellows
Stockpile loading bellows offer a reliable and dust-free method for discharging powdered and granular bulk solids onto stockpiles. These systems enable the efficient and controlled transfer of free-flowing dry materials, such as powders and granules, from silos, hoppers, containers, and screw feeders directly to the designated stockpile area.
Equipped with an integrated flexible dust skirt, the bellows effectively contain dust within the loading zone, minimizing environmental impact and maintaining a clean worksite. Stockpile loading bellows play a critical role in bulk material handling operations, ensuring efficient, safe, and environmentally responsible stockpile management.

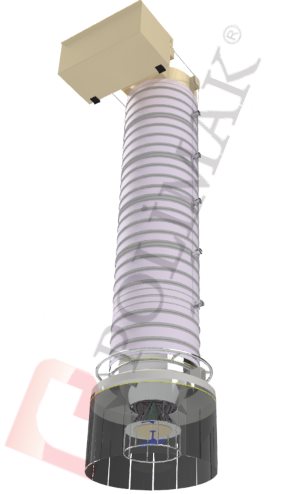

Combined Loading Bellows for Tanker Trucks and Open Trucks
Combined telescopic loading bellows provide a versatile and dust-free solution for loading powdered and granular bulk solids into both tanker trucks with closed containers and flatbed open trucks. These systems ensure efficient and controlled transfer of free-flowing dry bulk materials, such as powders and granules, from silos, hoppers, containers, and screw feeders directly to various truck types.
The design is equipped with both a flexible dust skirt and a polyurethane-coated discharge cone within a single loading bellow, effectively containing dust emissions and ensuring environmental safety during the loading process. This dual-functionality makes combined loading bellows ideal for facilities handling a mixed fleet of vehicles, enabling seamless transitions between open and closed loading operations without the need for multiple loading systems.
Combined telescopic loading bellows are particularly useful in industries with diverse logistics requirements, such as cement plants, chemical processing, and agricultural bulk handling.
