Polimak offers a wide range of loading bellows configurations tailored to meet specific process requirements and the unique physical properties of bulk materials. Selecting the appropriate configuration is essential to ensure efficient material transfer, minimize product loss, and maintain a dust-free working environment. We design and manufacture not only single and double bellows, with or without wear cones, but also heavy-duty bellows in various configurations.

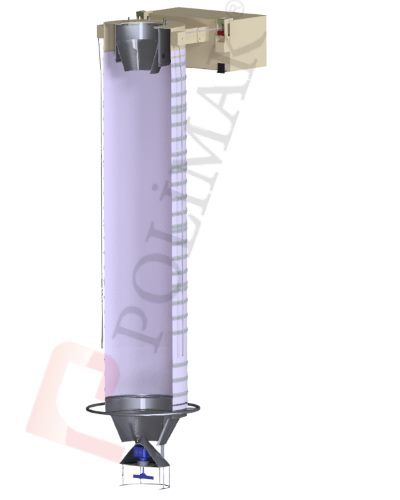

Single Outer Bellow
For applications involving granular materials that release minimal dust, single outer bellows offer a practical and cost-effective solution. They are suitable for processes where basic dust containment is sufficient, without the need for more complex multi-layered systems.
In this design, the bellow provides a confined region within the loading system, allowing the bulk material to flow smoothly downward while minimizing spillage. At the same time, any rising dust is directed upward into the same enclosed space, and it is efficiently collected by an integrated dust extraction system. This design not only helps maintain a cleaner working environment but also improves overall process efficiency and reduces product loss.

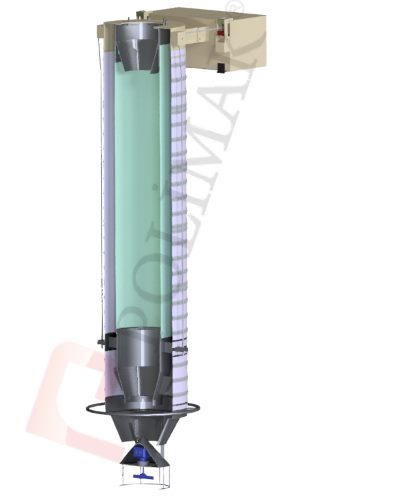

Double Bellows
This model consists of an outer bellow combined with an inner bellow, designed to optimize both product flow and dust collection. It is suitable for applications where careful handling of dust-generating materials is demanded, such as powders, fine grains, and pellets that generate higher levels of dust, providing enhanced performance and maintaining a cleaner working environment.
The bulk material flows downward smoothly through the inner bellow, while dust particles are captured and directed upward through the space between the two bellows. By physically separating these opposite flows, this design enhances product loading capacity and improves the efficiency of dust collection. The dust extraction system is connected to the space between the bellows, ensuring that collected dust is effectively removed from the loading zone. Additionally, any dust that is collected can be returned through this same region, minimizing waste and maintaining a cleaner work environment. This dual-bellow configuration provides a reliable and efficient solution for handling bulk materials with high dust content while reducing contamination and product loss.

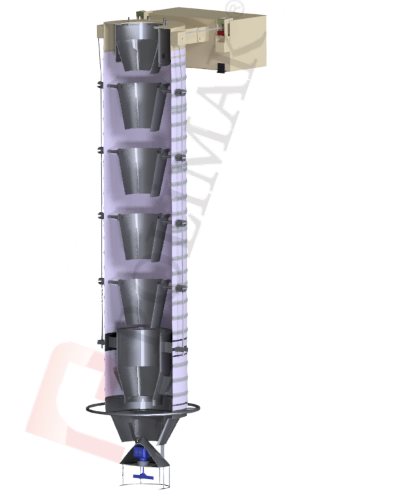

Single Outer Bellow with Internal Wear Cones
Wear cones are essential components designed to protect bellows from abrasion caused by the continuous flow of bulk solids. These cones are installed at the center axis of the loading bellow, providing a physical barrier that separates the main product flow from direct contact with the bellow fabric. Thanks to this design, the bulk material flows smoothly around the wear cone, significantly reducing wear and extending the lifespan of the bellows.
Various types of wear cones are available to meet different material properties and operational requirements.
• Carbon steel cones offer a versatile solution suitable for handling a wide range of bulk solids, providing reliable protection in standard applications.
• For more challenging environments involving highly abrasive materials, wear cones made from Hardox steel are necessary due to their exceptional hardness and durability.
• In industries dealing with food products or corrosive substances, stainless steel cones are preferred to ensure hygiene and resistance to corrosion.
• In high-temperature loading operations, wear cones act as an effective heat barrier, safeguarding the bellows from thermal damage and maintaining system integrity.
This combination of material options and protective functions makes wear cones a critical element for optimizing performance and durability in bulk material handling systems.

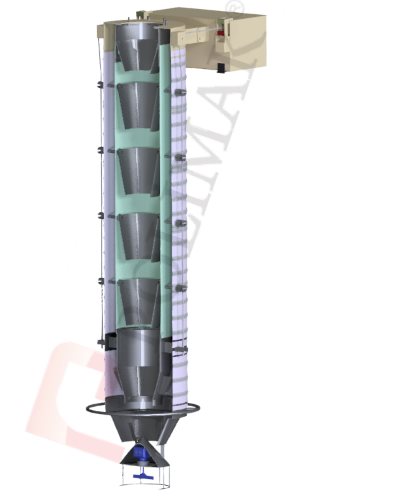

Double Bellows with Internal Wear Cones
This design brings together the advantages of Double Bellows and Single Outer Bellow with Internal Wear Cones, offering enhanced protection and improved operational efficiency.
In this configuration, inner bellows are used to cover internal wear cones, providing an extra layer of protection against abrasion caused by bulk material flow. This model not only protects the bellows from wear but also ensures efficient dust collection, helping to maintain a cleaner working environment.
During operation, the bulk material flows downward through the wear cones installed inside the inner bellow, minimizing direct contact with the bellow fabric. Meanwhile, dust is captured and directed upward through the space between the two bellows, where it can be effectively extracted. This combination allows for rapid bulk material loading while extending the service life of the bellows and maintaining high dust containment performance. Ultimately, the design is ideal for demanding applications where durability, cleanliness, and efficiency are critical.

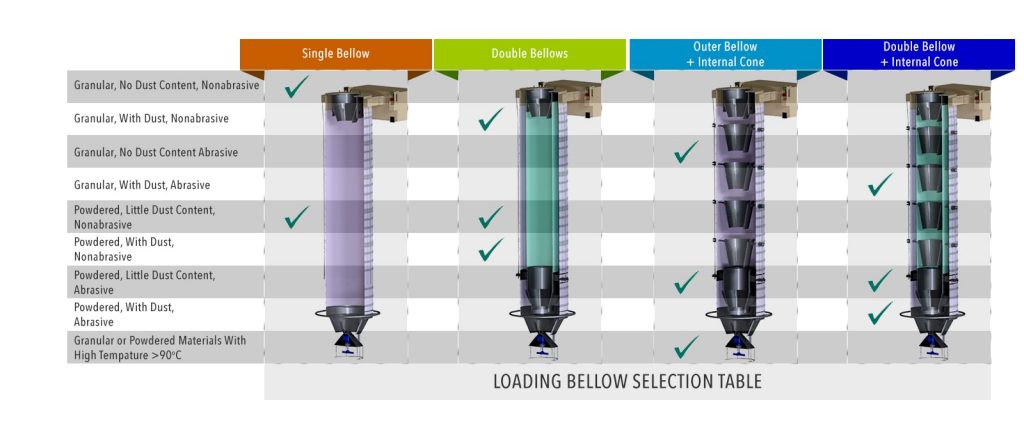

Loading Bellow Selection Chart
We offer a wide range of bellows designed to suit different process needs and material types, ensuring efficient performance and dust control. This chart guides you in selecting the optimal loading bellow configuration for diverse applications and operational requirements.
Heavy Duty Loading Bellows

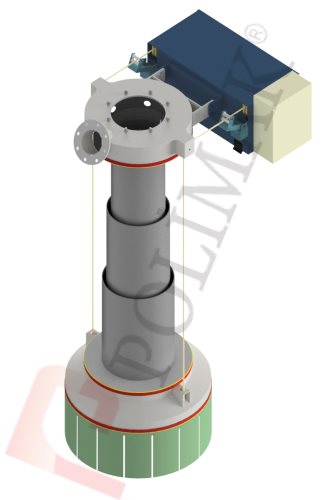

Single Loading Chute
Telescopic loading chutes are specifically designed for high-capacity and high-temperature powder loading operations, commonly used for trucks, ships, and stockpiles. The chute consists of large-diameter telescopic steel pipes that extend and retract smoothly, controlled by a reliable winch mechanism. This design provides a spacious inner passage, allowing powdered materials to discharge easily and efficiently without clogging or interruption. Additionally, the enclosed steel structure effectively isolates the powder from the surrounding environment, minimizing dust emissions and preventing contamination.
This combination of robust construction and precise control makes telescopic loading chutes ideal for demanding bulk handling applications where safety, efficiency, and environmental protection are essential.

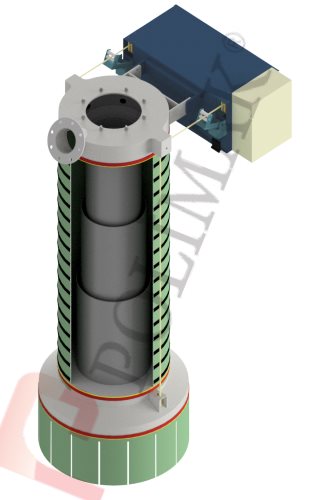

Single Outer Bellow with Internal Loading Chute
In this configuration, a telescopic loading chute is enclosed by a single outer bellow, providing a fully sealed containment system that prevents dust leakage during bulk material transfer. The outer bellow functions as a flexible barrier, enabling movement while preserving a tight seal.
A flexible dust skirt is installed at the bottom of the chute and connected to a dust collection system to further enhance dust control. This configuration effectively captures fugitive dust generated during the loading process, ensuring a cleaner and safer working environment.
The combination of the outer bellow and internal chute provides efficient material handling with minimal environmental impact, making it suitable for a wide range of bulk loading applications.

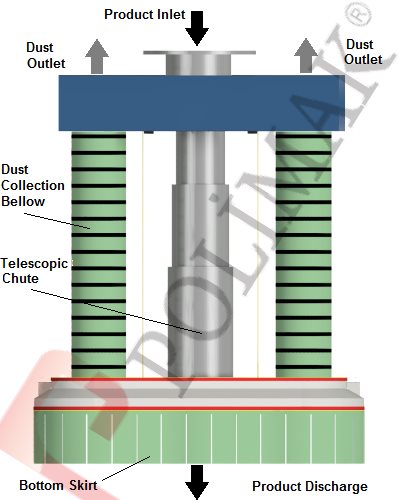

Loading Chute with Double Dust Collection Bellows
Handling bulk materials with high amounts of dust requires advanced solutions to minimize airborne emissions and maintain a safe working environment. Due to increased dust levels, the flexible dust skirt is enlarged to ensure better containment around the loading area.
In this configuration, two bellows are installed on either side of the telescopic chute piping to enhance dust collection efficiency for high dust loads. Large-scale jet filter-type dust collection systems further support this setup by capturing fine particles and preventing their release into the atmosphere. This comprehensive approach provides reliable dust control for demanding industrial loading operations.
