Preventing Silo Explosion Risks Using ATEX-Certified Rotary Valves

  • Emre Karatekeli
  • September 18th, 2024

The risk of silo explosions is high in industries dealing with flammable dry bulk materials. Therefore preventing such explosions is very important. POLİMAK‘s ATEX-certified rotary valves are crucial in significantly reducing this risk.

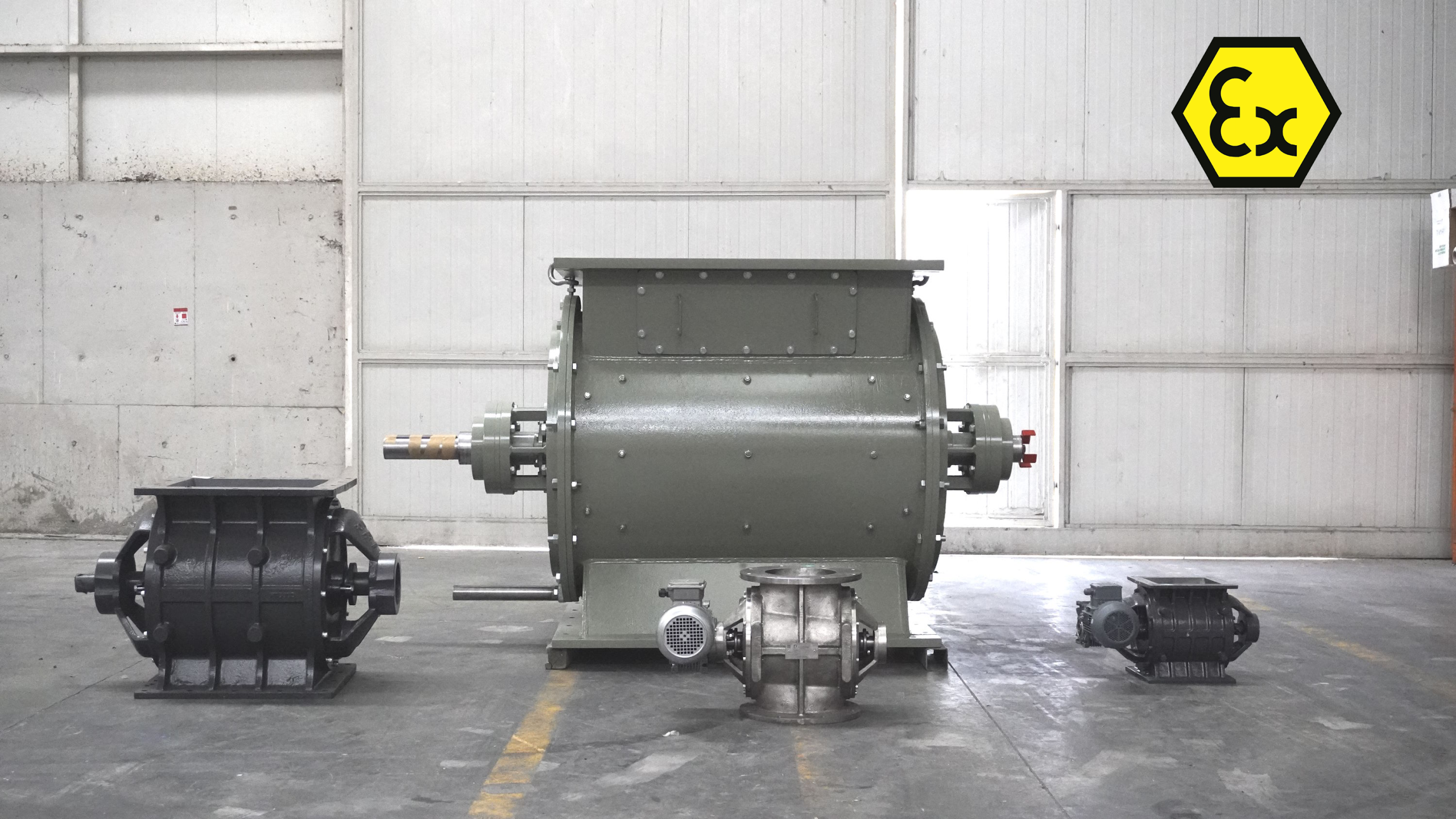

Why You Should Choose ATEX-Certified Rotary Valves for Silo Safety:

  1. Isolating the Explosion: ATEX-certified rotary valves play a crucial role in containing and controlling the explosion in the case of a combustible dust cloud ignition. Polimak rotary valves are engineered to stop the spread of explosive forces within processing lines. Designed to withstand up to 10 bar of explosion pressure, they can halt flame waves, thus reducing the destructive effect of explosion. Therefore, these rotary valves are essential for silo safety.
  2. Flame Resistance: POLİMAK’s ATEX-Certified rotary valves are designed to stop the spread of flames within the system, minimising the risk of explosion of silos. They are indispensable for the protection of your equipment and facility.
  3. Adherence to Safety Standards: Our ATEX-Certified rotary valves are composed of such elements as rotors, end-plates, and drive systems. All of these are designed in accordance with ATEX regulations. Therefore, they can be used safely in various areas from agricultural and chemical to power industry, where there is a risk of explosion.
  4. Multi-functional and Safe: Flammable materials commonly handled with rotary valves include sugar, starch, coal powder, and flour. To prevent the risk of explosion when dealing with these materials, it is recommended to use rotary valves with ATEX certification.

    Our rotary valves designed according to ATEX standards ensure maximum safety when handling explosive substances. They provide protection against the risks of dust explosion, keeping your equipment safe from potential hazards.
