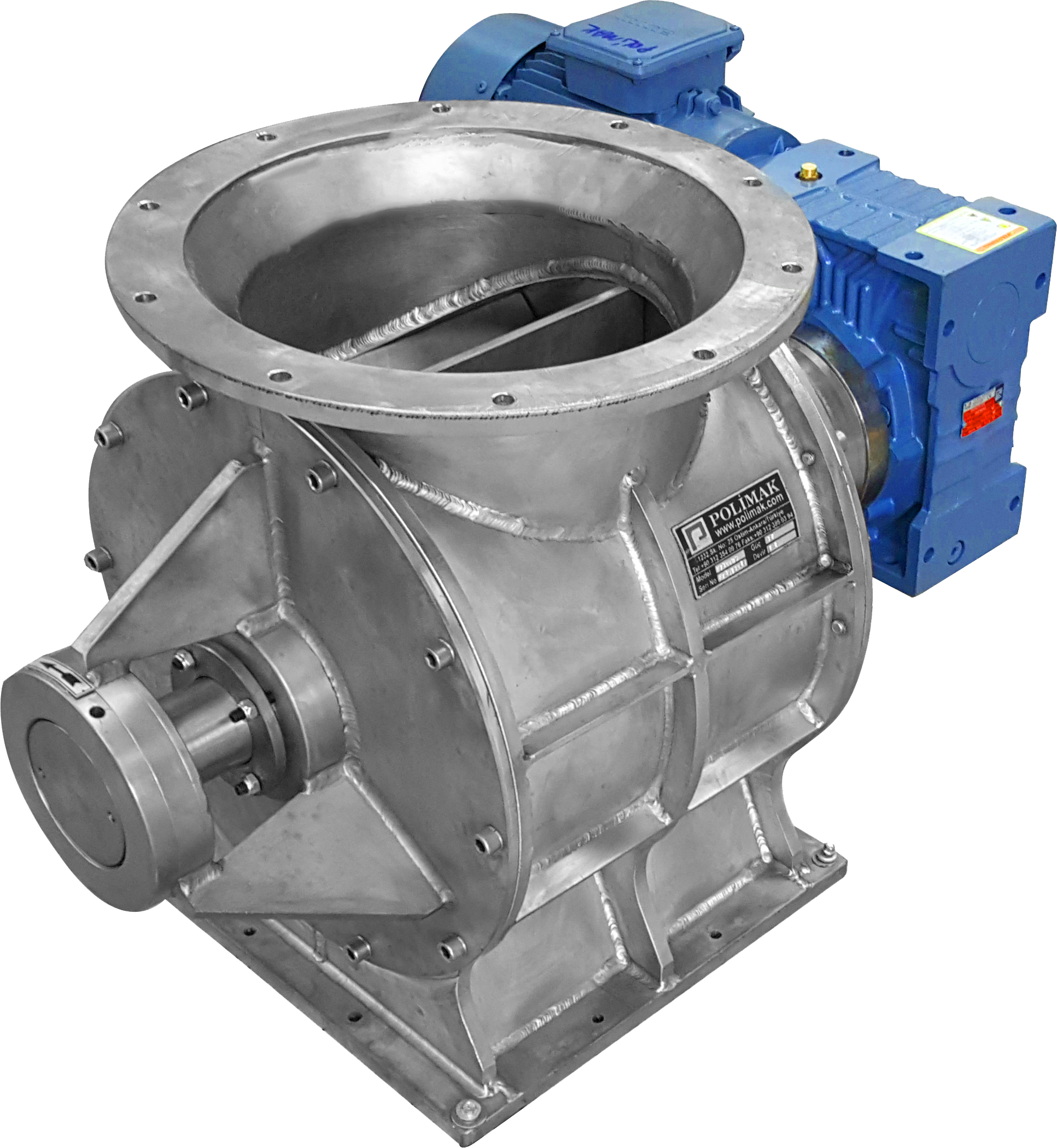

Rotary Valve

A rotary valve is a piece of bulk material handling equipment that regulates the flow of bulk solids by means of a rotating internal component that aligns with inlet and outlet ports.

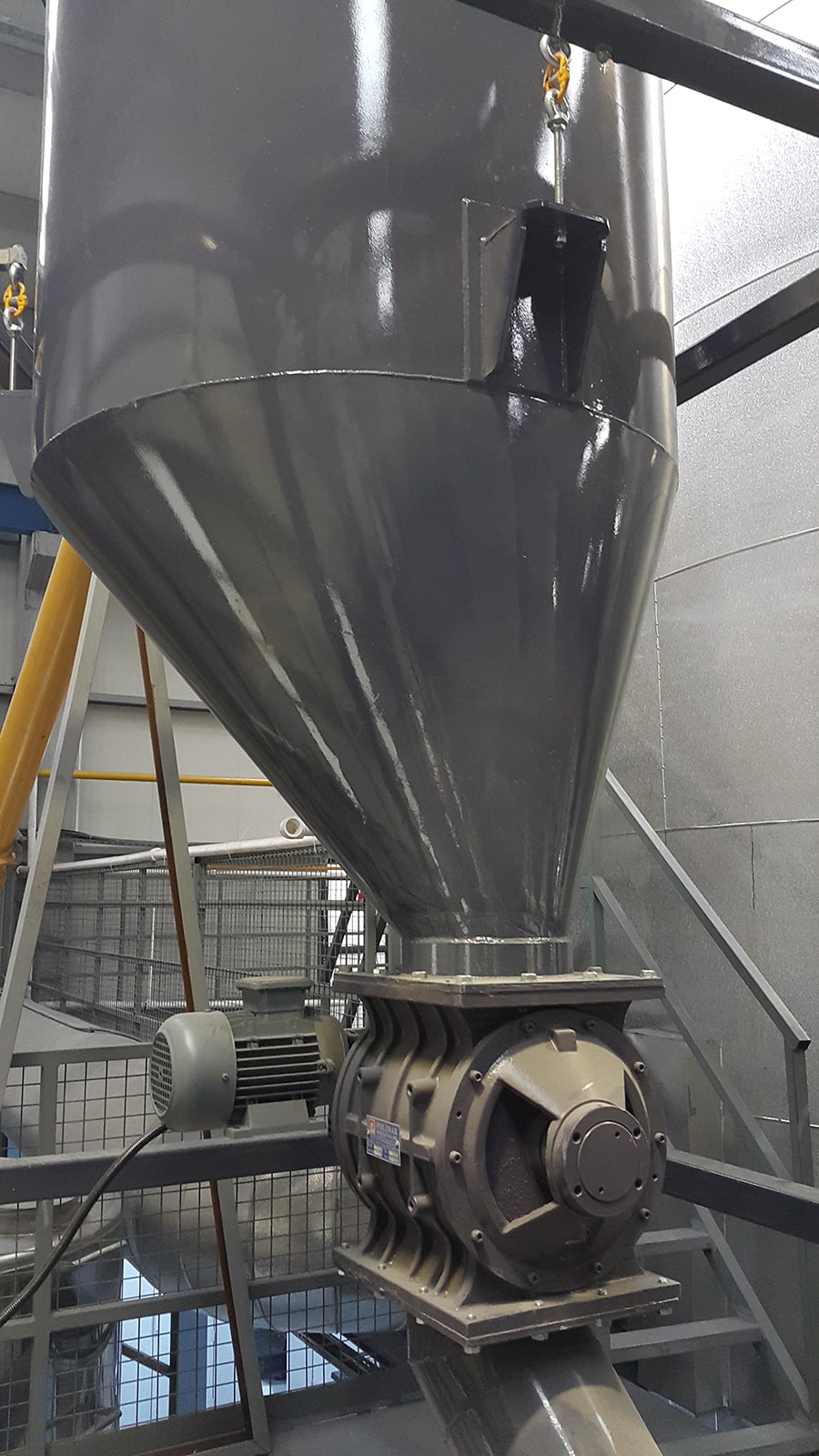

Also known as an airlock feeder or airlock valve, it is used to regulate the flow of dry bulk solids from upstream equipment, such as storage silos, hoppers, and dust collection systems, to downstream systems like pneumatic conveying systems, belt conveyors, and screw feeders.
In this process, air pressure between the inlet and outlet is kept constant, which is achieved with the help of rotor blades. This sealing plays a critical role in systems where pressure differentials must be maintained, such as in pneumatic conveying or dust collection systems.

We manufacture rotary valves from durable materials such as cast iron, AISI 304 or AISI 316 stainless steel, and Hardox, ensuring resistance to abrasive, corrosive, or high-temperature materials.

Rotary valves are widely used across various industries, including food, chemicals, plastics, cement, agriculture, and others, for different bulk material handling processes.

Rotary Valves Components

Polimak’s product portfolio includes a variety of valve configurations designed to suit the properties of different bulk materials and the requirements of each application. The key components of the valve include:

• A valve body (housing) with an inlet port and an outlet port

• A rotor (shaft with blades)

• Two end plates (either outboard or inboard)

• A drive system

Housing

A rotary valve housing contains and secures the bulk material as it flows through the system during material handling. The housings are made from various materials, including cast iron, stainless steel, and Hardox.

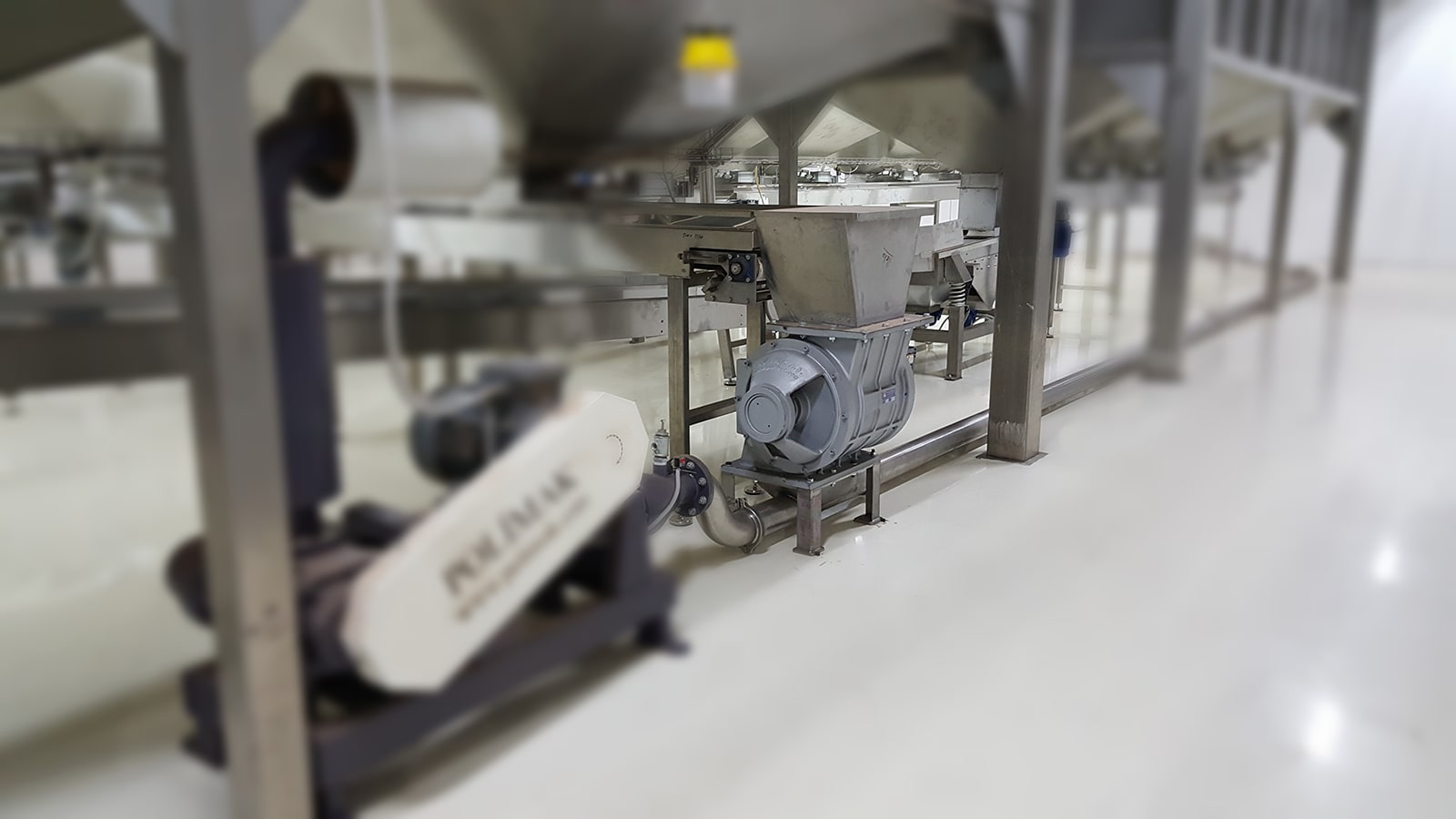

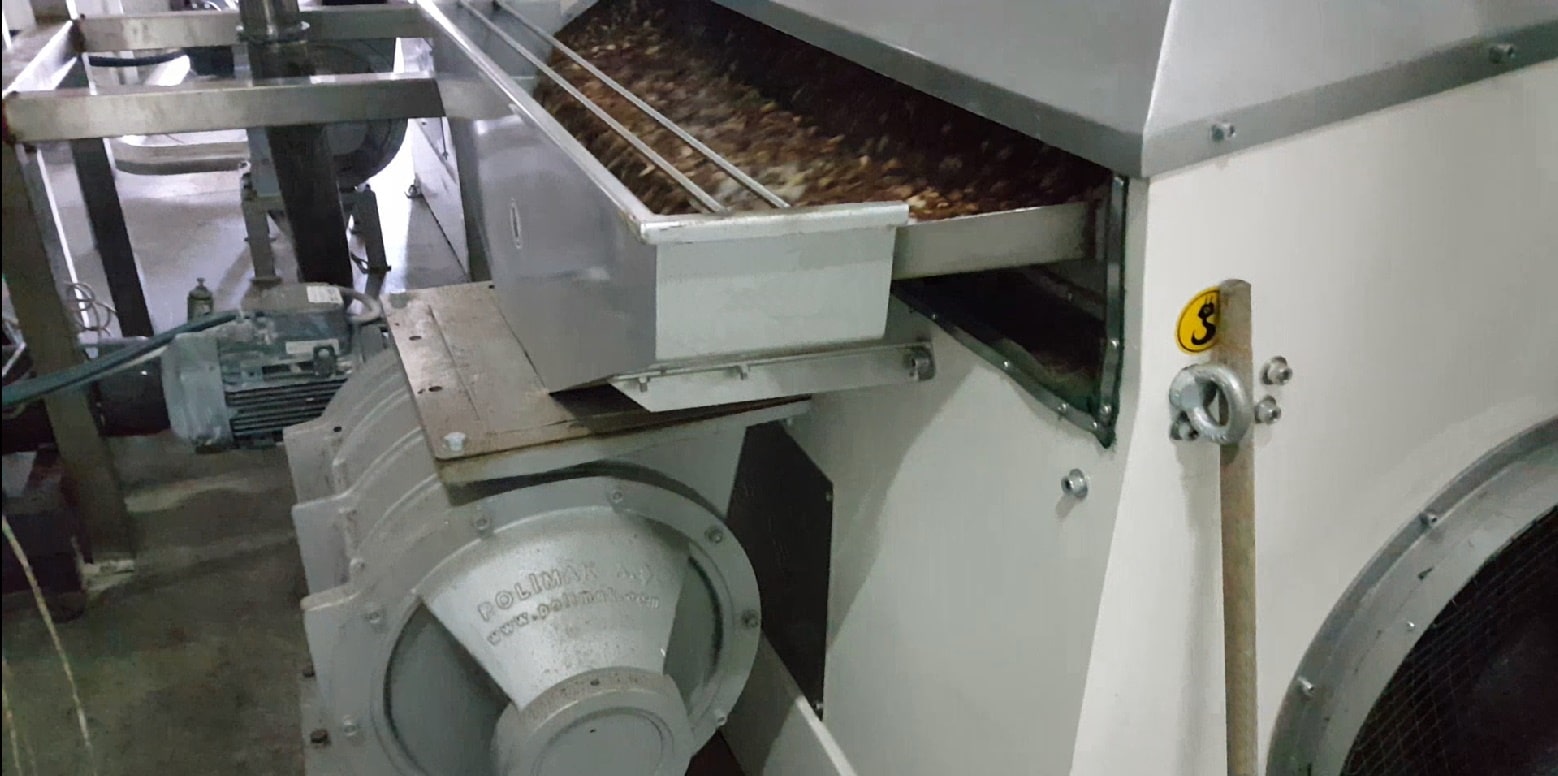

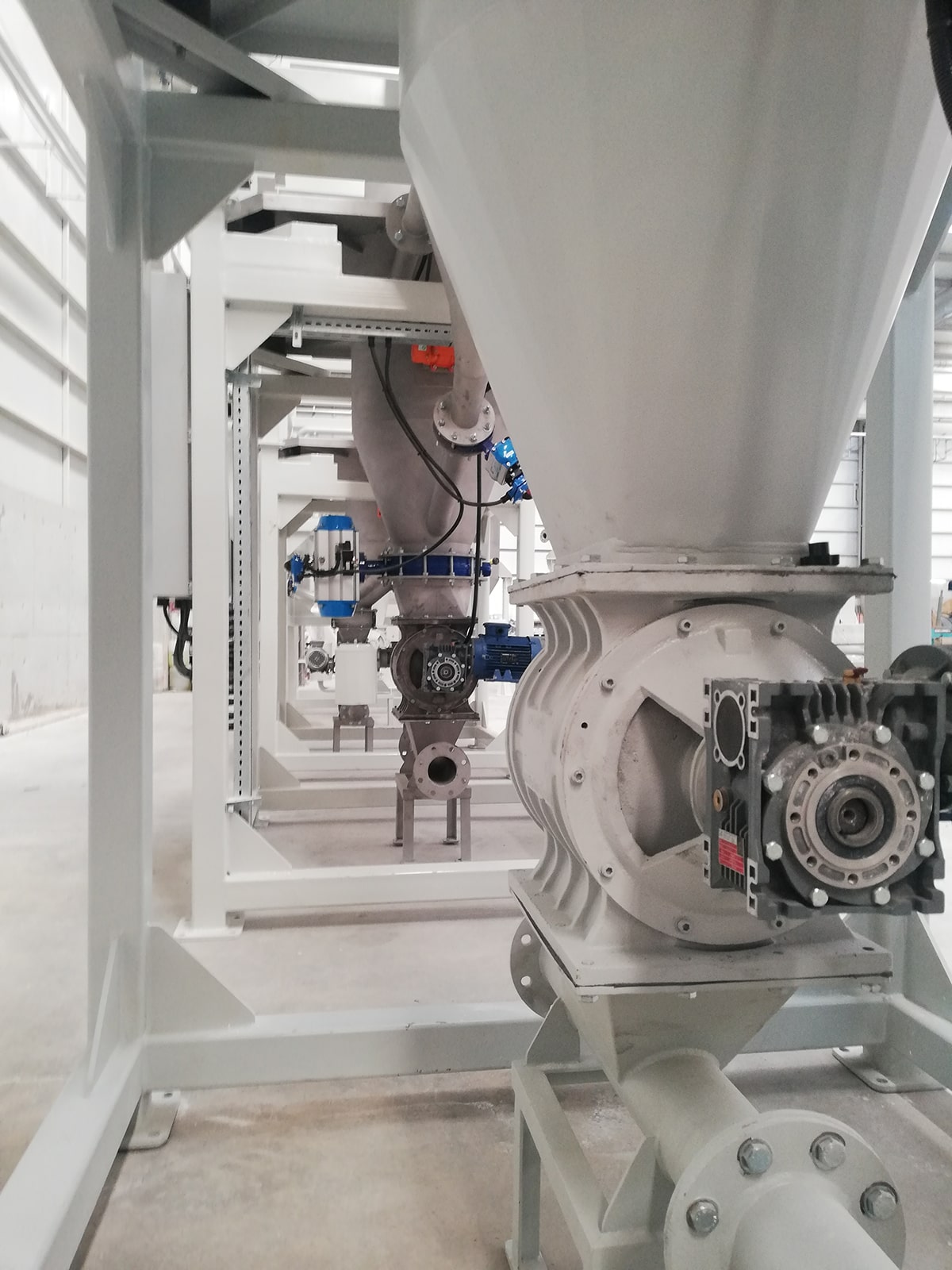

We also provide special coatings for abrasive bulk materials and highly polished finishes for the food and dairy industries. The three housing configuration types available are flow-through, blow-through, and offset.

Rotor

Rotors operate as metering components in rotary valves, and their designs can vary. A rotor is also referred to as a rotor assembly, as it consists of a shaft and blades (also known as vanes) that are welded or cast together. It is the rotating component of the valve. Rotors can have different numbers of vanes, such as 6, 8, and so on.

The space between the vanes is called a rotor pocket. Generally, the lower the number of rotor pockets, the higher the pocket capacity.

End-plate

The rotary valve end plates prevent dry bulk material from flowing out of the rotor pockets and into the bearing area.

There are two types of end plate configurations: outboard and inboard bearing end plates.

Lip seals or gland packing are used to ensure the proper sealing and containment of the product.

Drive Systems

The valve’s drive system consists of a motor paired with a gearbox. Most rotary valves are driven by a reduction gearbox, which is powered by an electric motor. The reduction gearbox is used to receive a specific motor speed and produce a lower output speed.

Polimak offers three drive arrangements to accommodate different mechanical requirements and installation preferences:

• Worm gear reduction connection

• Chain gear connection

• Direct coupling connection

Bulk Materials Handled by Rotary Valves

The design of a rotary valve is tailored to suit the specific characteristics and properties of the dry bulk materials to be handled, ensuring an optimal and efficient process.

Different types of dry bulk solids demand specific valve designs. For materials that are corrosive, sticky, or cohesive, valves are often equipped with coated surfaces—such as non-stick coatings or polished stainless steel—to enhance performance and durability.

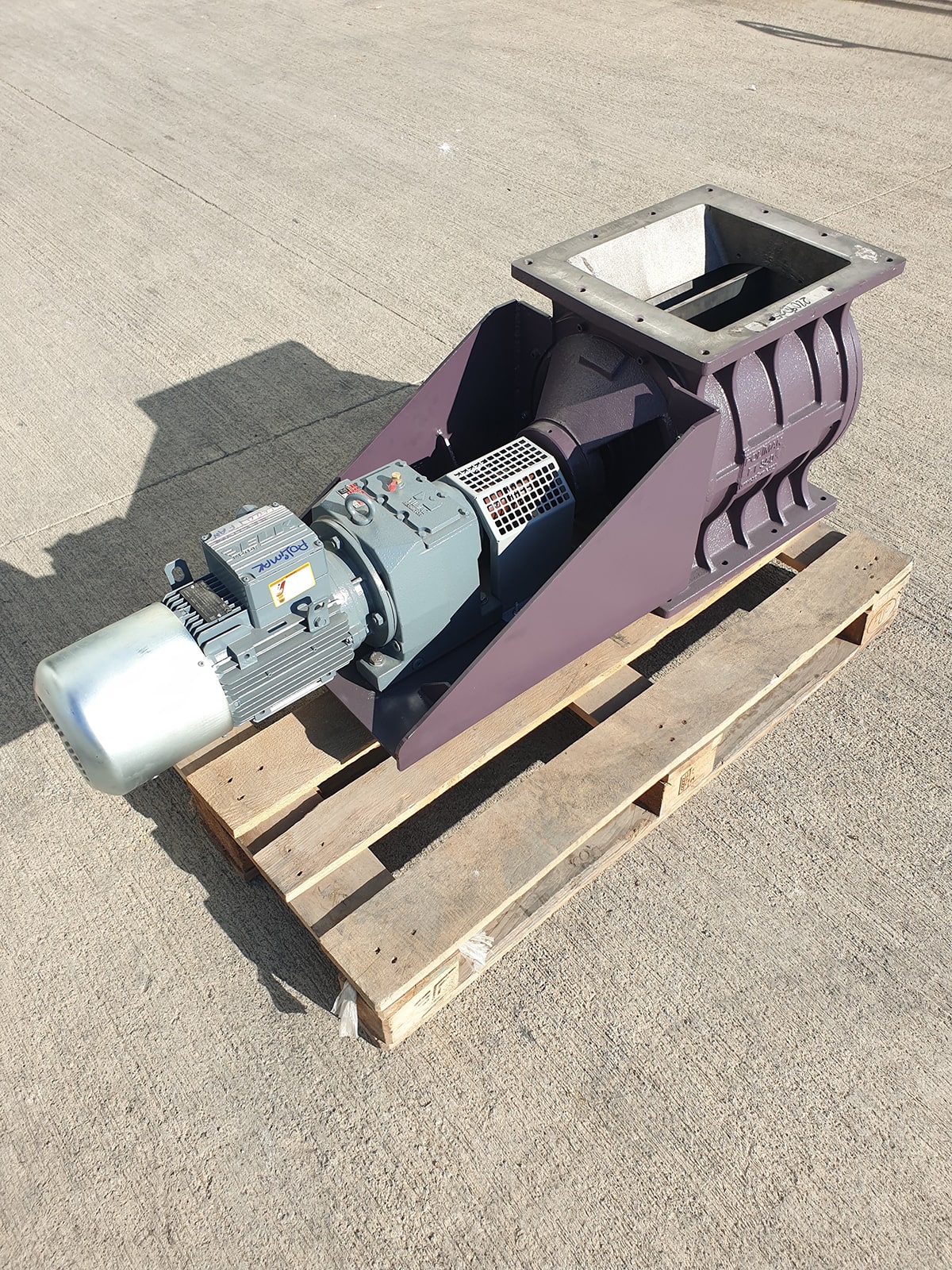

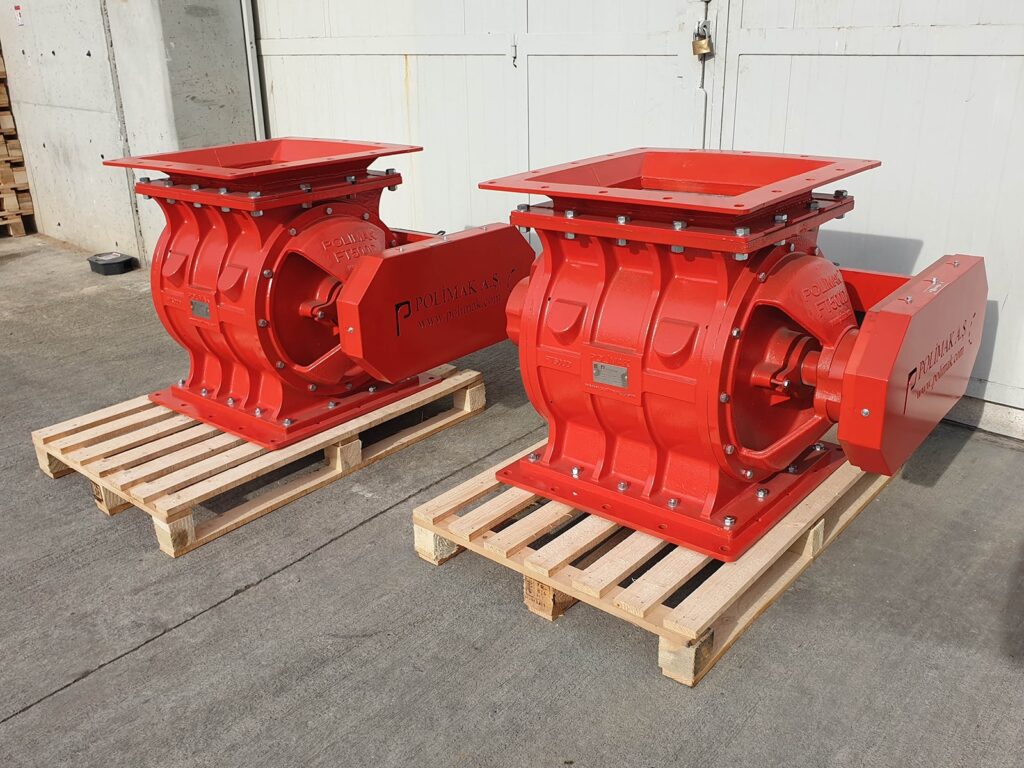

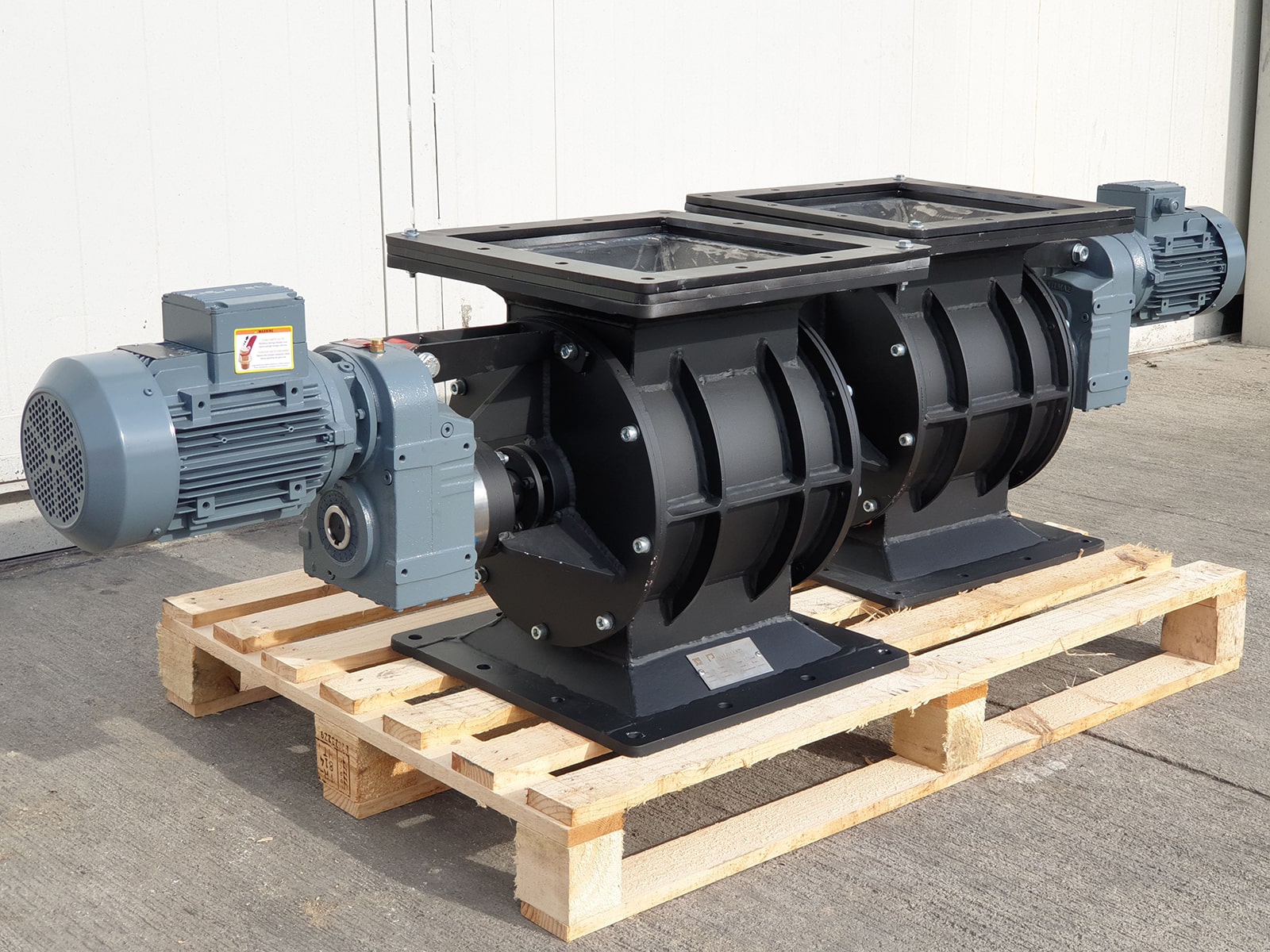

Image Gallery

Browse through our stunning collection of product images.

Rotary Valve Models


Discover

Rotary Valve Drive System

Discover

Rotary Valve Rotors


Discover

Rotary Valve Endplates


Options & Accessories


Industries & Industrial Applications

ATEX Certified Rotary Valve

INSIGHTS

Models

Explore our wide range of high-quality accessories for your bulk solids handling machinery.
View all

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse varius enim in eros.

Models
LEARN MORE

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse varius enim in eros.

Models
LEARN MORE

Rotary Valve Drive Systems Polimak offers three different types of rotary valve drive connections, each suited to specific operational needs and installation requirements:• Worm Gear Reducer Connection• Direct Coupling Connection• Chain Drive ConnectionThese drive connections are implemented to a rotary valve by means of a rotary valve rotor. Worm Gear Reducer Drive Connection A worm […]

Models
LEARN MORE

Rotary Valve A rotary valve rotor is the rotating component within a rotary valve, a mechanical device used to regulate the flow of bulk materials from upstream to downstream equipment. The rotor’s rotation movement is powered by a drive motor connected to it. Various rotary valve drive connection options are available from Polimak to suit […]

Models
LEARN MORE

FAQs

Everything you need to know about the product and billing. Can’t find the answer you’re looking for? Please chat to our friendly team.
View all

A rotary feeder is a type of valve whose primary function is to feed or meter dry bulk solids from an upstream device to a downstream device without necessarily maintaining a pressure differential. An airlock feeder is a valve that maintains a pressure differential while feeding or metering dry bulk materials into a downstream system.

• The blades of a rotary valve rotate inside the valve housing during operation.

• This rotation is driven by a motor.

• As the motor turns, the rotor pockets move through the valve.

• Dry bulk solids are supplied to the valve from upstream equipment through its inlet and settle in the pockets.

• The rotor continues to rotate and discharges the dry bulk solids through the outlet port.

• There are two types of rotation:

• Load side rotation: movement of the rotor pockets from the inlet to the outlet.

• Return side rotation: movement of the rotor pockets from the outlet port back to the inlet port.

Rotary valves find applications across numerous industries for a variety of industrial processes. They serve several key purposes, including:

• Controlling the flow of dry bulk solids

• Feeding downstream systems

• Maintaining a pressure differential between upstream and downstream equipment
