An Optimized Solution for the Efficient Pneumatic Transfer of Bulk Grain

  • Emre Karatekeli
  • June 6th, 2024

One of the leading companies in Europe in the food sector, specializing in grain handling, turned to us for a more efficient way to move dry bulk grain. Before applying our solution, grain had to be unloaded from train wagons using inefficient, labour-intensive methods, and then transferred again to another wagon—wasting time and reducing profits. Polimak provided a tailored solution with its Mobile Pneumatic Conveying System.

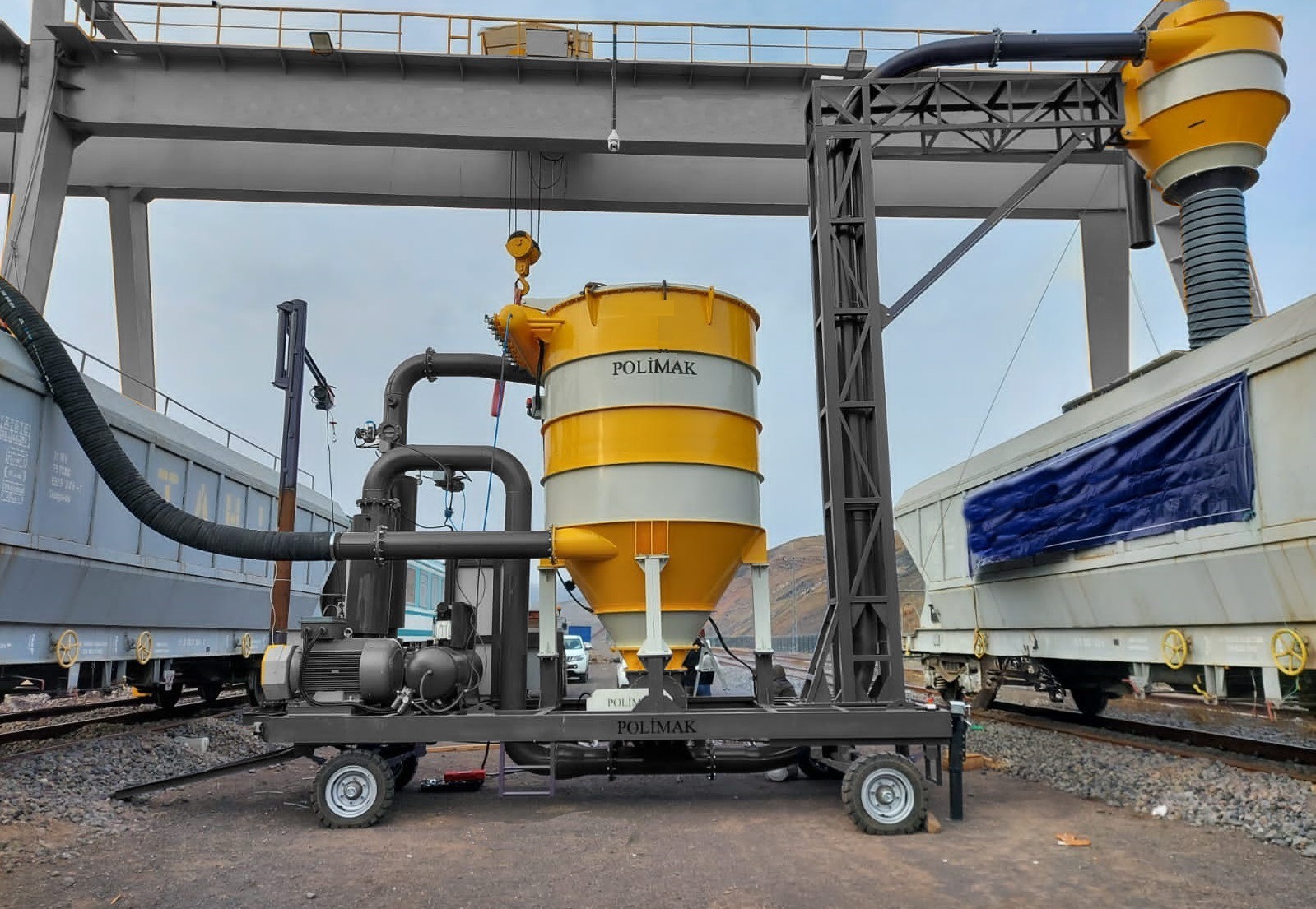

Our system enables direct conveying of grain from one train wagon to another, completely eliminating the need to transfer the grain to a train wagon (as can be seen in the picture). It uses a roots blower to create suction, drawing grain into the conveying system. The grain is then separated from the suction air in the jet cyclone. A rotary valve installed below the cyclone feeds the product into a pressurized conveying line. The blower supplies air to move the grain to its final destination quickly and efficiently.

This compact system is installed on wheels, making it easy to move around rail yards. As a result, the customer saw a 10% increase in profit due to reduced handling time and faster transfer speeds. Additionally, the system reduced labor costs by 15%, helping to increase the bulk material handling company’s overall profitability. The system’s design not only improved workflow but also offered a practical, mobile, and easy-to-install solution for bulk grain transfer.
