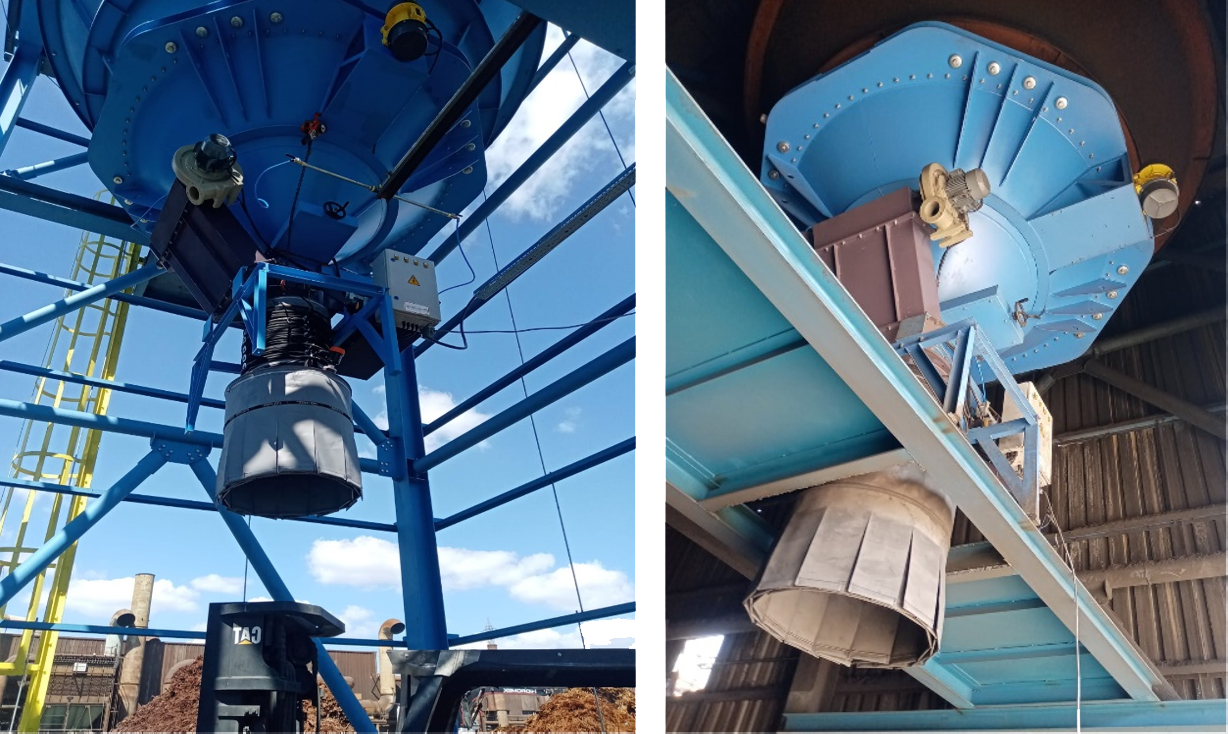

Bin activator, loading bellow and dust collection system for more efficient loading.

  • Emre Karatekeli
  • June 6th, 2024

PROBLEMS

When dry solid materials are discharged from silos or bunkers, they are pulled downward by the force of gravity. This effect sometimes causes blockages and non-flow of material. Additionally, during the discharge dry solid materials from silos or bunkers onto trucks, silo trailers, or ships, they can be released into the air due to various external conditions. This situation poses risks both in terms of occupational safety and financial losses for the company due to spillage during loading. Furthermore, airborne dust particles can be harmful to human health.

  • Flow obstruction issues
  • Explosion hazards
  • Slow discharge
  • Dust and pollution
  • Material loss
  • Occupational health and safety

CUSTOMER PROBLEMS

The customer has primarily two issues. The first problem is the gap between the silo and the discharge outlet. In the customer’s current setup, there is a gap between the silo and the loading section, leading to product loss and the spread of dust into the environment.

The second issue is material obstruction. The material discharged from the silo gets stuck here as it flows down to the narrower loading section below, slowing down the flow and causing significant material loss and safety hazards.

THE RESULTS AND BENEFITS

• Comfortable and trouble-free unloading of material

• Most efficient operation with low energy consumption

• Easy maintenance

• Working at high efficiency

• Safe working environment

• Dust-free environment

• Sensors that prevent the product from overflowing

• Conical unloading tip compatible with different inlet mouths in silobas loading

• Automatic upward pulling feature when raw material filling process finished

• Easy to use

• No spillage and no product waste

• Lossless product filling

WE OFFER THE BEST FOR YOU

Polimak is a leading engineering and fabrication company, specializing in bulk solids handling technologies for over four decades. Polimak systems range from demanding production lines to heavy industrial applications.

Our skilled engineers are committed to finding the right answers to complex customer problems through careful analysis, proactive innovation and creative problem solving. Polimak offers best-in-class equipment that is designed with accuracy and efficiency in mind, making them a dependable partner for customers who seek reliable solutions backed by know-how and quality customer service.

Our team of experienced and motivated specialists is dedicated to providing the bulk solids-processing industry with solutions that are not only efficient, reliable and cost-effective – but truly extraordinary.

Table Of Contents

INNOVATIVE

Discover Our Featured Products

Browse our wide range of versatile bulk material handling machinery.
View all

Our bulk handling solutions are designed to optimize your operations, increase efficiency, and reduce costs.

Models
LEARN MORE

A rotary valve, also known as an airlock feeder or airlock valve, is a piece of bulk material handling equipment used to regulate the flow of dry bulk solids from upstream equipment, such as storage silos, hoppers, and dust collection systems, to downstream systems like pneumatic conveying systems, belt conveyors, and screw feeders.

Models
LEARN MORE
LATEST

Discover Our Latest Blogs

Stay updated with our informative blog posts.
View all
1 min read
POLİMAK TEST FACILITY

At POLİMAK, we are committed to innovation in bulk material handling to meet the ever-changing demands of the industry. We are excited to announce the opening of a new testing facility next to our factory. This facility will allow us to develop and refine solutions tailored to the unique needs of our customers…

Read More
2 min read
Polimak at TURKCHEM 2024

From November 27–29, 2024, Polimak participated in TURKCHEM EURASIA 2024, the largest and most comprehensive chemical platform in the EMEA region. Held at the Istanbul Expo Center, this event brought together key players from the chemical industry to explore the latest advancements and innovative solutions…

Read More
1 min read
Polimak at INTERCEM AMERICAS 2024

Polimak participated in INTERCEM AMERICAS 2024, held from November 19–21, 2024, at the Royal Sonesta Houston Galleria, Texas. Known as North America’s premier cement industry conference, INTERCEM AMERICAS is a vital platform for cement producers, traders, and service providers to connect, exchange ideas, and discuss the future of the industry…

Read More
1 min read
POLİMAK at BULKEX 2024

We have participated in Bulkex 2024 took place on October 15th and 16th in Warwickshire, UK. Organised by the Materials Handling Engineers’ Association (MHEA), BULKEX serves as a platform for gathering professionals and companies involved in bulk handling equipment…

Read More

Discover our amazing products today

Discover our amazing products today
ALL PRODUCTS
Join our newsletter to stay up to date on features and releases.

By subscribing you agree to with our Privacy Policy and provide consent to receive updates from our company.

COMPANY
RESOURCES
FOLLOW US
© 2024 Polimak. All rights reserved. Design & Development by brain.work
Contact Us
These valves are typically actuated by pneumatic actuators and are used to automatically open and close the product flow to discharge material to downstream equipment.
Installed below silos or hoppers, these valves are used for maintenance operations of equipment such as rotary valves, screw feeders, etc., that are positioned below the butterfly valve.
These valves are typically actuated by pneumatic actuators and are used to automatically open and close the product flow to discharge material to downstream equipment.
In this design, the butterfly valve is sandwiched between two flanges. Rubber sealing at both faces of the valve provides a tight seal between the flanges and the wafer butterfly valve.
One side of the valve has a bolted flange connection, while the other side features a built-in short pipe designed for fixing a flexible sleeve.
These valves have bolted flange connections on both sides, making them suitable for installation on silos, hoppers, screw feeders, and similar applications.
Bulk tanker trucks or open trucks can be filled with powdered materials delivered within FIBC bags. These systems generally consist of bulk bag discharging station, mechanical or pneumatic conveyor and loading bellow. Big bag discharge station transfers the bulk solid from big bag to conveying system. Conveying system transfers it to truck loading area. And loading bellow is used to fill tanker truck without any dust emission. Since truck loading operations are done within limited time, high capacity big bag discharge systems and bulk material conveying systems are used. For short distances, screw conveyors are preferred to transfer material from big bag discharge station to truck loading chute. For long conveying distances, pneumatic conveying systems provide better service. There may exist a storage hopper or silo above bulk truck loading bellow to compensate material flow between inlet and outlet. Bulk bag discharge and truck filling systems have automatic control system that monitors product level in truck and operates all equipment accordingly. Optional weighing system can be added to measure the amount of material that is filled to truck.
Big bag discharge systems can deliver dry bulk solids in powder and granular form to weighing and batching systems. The loading hopper of the weighing system should remain full during dosing and batching. Big bag discharge systems can monitor the product level in the loading hopper and maintain a constant level automatically. Depending on the dosing speed and conveying distance, mechanical conveying systems or pneumatic loading systems may be used. Dust collectors can be employed to prevent dust emissions during hopper loading, especially for materials with high dust content.
Dry bulk packaging systems are used to fill powdered or granular materials into bags, drums, jars, sacks, etc. Bulk materials delivered in big bags must be transferred to packaging machines without interruption. The loading hopper of the packaging system should remain full during the filling and packaging process. Big bag discharge systems can monitor the product level in the loading hopper and maintain a constant level automatically. Depending on the packaging speed, mechanical conveying systems or pneumatic loading systems can be selected. Dust collectors can be used to prevent dust emissions during hopper loading, especially for materials with high dust content.
Mixer automation systems are used to mix dry bulk solids according to specific recipes. Raw materials delivered in FIBC bags can be transferred to mixing units through a combination of conveying equipment and bulk bag discharge systems. Depending on the type of application, pneumatic conveying or mechanical feeding systems can be used to fill mixers. Big bag discharge stations can be manufactured with built-in dosing systems. The amount of raw material to be loaded into the mixer is automatically controlled with the help of a weighing and dosing system. Dust collectors can be used to prevent dust emissions during the mixer filling process.
Bulk material stored in big bags can be automatically filled into small bags. Big bag discharge systems come with optional built-in bag filling units. For low filling capacities, these units are installed below the big bag discharge hopper, providing a practical and cost-effective solution. Both big bag discharging and bag filling operations can be handled by a single, compact system. For higher bag filling needs, bag filling machines are installed near the bulk bag discharge stations. Pneumatic conveying systems or mechanical conveyors can be used to transfer bulk material from the FIBC bag discharge station to the bag or sack filling system.
Mechanical conveyors can be used for silo loading from big bag discharge stations. Screw feeders, bucket elevators, rotary valves, or chain conveyors are connected to big bag discharge stations to fill silos. The selection of conveying equipment directly depends on the conveying distance, height, transferred material, and capacity. Bucket elevators are preferred for high silos, while screw feeders are preferred for shorter silos and short distances. The big bag discharge system can be installed on top of the silo for faster filling. In this case, rotary valves or butterfly valves are better choices as they provide simple flow control. Dust collection systems may be required depending on the dust content of the bulk solid. During silo loading, air content in the silo escapes to the atmosphere and carries some dust along with it. Vacuum fans and jet filters in dust collectors prevent dust emissions into the environment. The collected dust is sent back to the silo, thus preventing product loss.
Pneumatic conveying systems installed after bulk bag discharge units transfer bulk material through conveying pipelines to fill silos. This configuration is useful in applications where high transfer rates and long conveying distances are needed. In production lines where raw materials are stored in warehouses far from storage silos, bulk bag discharge stations can be installed close to the warehouses, and pneumatic conveying systems are used to fill silos from long distances. This design reduces the need for forklifts and cranes for bulk material transfer on the production site and increases overall efficiency.

Pneumatic conveying systems used for silo loading utilize blower pumps or compressors. Motor power, pipeline diameter, and equipment selection depend on the type of bulk material, transfer distance, silo height, and transfer capacity. Level sensors, jet filters, and other equipment are installed on storage silos to ensure the proper operation of the silo filling system.
Pneumatic conveying systems installed after bag dump units transfer bulk material through pipelines to fill silos. This configuration is ideal for applications requiring high transfer rates and long conveying distances. In production lines where raw materials are stored in warehouses far from storage silos, bag dump stations can be installed close to warehouses, allowing pneumatic conveying systems to transport materials over long distances. This design reduces the excessive use of forklifts and cranes for bulk material transfer within the production site, improving overall efficiency.

Pneumatic transfer systems used for silo loading utilize blower pumps or compressors. Motor power, pipeline diameter, and equipment selection depend on factors such as the type of bulk material, transfer distance, silo height, and transfer capacity. Level sensors, jet filters, and other equipment are installed on storage silos to ensure the proper operation of the silo filling system.
Mechanical conveyors can be used for silo loading from bag dump stations. In this configuration, screw feeders, bucket elevators, rotary valves, or chain conveyors are connected to bag dump stations to fill silos. The selection of conveying equipment depends on factors such as conveying distance, height, material properties, and capacity. Bucket elevators are preferred for high silos, while screw feeders are ideal for shorter silos and short distances. Bag dump systems can be installed on top of the silo for faster filling. In such cases, rotary valves or butterfly valves are better choices as they provide simple flow control.

Dust collection systems may be required depending on the dust content of the bulk solid. During silo loading, air inside the silo escapes to the atmosphere, carrying dust particles with it. Dust collectors equipped with a vacuum fan and jet filter capture airborne dust. The collected dust is returned to the silo, preventing product loss and ensuring a cleaner environment.
The inlet skirt is an optional feature designed to extend the lifespan of the flexible connector sleeve. Its upper portion is attached to the outlet port of the upstream equipment and extends down into the bin activator’s inlet port. The primary function of the inlet skirt is to serve as a protective shield, safeguarding the flexible connector seal from wear and damage.
A vibratory motor is externally mounted to the bin activator. When powered, the motor generates vibrations that facilitate a steady flow of dry bulk materials within the system. Depending on the application requirements, one or two vibratory motors can be installed externally.
To accommodate a bin activator, the cone of a silo must be shorter than usual, resulting in a wider outlet. A flange supplied with the bin activator is separately welded to the silo’s outlet, slightly above the opening, at the production site. Once installed, the vibrating bin discharger is securely bolted to the flange, ensuring a stable and reliable connection.
Special spring suspension links and an engineered polymer seal work together to create a flexible connection between a vibrating bin discharger and the equipment positioned above it.

The proper design and installation of the polyurethane seal prevent it from slipping off and ensure a secure seal, eliminating the risk of dry bulk material leakage. Additionally, the seal offers high stress resistance and long-term durability, withstanding stresses caused by motor vibrations, pressure conditions, and other operational factors.

Externally installed spring suspensions provide full resilience to the vibrations of the cone head. They ensure that the generated vibrations affect only the cone itself rather than the upstream equipment structure.
An internally tapered, conical-shaped baffle plate is positioned at the center of the bin activator’s diameter. The baffle is rigidly attached to the equipment body using structural steel components. It facilitates bulk material flow from upstream equipment by directly inducing vibrations into the material.

A secondary deflector plate reduces the weight of the bulk material in the lower portion of the bin activator by acting as a wedge beneath the material, directing it around the areas adjacent to the cone’s surface.

Polimak baffle plates are available in various configurations, including convex and cone plates, and in different angles (15°, 30°, 45°, or even 60°) depending on the flow characteristics of the handled bulk material and the specific application requirements.
