Screw Jack

Screw jacks are essential components in industrial and mechanical systems where controlled linear movement and precise load handling are required. They provide a dependable and robust method for lifting, positioning, or adjusting heavy equipment in a wide range of applications.

Polimak’s screw jack systems are designed to offer safe and efficient performance across both light-duty and heavy-duty applications. Their adaptability makes them suitable for single-unit use or integrated into multi-jack arrangements for synchronized motion. The main capabilities and common applications are listed as follows:

Key Functions of Screw Jacks:

• Linear Motion Conversion: Converts rotational motion into precise linear movement, suitable for applications requiring exact positioning.

• Heavy Load Handling: Capable of lifting loads ranging from a few kN to several thousand kN, depending on the system configuration.

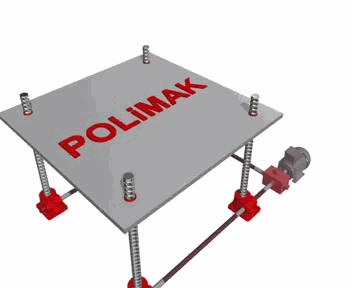

• Multi-Jack Synchronization: Multiple screw jacks can be linked mechanically or electrically for uniform movement in large systems.

• Manual or Motorized Operation: Can be operated using handwheels for manual control or electric motors (AC/DC) for automated systems.

• Positioning Accuracy: Offers high precision in movement, making them suitable for assembly lines, stage mechanics, and adjustable platforms.

Common Applications of Screw Jacks:

• Industrial Machinery Setup: Used to lift and set the position of heavy components during installation or maintenance.

• Construction Platforms: Provides adjustable support for temporary structures or platforms on irregular surfaces.

• Vehicle Maintenance: Supports lifting tasks for inspection, repair, or assembly in automotive and aerospace sectors.

• Material Handling Systems: Integrated into conveyor systems or processing equipment for height adjustment or positioning.

• Stage and Theatre Equipment: Allows precise elevation and lowering of platforms in performance venues.

Screw jacks combine mechanical simplicity with powerful output, making them a practical and reliable solution for demanding motion and lifting tasks.

SCREW JACK WORKING PRINCIPLE

Understanding how a screw jack operates is key to understanding its effectiveness in lifting and positioning heavy loads. The primary components that make up a screw jack include:

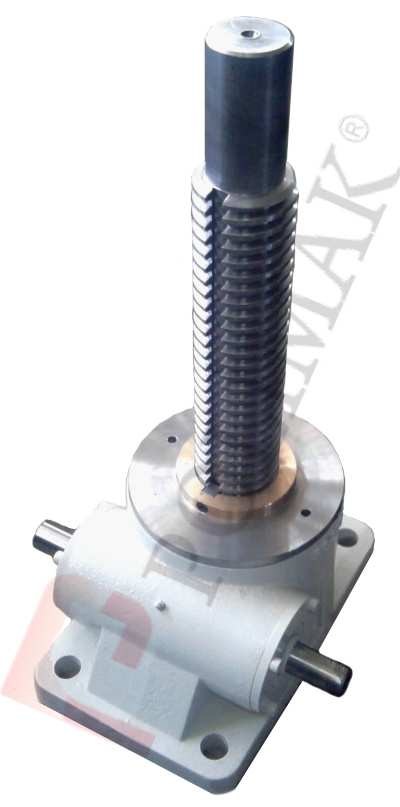

• Trapezoidal lifting screw (also known as the lead screw): A threaded rod that moves up or down to lift or lower the load as it rotates.

• Worm screw: A helical gear that transmits rotational motion from the motor or handwheel to the worm gear.

• Worm gear: Engages with the worm screw to convert rotational motion into the linear movement of the lead screw.

• Gear housing: The protective casing that holds the worm screw and worm gear, ensuring proper alignment and smooth operation.

The operation of a screw jack involves several key steps:

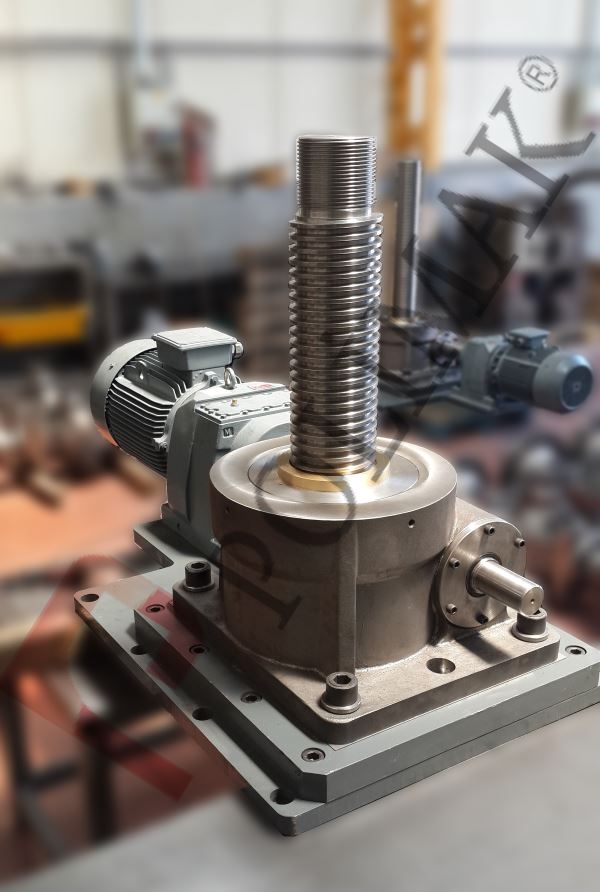

• The worm screw is turned either manually using a handwheel or powered by an electric motor.

• As the worm screw rotates, it drives the worm gear. This, in turn, causes the lead screw to move in a linear direction, either upwards or downwards.

• Several factors influence the speed at which the lead screw moves, known as the feed rate. These factors include the rotational speed of the worm screw, the number of teeth on the worm gear, and the pitch size of the lead screw.

• This precise conversion of rotational motion into linear motion allows for controlled lifting or lowering of heavy loads with high accuracy and safety.

In some models of jackscrews (T-Travelling Nut Type):

• The lifting screw does not move up and down but instead rotates around its axis.

• A lifting nut (also known as a traveling nut) moves along the lead screw to provide the lifting action.

• The lifting nut is typically made of bronze to reduce friction and ensure smooth movement.

TYPES OF SCREW JACKS

Polimak offers screw jacks in three different types:

1. Travelling Screw Type

2. Travelling Wedge Screw Type

3. Travelling Nut Type

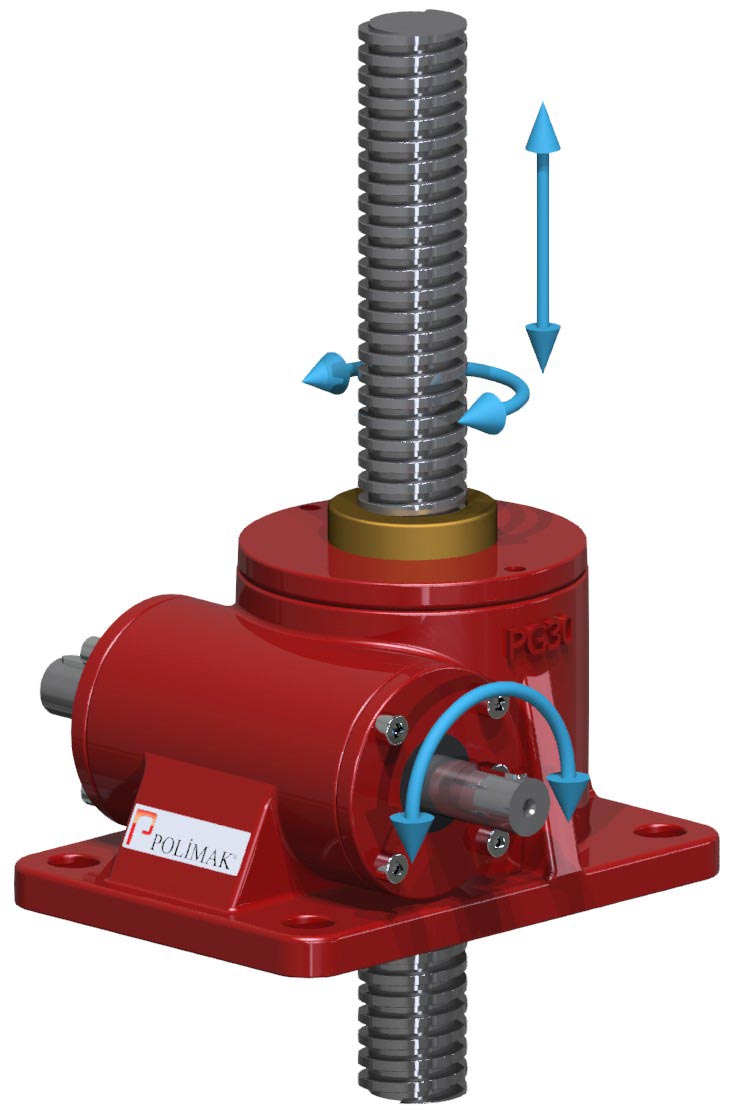

V-Travelling Screw Type

Discover

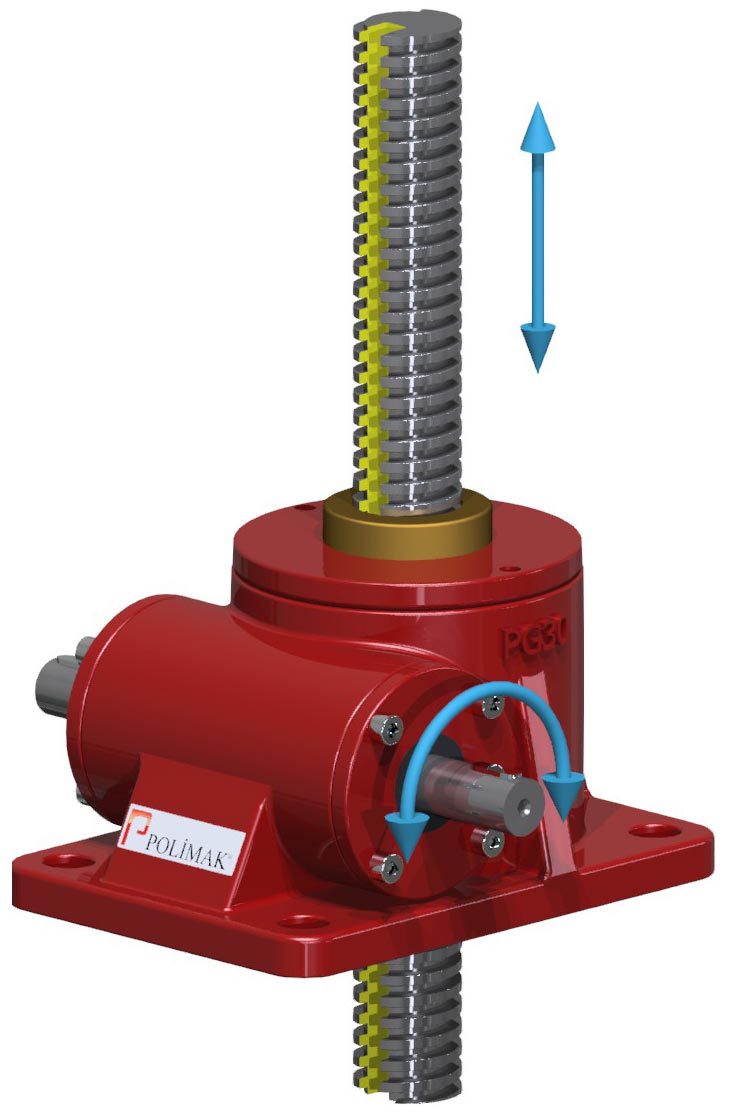

K-Travelling Wedge Screw Type

Discover

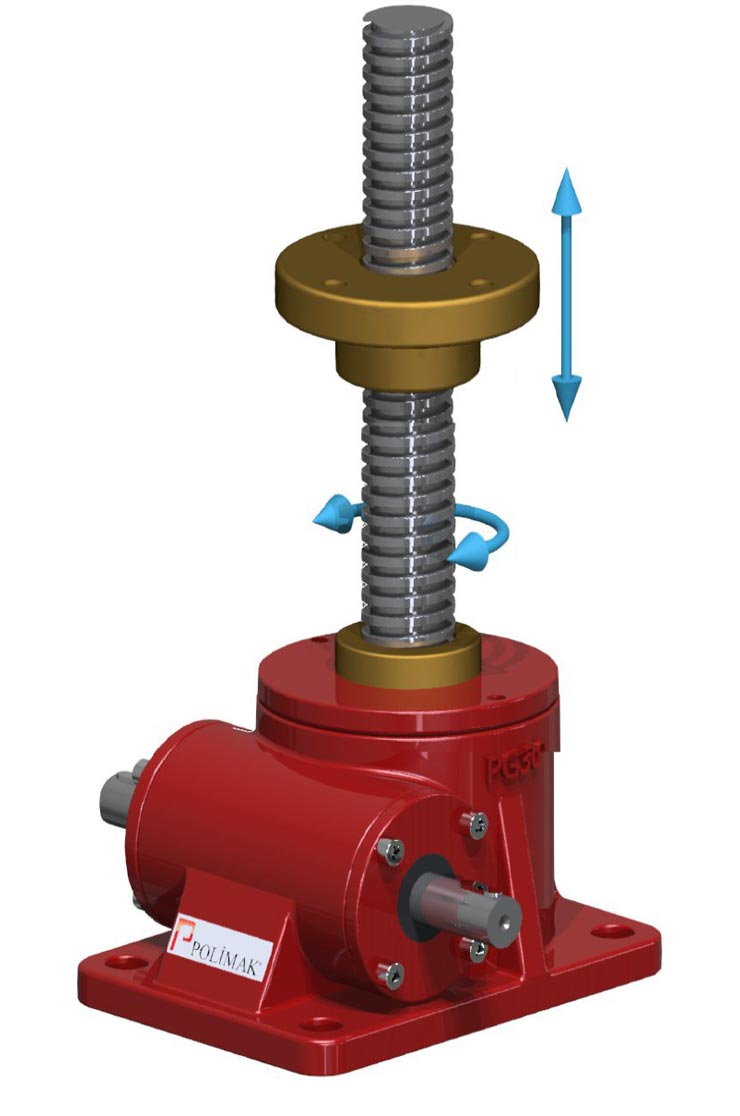

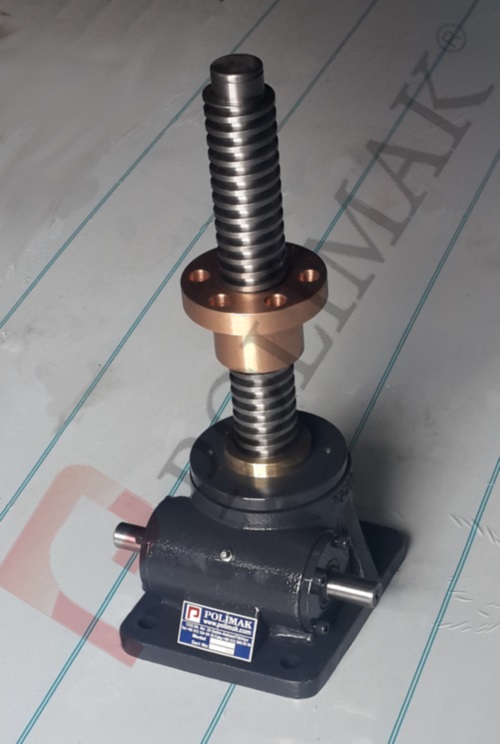

T-Travelling Nut Type

Discover

TYPES OF SCREW JACK ENDS

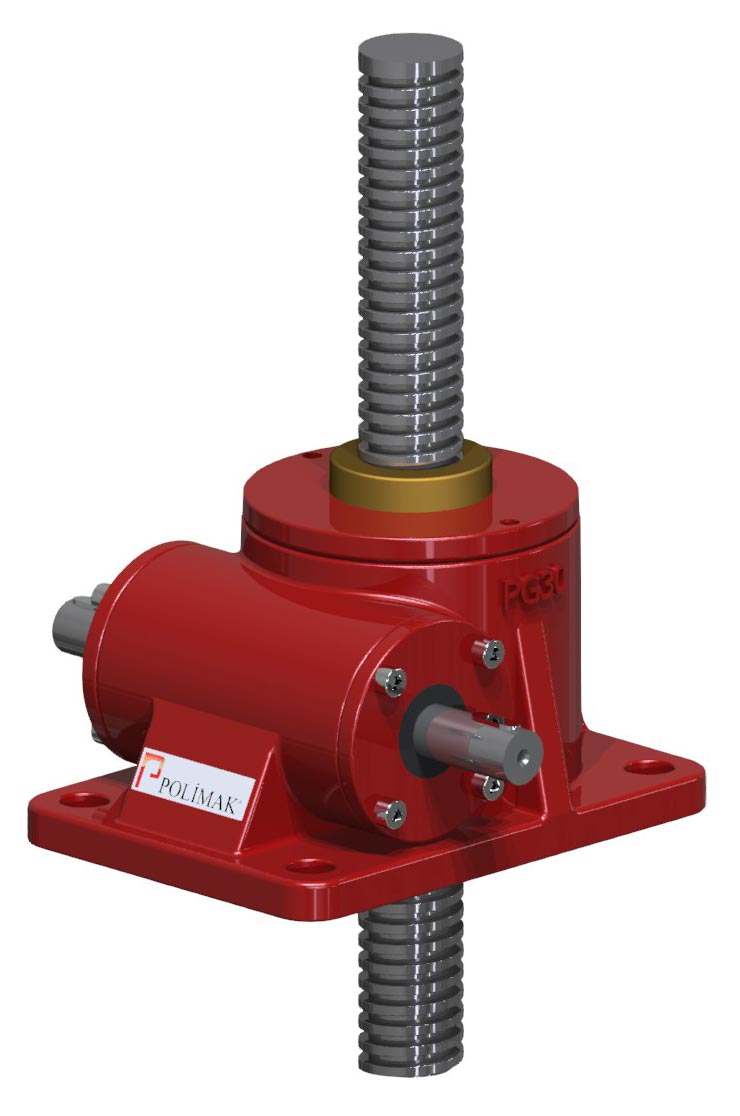

Plain End

Discover

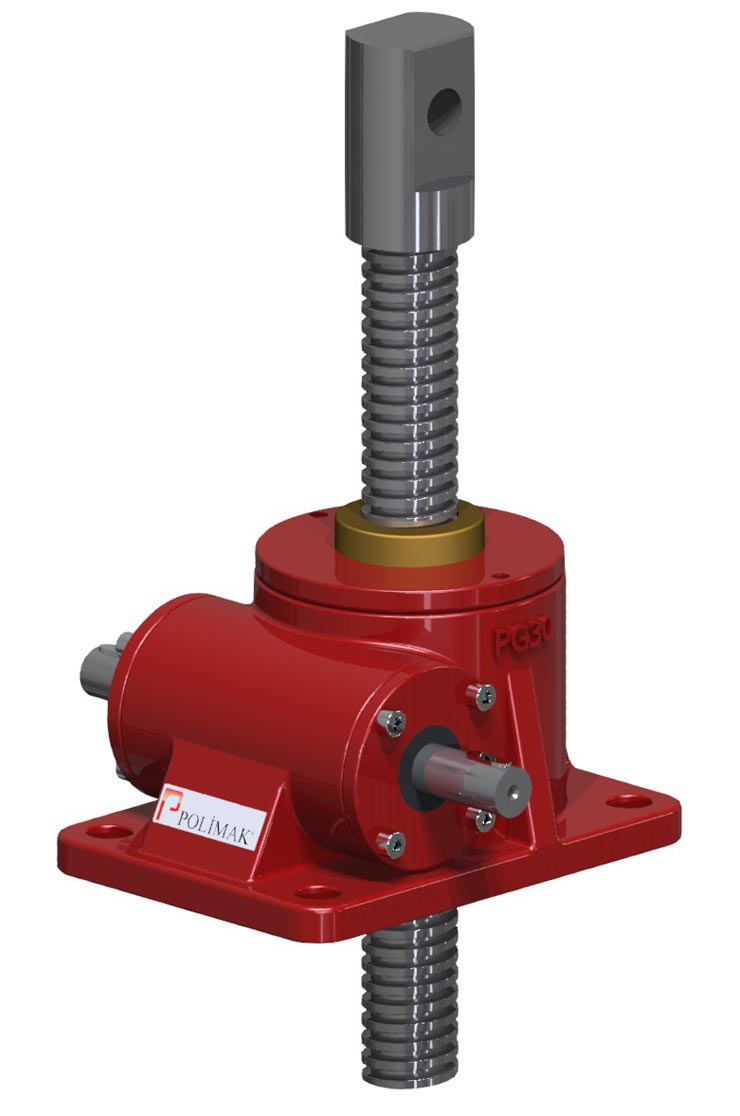

Clevis End

Discover

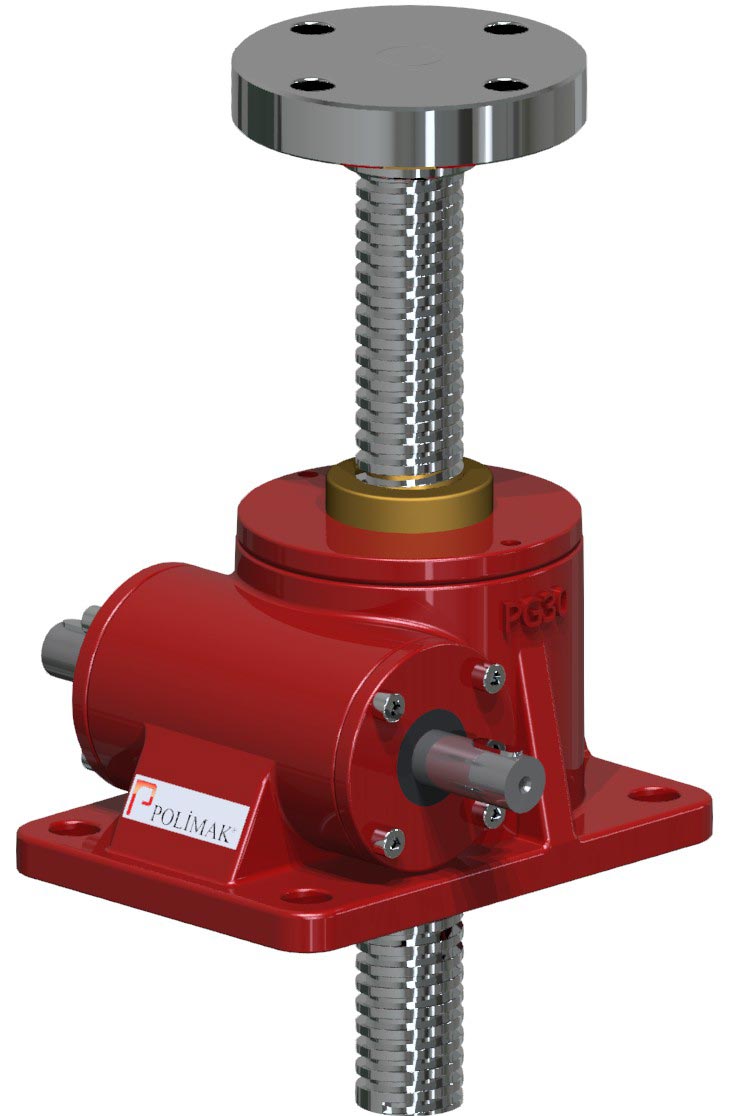

Flange End

Discover

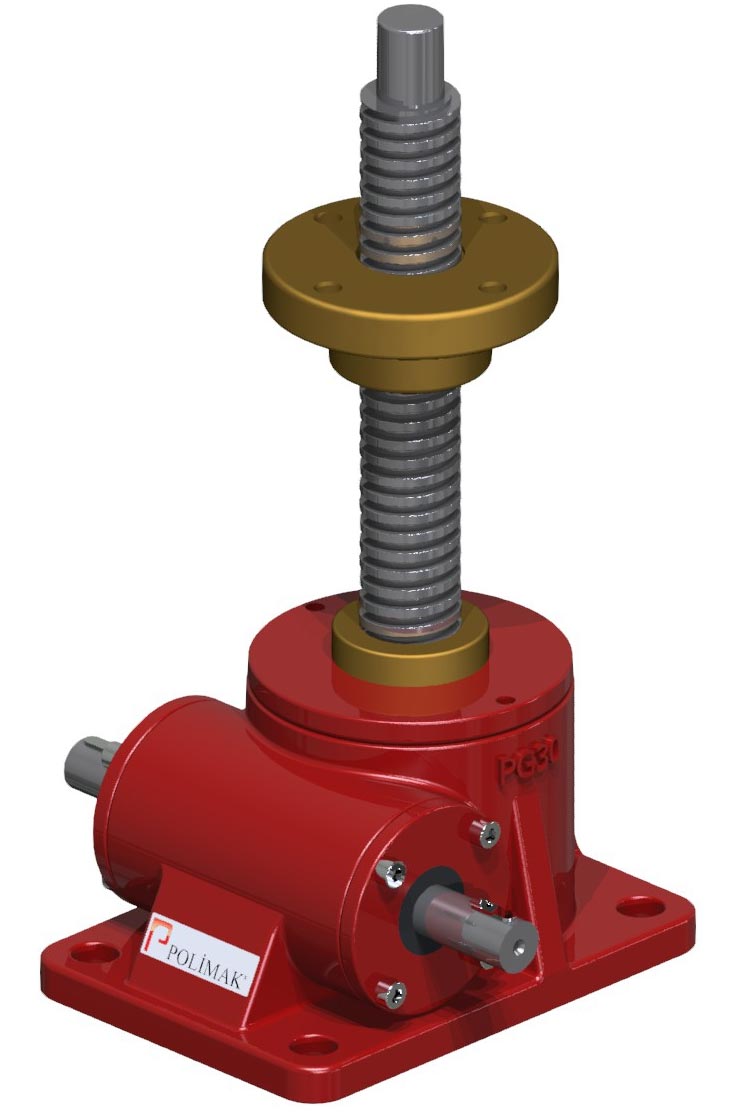

Travelling Nut

Discover

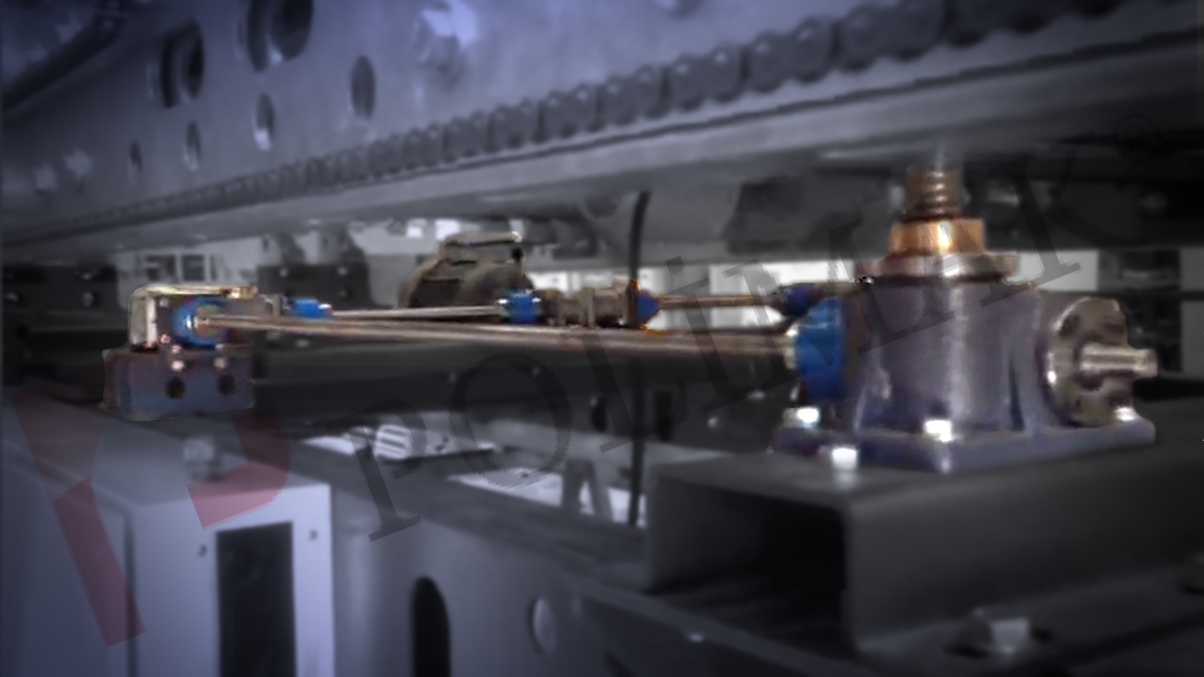

Applications Across Industries

Screw jacks have become an essential component in many sectors thanks to their robust performance and adaptability. They are widely used for lifting, aligning, positioning, and maintaining stable load positioning. Known for their dependable performance and accurate synchronization, screw jacks can offer improved control compared to pneumatic and hydraulic systems. This makes them the preferred choice for applications requiring fine adjustments and consistent performance.
Screw Jack Applications

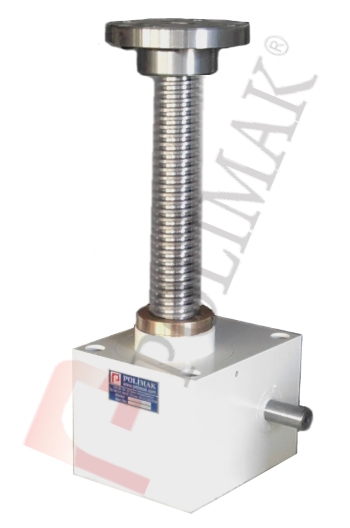

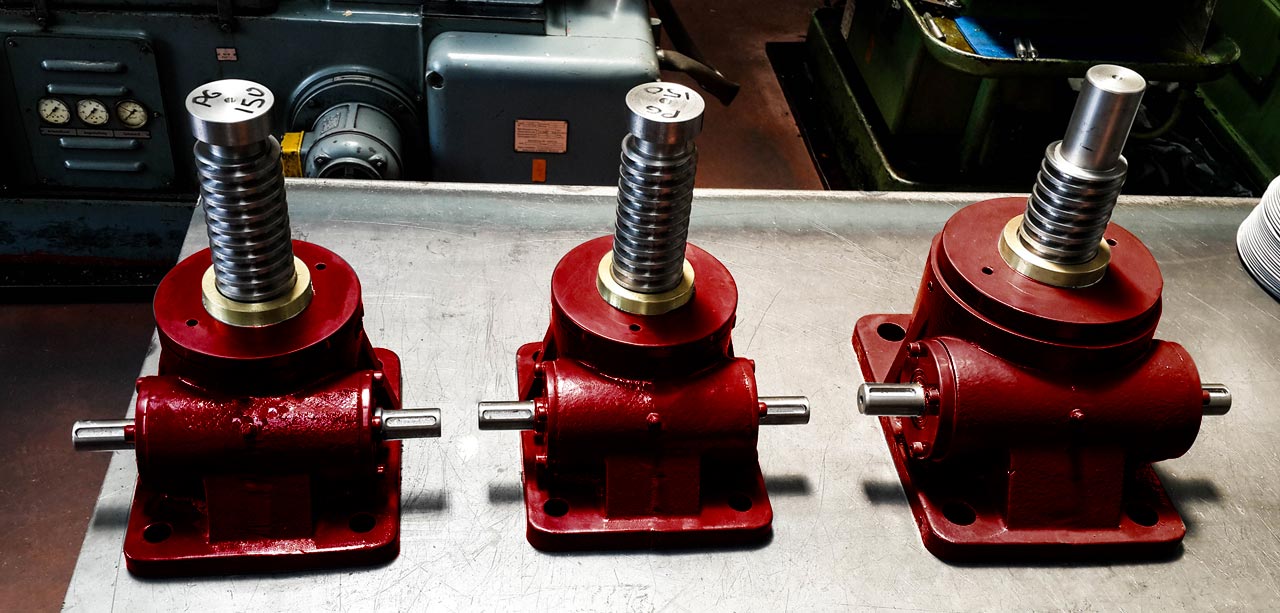

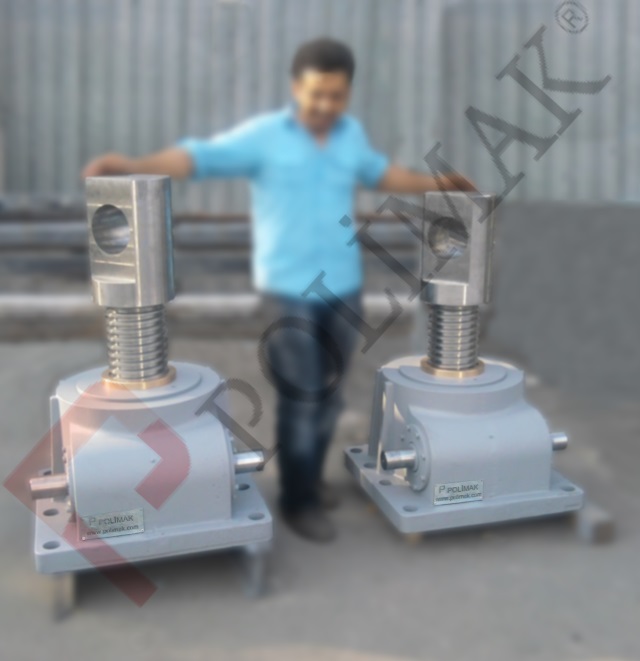

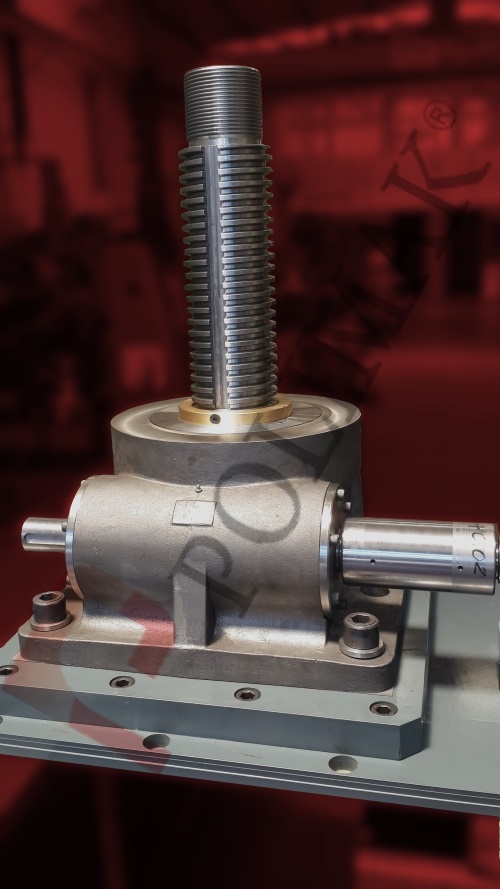

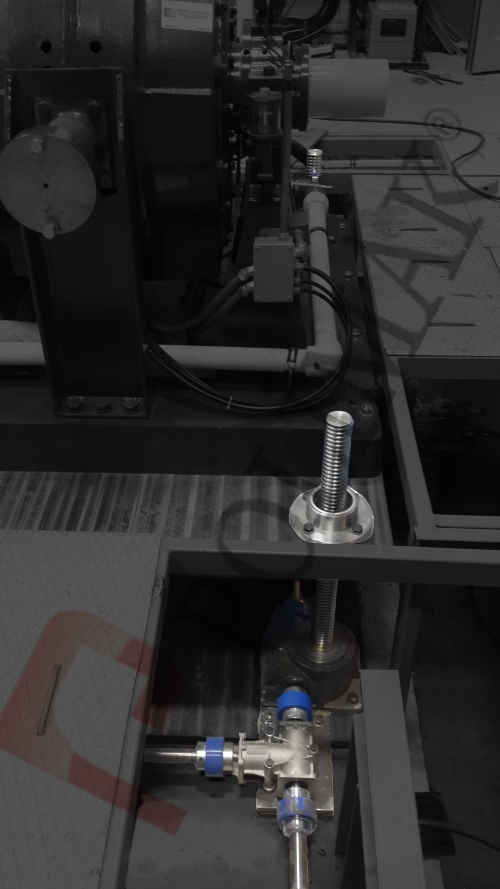

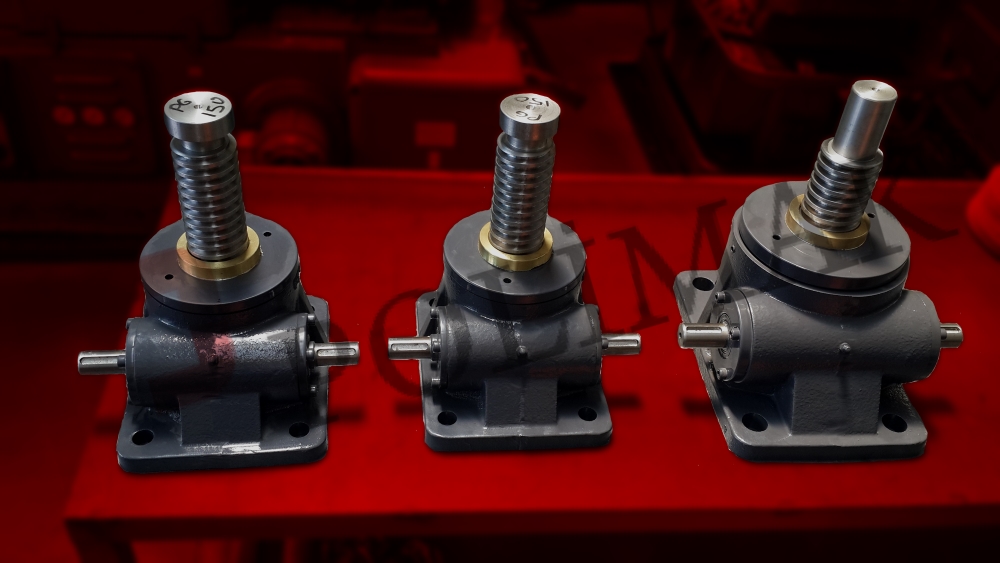

Image Gallery

FAQs

Everything you need to know about the Screw Jack. Can’t find the answer you’re looking for? Please chat to our friendly team.
View all

• A screw jack is a mechanical device designed to transform rotational motion into precise linear movement.

• It operates by turning a screw shaft. This rotation raises or lowers a load attached to the jack’s lifting mechanism.

• This device is highly versatile and can handle heavy, moderate, or even delicate loads depending on the design and size of the application.

• Screw jacks are commonly used for lifting, positioning, aligning, and holding loads securely in place.

• They find application across a broad spectrum of industries, including manufacturing, construction, automotive, aerospace, and material handling.

• Known for their reliability and mechanical simplicity, screw jacks offer controlled motion without requiring complex hydraulic or pneumatic systems.

• Many screw jacks feature self-locking capabilities, ensuring safety by preventing the load from slipping or moving unintentionally.

• Their compact design and ease of integration make them ideal for both stationary and mobile equipment requiring precise linear actuation.

• A lead screw, also known as a translating screw or power screw, is a mechanical component that transforms rotary motion into straight-line movement.

• It consists of a threaded shaft and a corresponding nut that travels along the threads as the shaft rotates.

• Lead screws are widely used in linear actuators to provide precise, controlled positioning and movement.

• They are preferred in applications where accuracy, repeatability, and smooth motion are essential.

• Common industries utilizing lead screws include robotics, CNC machinery, medical devices, and automated manufacturing systems.

• Lead screws can handle various load capacities depending on their size, thread design, and material.

• They can generate high levels of force efficiently, typically without needing extra gear systems.

• Many lead screws feature self-locking properties, which help maintain position without back-driving under load.

• Power Mechanism:

• Mechanical jacks operate using screw threads to convert rotational input into linear lifting motion.

• Hydraulic jacks use pressurized hydraulic fluid to provide force and lift loads.

• Load Holding and Safety:

• Mechanical jacks are generally self-locking. They can hold a load in position without continuous power or external braking systems, which enhances operational safety.

• Hydraulic jacks require valves to maintain pressure. If pressure is lost or leaks occur, the load can descend unexpectedly.

• Precision and Control:

• Mechanical screw jacks offer fine control over movement, making them ideal for applications where accurate positioning is essential.

• Hydraulic jacks provide faster lifting but with less precise control. This can be an obstacle in applications that demand exact placement.

• Load Capacity and Speed:

• Hydraulic jacks generally support higher load capacities and faster lifting speeds, making them suitable for heavy-duty tasks.

• Mechanical jacks lift at slower speeds and may handle lighter loads but provide more control and reliability.

• Maintenance and Reliability:

• Mechanical jacks require minimal maintenance. Therefore, they are less prone to failure, as they do not rely on fluids or seals.

• Hydraulic jacks involve more complex systems that need regular inspection and maintenance to prevent leaks and pressure loss.
