Polimak Linear Motion Technologies is committed to delivering high-performance solutions that support critical operations across a wide range of sectors. From complex machinery to structural systems, our products are designed to meet the demanding requirements of modern industries with efficiency and precision.
We specialize in a wide range of screw jacks engineered for strength, durability, and reliable performance in demanding environments. Serving industries such as defense, manufacturing, construction, entertainment, communication, energy, and beyond, our solutions are custom-made for each unique application. Driven by 45 years of technical expertise and know-how, our engineering team partners with clients to develop application-specific screw jack systems built to meet rigorous operational and safety standards.

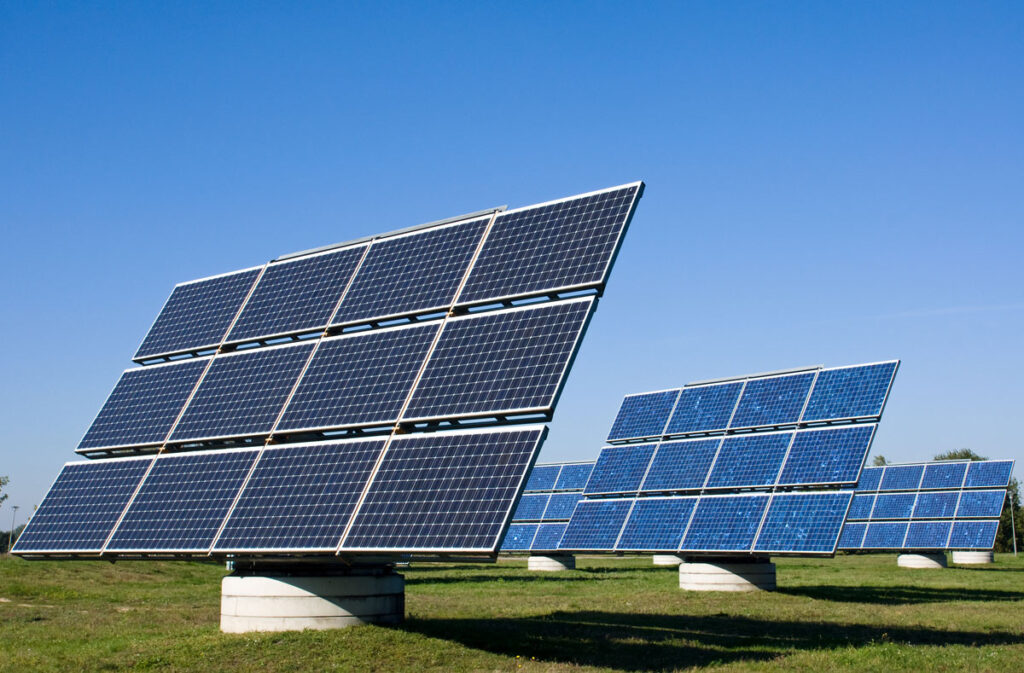

Solar Tracker Applications
In modern solar tracking systems, screw jacks play a crucial role in precisely adjusting the position of photovoltaic panels to follow the sun’s movement during the day. These mechanical actuators are especially valuable in large-scale solar farms where durability, load capacity, and minimal maintenance are essential. Designed to endure harsh outdoor environments, including high winds and temperature fluctuations, screw jacks offer stable and accurate motion control that helps maximize energy capture. Their ability to support heavy loads and provide synchronized movement across multiple axes makes them ideal for both single-axis and dual-axis trackers. By reducing the need for frequent servicing and improving overall system efficiency, screw jack mechanisms contribute significantly to the long-term performance and cost-effectiveness of solar energy installations.
Stage Lifting Applications
Stage lifting systems play a critical role in the entertainment industry, where smooth, synchronized, and safe movement of platforms and scenery is essential to the success of live performances. Theatre productions, orchestras, and other events often rely on elevated or moving stage elements. Polimak’s screw jack solutions offer high load capacity, precise vertical motion, and dependable synchronized lifting, making them ideal for safely raising and lowering heavy components. These systems provide quiet operation, a key requirement in performance environments, and enable multi-point lifting for stable and balanced stage movement. Safety is enhanced by equipping power screw jacks with gear reduction boxes that automatically stop motion during a power failure, preventing any unintended shifts. Additionally, their mechanical locking system holds the load in position without continuous power, ensuring both efficiency and peace of mind in stage automation systems.

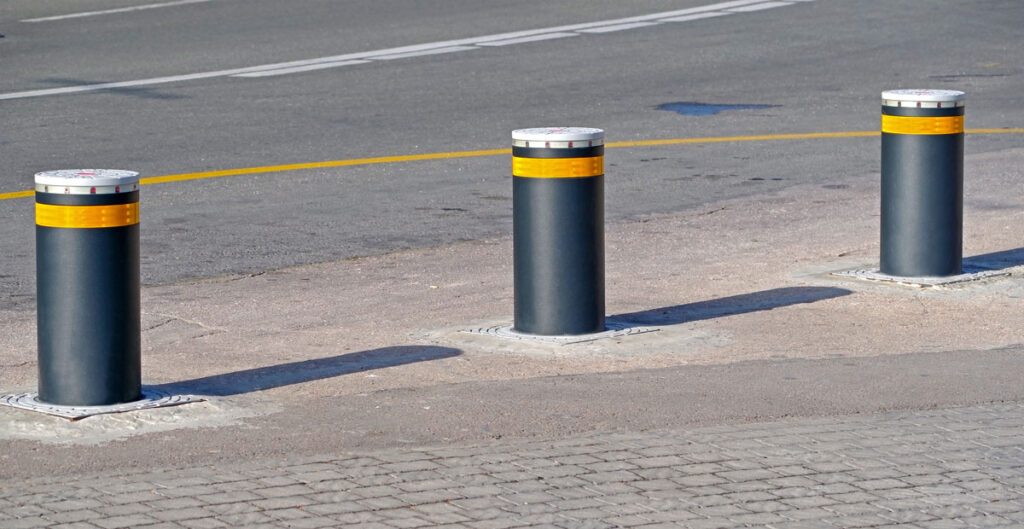

Barrier Applications
Security barriers are essential for controlling and restricting vehicle access to sensitive areas such as government buildings, airports, and commercial facilities. Among these, cylindrical wedge barriers, also know as as bollards, are a common choice due to their ability to provide a strong physical deterrent.
For heavy-duty applications, especially where bollards are constructed from massive steel components weighing several hundred kilograms, translation screw assemblies serve as the most effective mechanism. Alternatives like hydraulic or pneumatic rams often bring some limitations such as high operational costs, excessive energy consumption, and the requirement for regular specialized maintenance. Screw jack systems are the ideal choice in these applications by offering quiet operation, low maintenance requirements, and environmentally conscious designs that eliminate the risk of fluid leaks or contamination. Additionally, they deliver consistent and dependable performance even under harsh weather conditions or heavy usage, making them the preferred choice for reliable and long-lasting barrier control solutions.

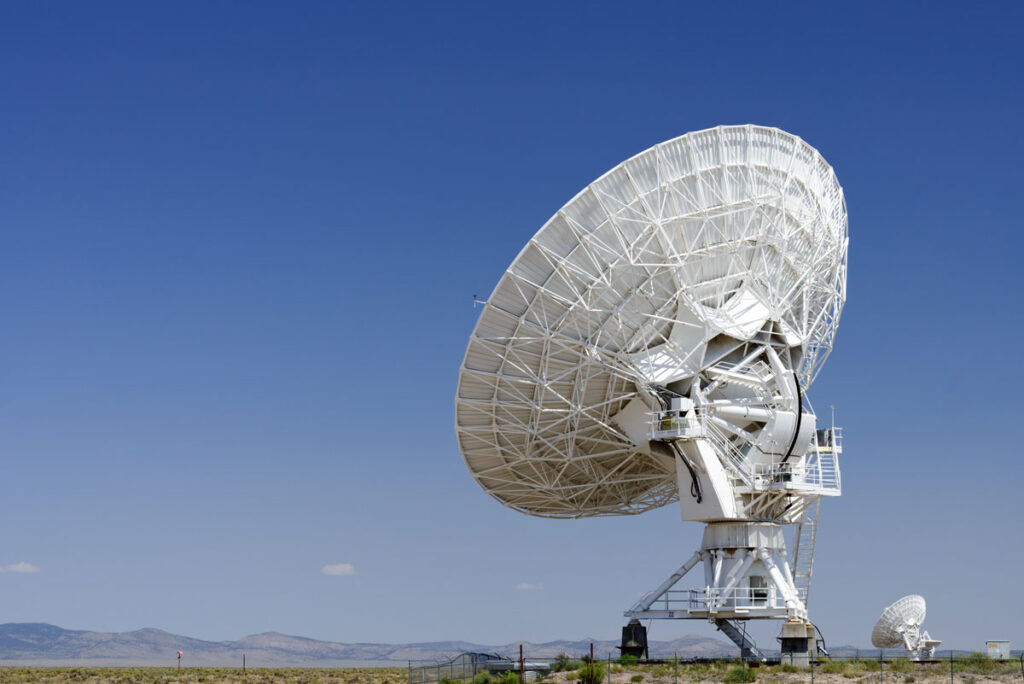

Satellite Antenna Applications
Satellite antennas are widely used in maintaining continuous and dependable communication across a wide range of industries including telecommunications, broadcasting, and defense. These systems require highly accurate and responsive movement to track satellites as they orbit, ensuring uninterrupted signal strength and quality. Screw jack mechanisms offer the precise torque control and robust performance necessary to manage the fast and smooth repositioning of satellite antennas, even in challenging environmental conditions such as strong winds or temperature extremes.
Our screw jacks are engineered with various load capacities and feature multiple clevis configurations to meet the specific demands of different antenna designs. Additional protective accessories enhance their durability and longevity in outdoor settings. Screw jacks have proven their value in both satellite antennas and military radar systems, offering consistent, accurate movement even when exposed to demanding operational environments. This makes screw jack systems a trusted choice for critical communication infrastructure requiring high-performance motion control.

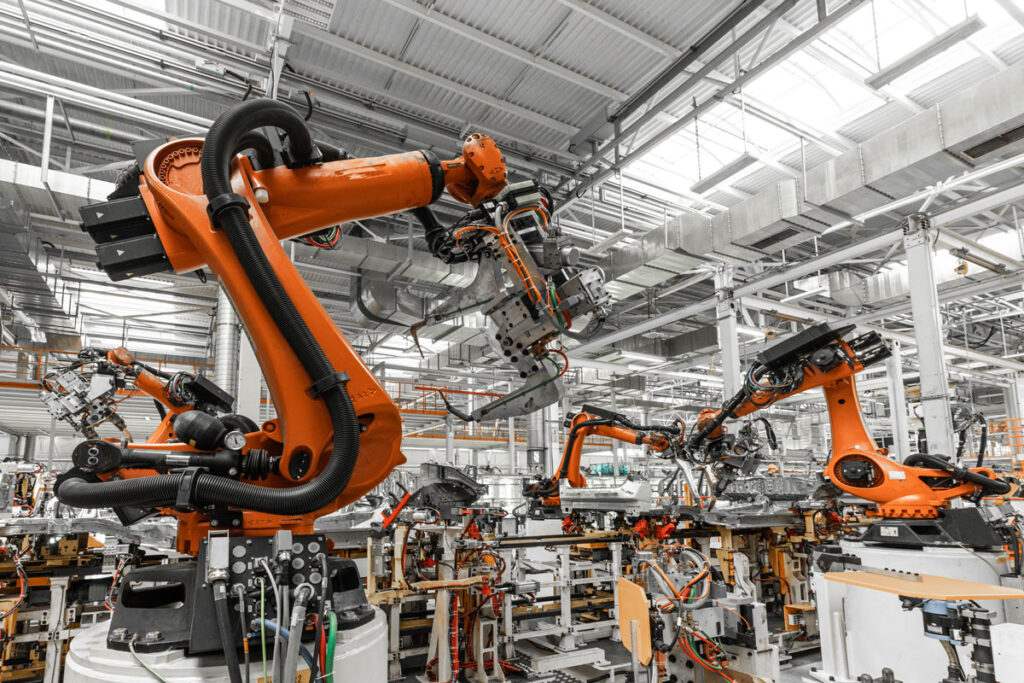

Manufacturing Machinery Applications
Modern manufacturing systems relies on automation and precision engineering to meet high production demands and maintain consistent product quality. Within the manufacturing sector, screw jack systems provide essential support by delivering controlled, stable motion for heavy-duty equipment used in machining and metal fabrication processes. Manufacturing machinery often operates in harsh industrial environments where precision, reliability, and the ability to manage heavy loads is essential.
Screw jacks are particularly effective in applications where accurate positioning and synchronized movement are required. Their ability to integrate seamlessly into a wide variety of machine designs, such as rolling mills, presses, and assembly lines, makes them a versatile solution across the manufacturing sector. Polimak’s screw jack systems enhance operational efficiency and reduce mechanical wear, helping manufacturers meet strict tolerances while minimizing maintenance downtime. Their durability, adaptability, and precision control make them a key component in modern manufacturing machinery systems.

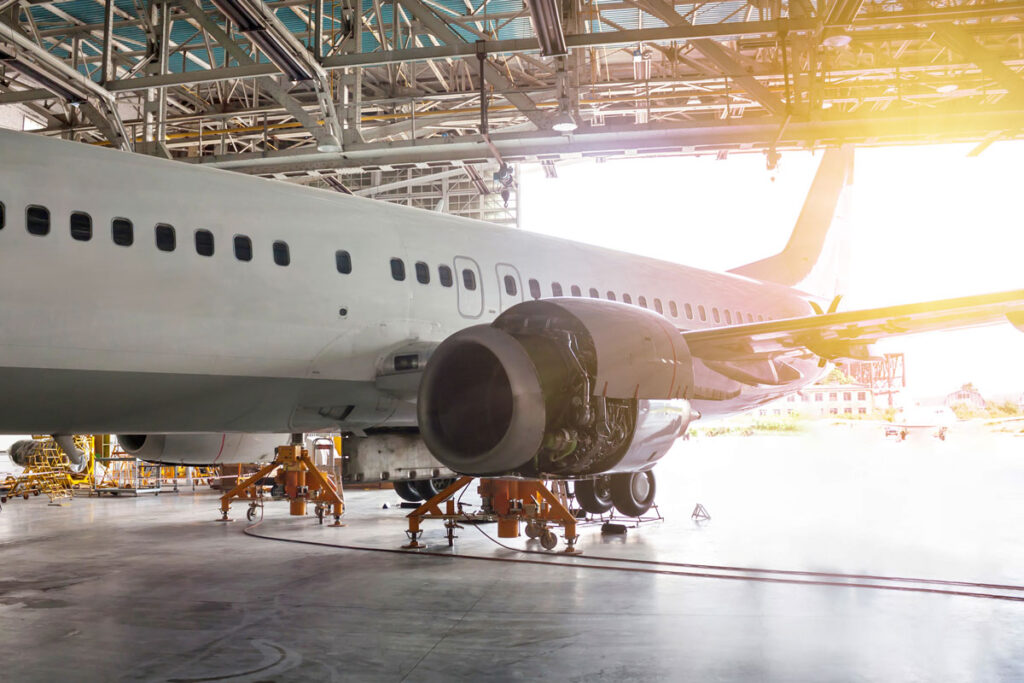

Aerospace Systems Applications
Precision, safety, and reliability are fundamental in aerospace operations, where every component and process must meet the most demanding technical standards. The industry covers a wide spectrum of complex systems, from commercial aircraft and satellites to unmanned aerial vehicles and orbital platforms. Supporting the assembly, inspection, and servicing of these high-value assets requires equipment that can perform with absolute accuracy under strict conditions.
Screw jack systems are a critical component in elevating and positioning platforms used during the handling of engines, fuselage sections, and other structural parts. These systems provide smooth, stable motion control, which is essential when working with delicate or heavy components that must be aligned with millimeter-level precision. Beyond manufacturing settings, screw jacks are also used in Ground Support Equipment where they contribute to the safe and efficient transfer, lifting, and adjustment of aircraft cargo and structural modules. With robust construction, integrated safety mechanisms, and customizable configurations, these systems offer aerospace engineers a dependable solution for improving workflow, enhancing operator safety, and minimizing the risk of mechanical failure.
Additional Industry Applications
Screw jacks are integral to a wide range of mechanical systems, offering dependable and precise linear motion for diverse industrial and commercial needs. Their adaptability and durability make them ideal for many specialized applications, including:
• Penstocks: Actuate the opening and closing mechanisms in water management and hydroelectric systems with controlled, reliable motion.
• Food Processing Machinery: Provide accurate positioning and movement in machines such as palletizers, enhancing efficiency and product handling.
• Crank Table Height Adjustments: Enable ergonomic and precise adjustments in industrial workstations to improve operator comfort and productivity.
• Missile Launching Platforms: Deliver synchronized, powerful linear motion critical for the safe and effective deployment of missile systems.
• Vehicle Ramps and Lifts: Support heavy loads and ensure smooth, stable operation for automotive access and maintenance.
• Scissor Lifts: Facilitate safe and controlled vertical lifting for personnel and equipment in construction and maintenance tasks.
• Airport Passenger Walkways: Allow for the smooth extension and retraction of boarding ramps, improving passenger flow and safety.
• Bath Lifts: Provide accessibility by providing secure and gentle lifting solutions for assisted bathing.
• Patient Transfer Trolleys: Offer smooth, controlled mobility to safely move patients in healthcare environments.
• Construction Equipment and Operations: Provide lifting, positioning, and stabilization support in demanding construction applications.
Screw jacks offer a powerful combination of strength, precision, and reliability. This makes them a versatile solution that continually adapts to meet the complex demands of modern industry applications.
