Bag Dump Stations

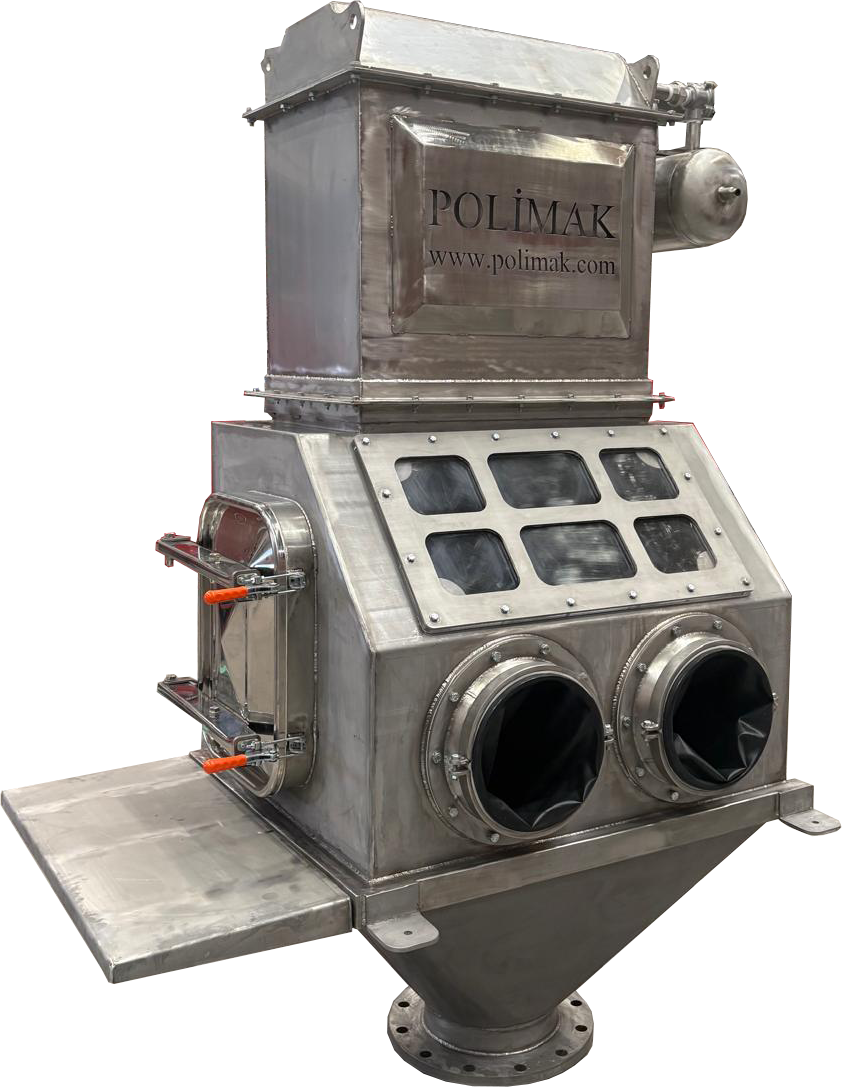

Bag dump stations are essential components in bulk material handling systems specifically designed for the manual unloading of small-volume bags. They provide a contained and ergonomic environment for operators to safely empty these bags while minimizing dust generation and material loss. These stations are capable of handling a wide variety of materials, from free-flowing granules like sugar, salt, and plastic pellets to more challenging, cohesive powders such as flour, starch, milk powder, and titanium dioxide. Integrated dust collection systems or filters help maintain a clean work area and protect operators from exposure to airborne particles.

By improving the handling of small bag quantities, these stations improve safety, cleanliness, and efficiency, making them an efficient and reliable solution for introducing small amounts of bulk material into larger processing systems. In the bulk handling industry, bag dump stations are also known as sack opening stations, bag unloaders, bag tip stations, sack tipping stations, bag emptiers, or sack emptiers.
Bag dumping stations are engineered to meet a wide variety of application requirements across industries such as food, pharmaceuticals, chemicals, and plastics. The final design of each unit depends on multiple factors specific to the process, ensuring efficient operation, operator safety, and regulatory compliance. Improving dust control, enhancing production capacity, and improving ergonomics are key objectives that demand a system tailored to the unique requirements of the material handling process. Several critical factors are taken into account during system design, as explained below:

Key Factors Influencing Bag Dumping System Design:

• Type of Bulk Material: Flow characteristics, abrasiveness, moisture content, and whether the material is free-flowing or cohesive.

• Sack Size and Weight: Determines ergonomic features such as dump height and operator access.

• Discharged Medium: Whether the bulk material is conveyed by air, screw conveyor, belt, or other mechanical means.

• Downstream Equipment Compatibility: Integration with mixers, feeders, conveyors, or pneumatic conveying systems.

• Required Discharge Speed: The rate at which material must be processed to meet production demands.

• Environmental Considerations: Need for dust containment, air filtration, or compliance with hygiene and cleanliness standards.

• Ergonomics: Operator comfort and ease of use, including posture, reach, and physical strain during operation.

• Safety Requirements: Explosion protection (ATEX), access interlocks, dust suppression, and compliance with industry regulations.
The modular design of bag dump systems provides great flexibility, enabling easy customization to suit a wide range of application requirements. This adaptability allows components to be selected and combined based on the specific needs of the process, ensuring an efficient and effective material handling solution. Key functions such as bag opening, discharging, product storage, dust collection, dosing, and conveying can be seamlessly integrated into a single cohesive unit, simplifying installation and operation.

Standard models typically consist of a simple frame with discharge hoppers, offering a basic but reliable configuration suitable for simpler processes or smaller-scale operations. By contrast, high-level models present a more comprehensive solution, incorporating multiple functions into the main frame.

These advanced systems provide enhanced automation and greater process control, making them ideal for complex applications requiring precise handling, storage, and transfer of materials while maintaining high levels of dust containment and operator safety.

Bulk Materials Handled by Bin Activators

Starch

Minerals

Coffee Powder
Spices

Limestone

Copper Oxide
Cement

Salt

Sugar

Sand

Calcium Carbonate
Alumina

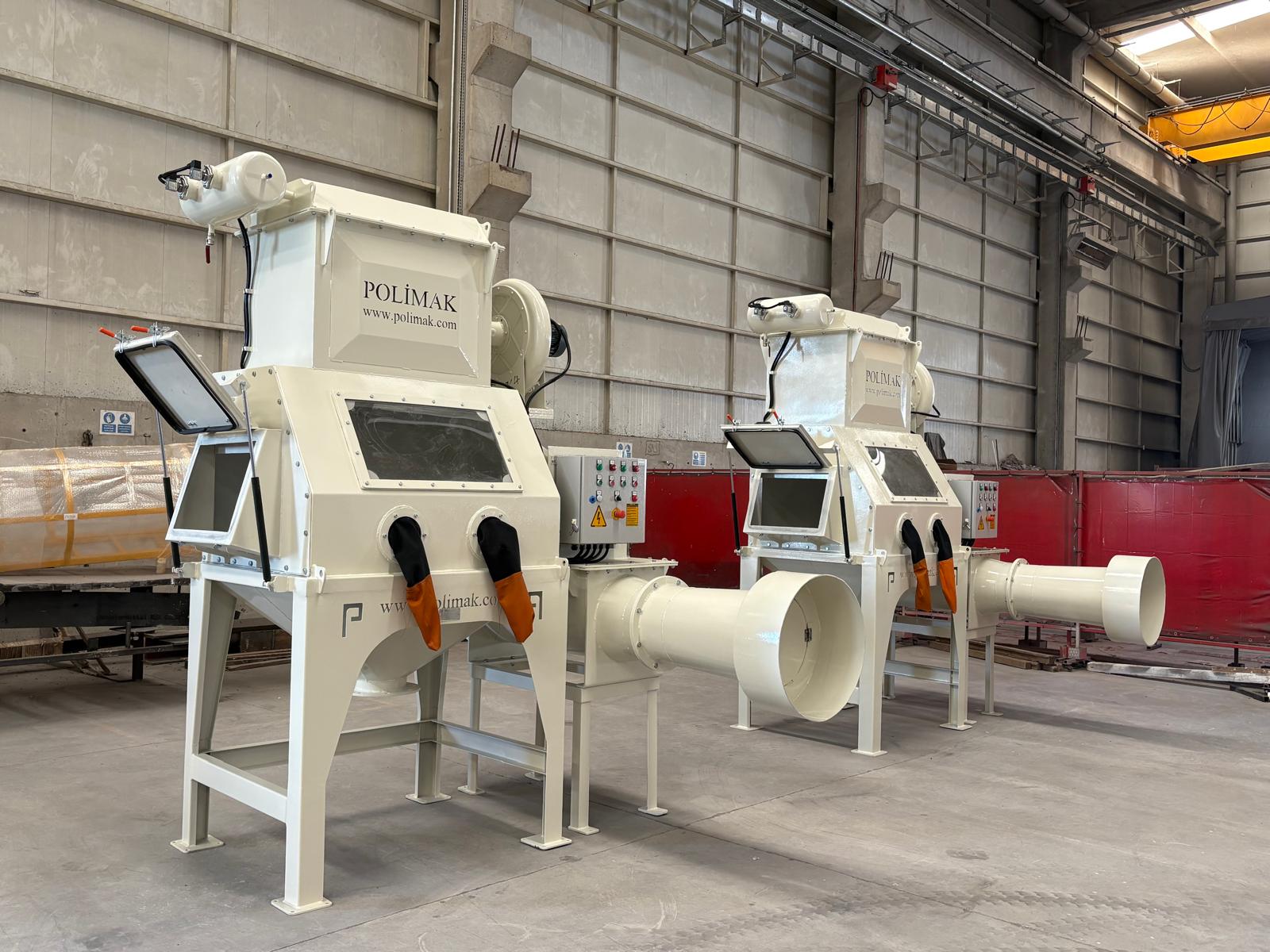

Image Gallery

Advantages & Key Benefits of Bag Dump Stations

• Operator Safety: Provides a secure and clean workspace to protect workers from hazards.

• Dust Emissions Control: Maintains dust-free air circulation to improve workplace air quality.

• Sack Handling: Designed for easy and ergonomic handling of bags during unloading.

• System Integration: Compatible with a variety of conveying and storage equipment for smooth operation.

• Model Variety: Offers a broad range of models tailored to different bulk material handling needs.

• Ease of Cleaning: Built for quick and easy cleaning to maintain hygiene standards.

• Low Maintenance: Engineered with a design that minimizes maintenance and downtime.

• Structural Durability: Constructed with durable steel to ensure long-lasting performance.

• Dust Filtration: Includes an integrated filter system to prevent the spread of dust during operation.

Polimak’s Latest Innovation in Bulk Material Handling: The Robotic Bag Dump Station

Polimak continues to drive innovation in the dry bulk material handling industry with its latest advancement, the Robotic Bag Dump Station. Designed for sustainability, efficiency, and cost-effectiveness, this latest system automates bagged material unloading, significantly reducing manual labor, operational costs, and environmental impact while ensuring a dust-free workplace.

With advanced robotic technology and seamless integration into production lines, the Robotic Bag Dump Station enables precise, dust-free, and efficient material transfer, enhancing both productivity and workplace safety across various industries. Polimak remains committed to providing sustainable and efficient solutions that meet the evolving demands of bulk material handling.
