Bag Dumping and Silo Loading

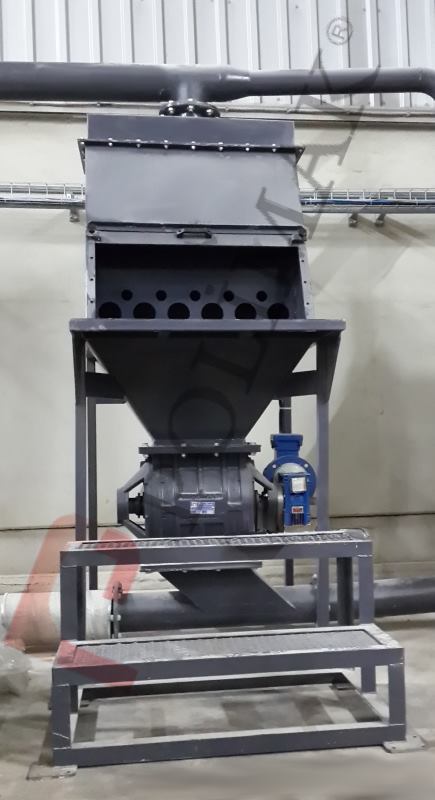

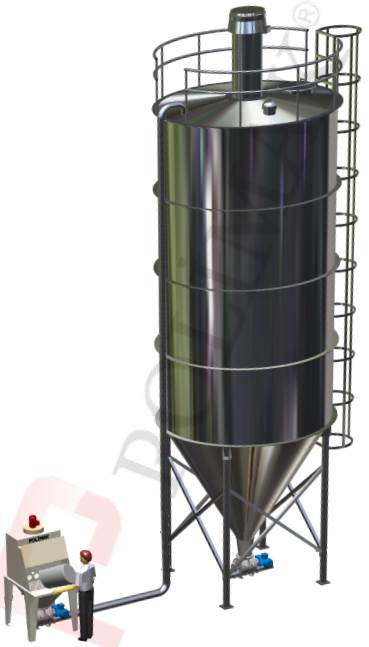

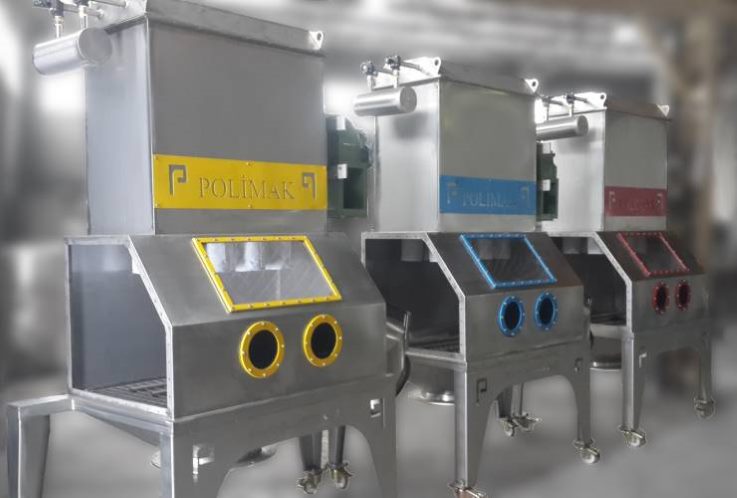

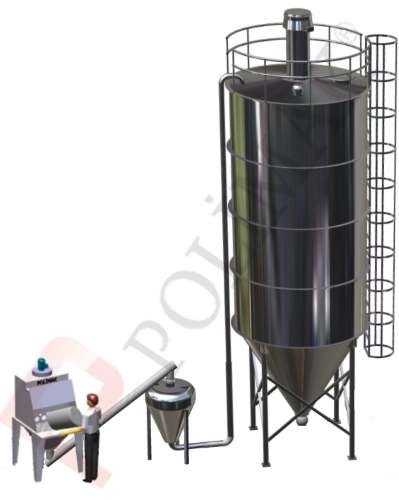

Bag dump stations integrated with silo loading systems enable the efficient transfer of raw materials from bags into storage silos. This transfer process can be carried out using either mechanical conveying equipment or pneumatic conveying systems, depending on the application requirements.

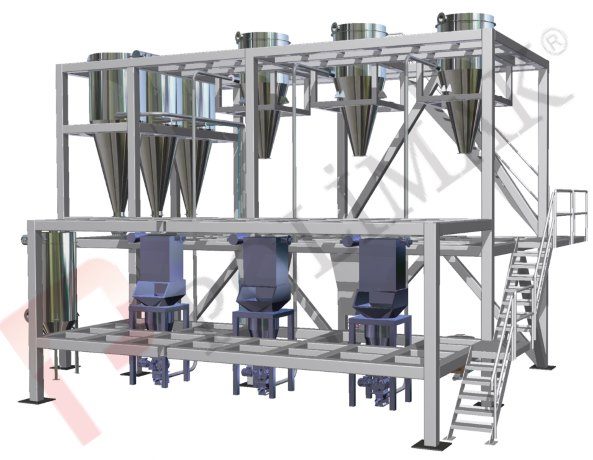

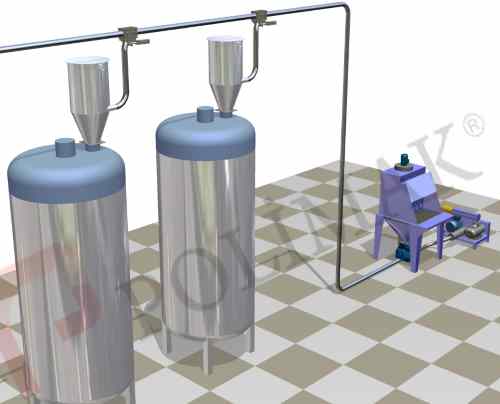

Mixer automation systems are key to achieving accurate and consistent blending of dry bulk solids according to defined formulations. These systems integrate with bag dump stations and various conveying methods to streamline material transfer and improve process control.
Key features of mixer filling with bag dump integration include:
• Efficient Material Transfer:
o Raw materials delivered in bags are emptied and conveyed to mixers using a combination of mechanical feeders or pneumatic conveying systems.
o The choice between pneumatic or mechanical feeding depends on the specific requirements of the application, such as distance, capacity, and material characteristics.
• Built-in Dosing Capabilities:
o Bag dump stations can be equipped with integrated dosing systems to precisely measure the quantity of material added to the mixer.
o This dosing process is automated using weighing systems, ensuring accurate recipe adherence and reducing human error.
• Automation and Control:
o Weighing and dosing systems work together to regulate the flow of raw materials into the mixer, allowing for consistent and effective batch quality.
o Automation increases operational efficiency and reduces the need for manual intervention.
• Dust Control and Safety:

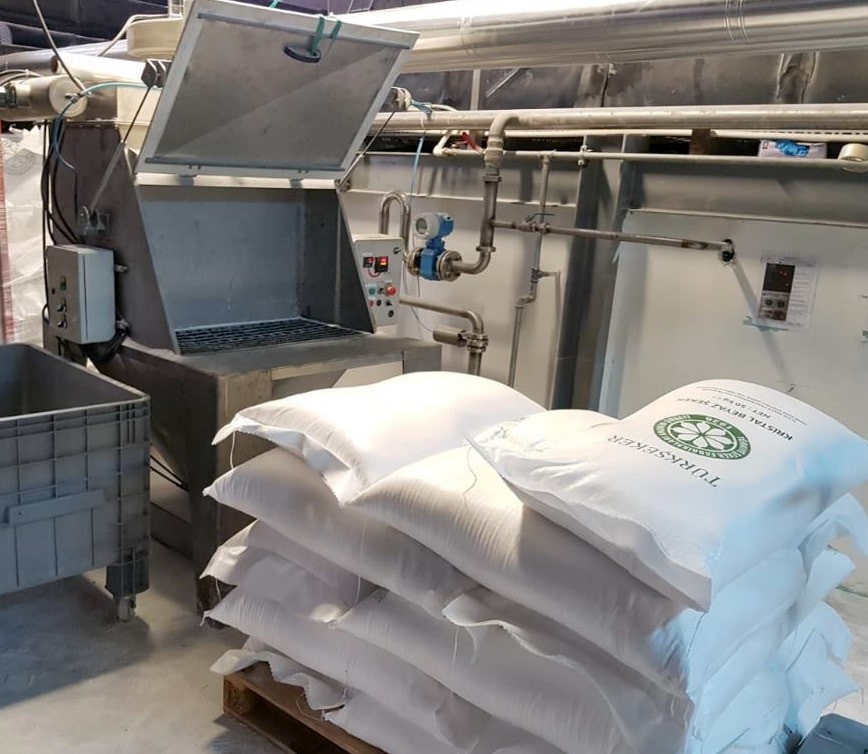

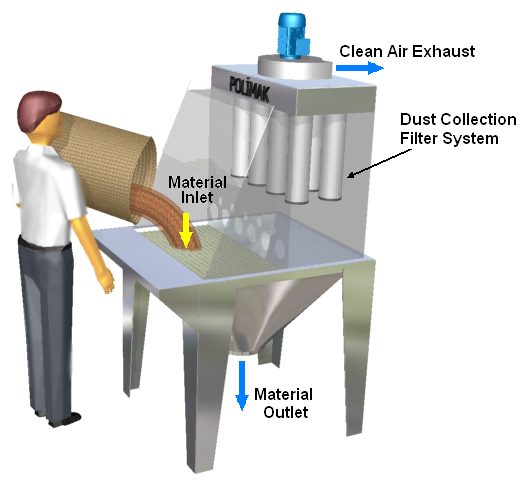

o Dust collectors can be integrated into the system to capture airborne particles generated during mixer filling.
o This helps maintain a clean work environment, protects worker health, and minimizes product loss due to dust emissions.
• Improved Process Reliability:
o The combination of precise dosing, automated controls, and effective dust management results in a more reliable and safe mixing operation, supporting overall production quality and compliance.
Bag Dumping and Packaging System Feeding
Efficient and uninterrupted bulk material transfer is essential for maintaining smooth operations in dry bulk packaging systems. These systems handle powdered or granular materials, filling them into a wide range of containers such as bags, drums, jars, and sacks.
Key features of packaging system integration with bag dump stations include:
• Continuous Material Supply:
o Bulk materials delivered in bags must be transferred to packaging machines without interruption to avoid downtime.
o The loading hopper of the packaging system should be kept full to support ongoing filling and packaging processes.
• Automatic Level Monitoring:
o Bag opener systems are equipped to monitor the product level inside the loading hopper.
o These systems automatically adjust to maintain a constant material level, preventing unwanted interruptions in packaging.
• Conveying System Options:
o Either mechanical conveying systems or pneumatic loading systems can be employed, depending on packaging speed and process requirements.
o This selection is based on factors like transfer distance, material characteristics, and throughput.
• Dust Control Measures:
o For materials with high dust content, dust collectors can be integrated to capture airborne particles during hopper loading.
o This dust collection unit enhances workplace safety, reduces environmental contamination, and minimizes product loss.
• Improved Operational Efficiency:
o Combining automated level control, appropriate conveying technology, and effective dust management ensures a reliable and efficient packaging line with minimal downtime.

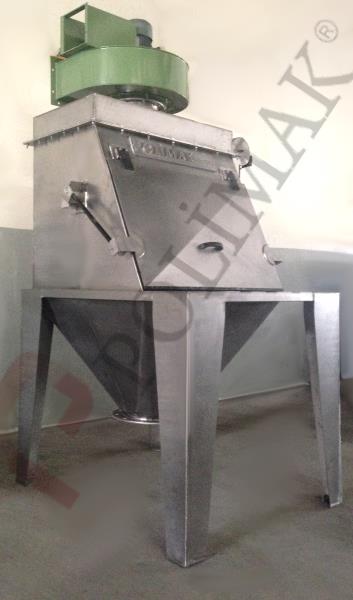

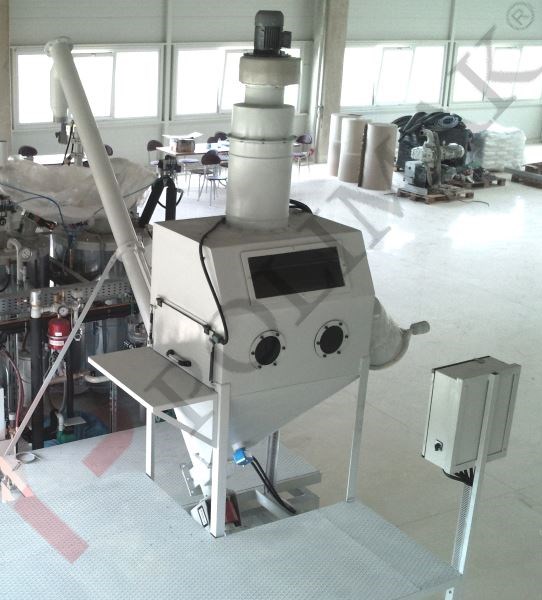

Bag Dumping, Dosing, Weighing, and Batching Systems
Efficient and precise handling of bulk materials is critical for successful dosing, weighing, and batching operations in industrial processes. Bag Dumping, Dosing, Weighing, and Batching Systems are designed to optimize these operations by integrating material transfer with automated control and dust management.
Key features of Bag Dumping, Dosing, Weighing, and Batching Systems include:
• Accurate Material Transfer:
o Bag dumping systems efficiently deliver dry bulk solids in powder and granular form directly to weighing and batching equipment.
o Maintaining a full loading hopper during operation is crucial for consistent and accurate dosing and batching.
• Automated Level Monitoring:
o Bag dump stations can continuously monitor the product level in the weighing hopper.
o This automatic control helps maintain a constant material level, preventing interruptions and ensuring smooth batch processing.
• Flexible Conveying Options:
o Either mechanical conveying systems or pneumatic loading systems can be employed, depending on the dosing speed and conveying distance.
o This selection is based on process requirements to optimize efficiency and material handling.
• Dust Control Integration:
o Dust collectors can be integrated to capture airborne particles during hopper loading for materials with high dust content.
o This equipment reduces dust emissions, improving workplace safety and environmental conditions.
• Enhanced Process Reliability:
o These systems support reliable, efficient, and clean production workflows by combining automated monitoring, appropriate conveying technology, and effective dust collection.
Bag Dump and Bulk Truck Loading Systems

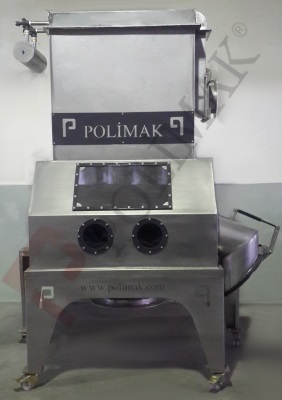

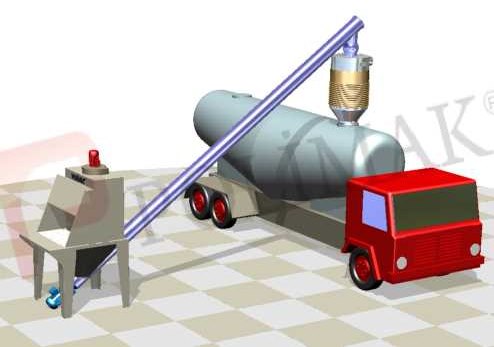

Efficient and dust-free loading of bulk materials into tanker and open trucks is essential for many bulk material handling operations. Bag Dump and Bulk Truck Loading Systems are specifically designed to handle powdered materials delivered in bags, ensuring fast, safe, and efficient transfer.
Key features of Bag Dump and Bulk Truck Loading Systems include:
• System Components:
o The system generally includes a bag dump station that discharges bulk solids from sacks into the conveying line.
o Conveying can be mechanical or pneumatic, depending on the distance and operational requirements.
o A loading bellow is used at the bulk truck filling point to prevent dust emissions and ensure a clean environment during loading.
• High-Capacity Transfer:
o Truck loading must be completed within a limited timeframe, requiring high-capacity bag dump and conveying equipment.
o Screw conveyors are generally preferred for short-distance transfers from the bag opening station to the truck loading chute.
o Pneumatic conveying systems are better suited for longer distances due to their ability to transport bulk materials quickly and efficiently through pipelines.
• Material Flow Regulation:
o A storage hopper or silo may be installed above the loading bellow to help regulate the flow of material between the inlet and outlet, ensuring steady and controlled filling.
• Automated Control Systems:
o These systems include automatic monitoring of the truck’s product level to maintain accurate loading rates and prevent overfilling.
o The control system coordinates all equipment to optimize the loading process, reducing manual intervention and improving safety.
• Optional Weighing Integration:
o An optional weighing system can be added to measure the exact amount of material loaded into the truck, ensuring precise delivery and minimizing material loss or overloading.
• Environmental and Safety Considerations:
o The design prioritizes dust control and operator safety, minimizing exposure to airborne particles during loading.
o This helps companies meet environmental regulations and maintain a safe working environment.
• Flexibility and Customization:
o Systems can be customized to handle a variety of bulk materials, truck sizes, and site layouts, providing versatile solutions for various industries such as cement, chemicals, food, and minerals.
These valves are typically actuated by pneumatic actuators and are used to automatically open and close the product flow to discharge material to downstream equipment.
Installed below silos or hoppers, these valves are used for maintenance operations of equipment such as rotary valves, screw feeders, etc., that are positioned below the butterfly valve.
These valves are typically actuated by pneumatic actuators and are used to automatically open and close the product flow to discharge material to downstream equipment.
In this design, the butterfly valve is sandwiched between two flanges. Rubber sealing at both faces of the valve provides a tight seal between the flanges and the wafer butterfly valve.
One side of the valve has a bolted flange connection, while the other side features a built-in short pipe designed for fixing a flexible sleeve.
These valves have bolted flange connections on both sides, making them suitable for installation on silos, hoppers, screw feeders, and similar applications.
Bulk tanker trucks or open trucks can be filled with powdered materials delivered within FIBC bags. These systems generally consist of bulk bag discharging station, mechanical or pneumatic conveyor and loading bellow. Big bag discharge station transfers the bulk solid from big bag to conveying system. Conveying system transfers it to truck loading area. And loading bellow is used to fill tanker truck without any dust emission. Since truck loading operations are done within limited time, high capacity big bag discharge systems and bulk material conveying systems are used. For short distances, screw conveyors are preferred to transfer material from big bag discharge station to truck loading chute. For long conveying distances, pneumatic conveying systems provide better service. There may exist a storage hopper or silo above bulk truck loading bellow to compensate material flow between inlet and outlet. Bulk bag discharge and truck filling systems have automatic control system that monitors product level in truck and operates all equipment accordingly. Optional weighing system can be added to measure the amount of material that is filled to truck.
Big bag discharge systems can deliver dry bulk solids in powder and granular form to weighing and batching systems. The loading hopper of the weighing system should remain full during dosing and batching. Big bag discharge systems can monitor the product level in the loading hopper and maintain a constant level automatically. Depending on the dosing speed and conveying distance, mechanical conveying systems or pneumatic loading systems may be used. Dust collectors can be employed to prevent dust emissions during hopper loading, especially for materials with high dust content.
Dry bulk packaging systems are used to fill powdered or granular materials into bags, drums, jars, sacks, etc. Bulk materials delivered in big bags must be transferred to packaging machines without interruption. The loading hopper of the packaging system should remain full during the filling and packaging process. Big bag discharge systems can monitor the product level in the loading hopper and maintain a constant level automatically. Depending on the packaging speed, mechanical conveying systems or pneumatic loading systems can be selected. Dust collectors can be used to prevent dust emissions during hopper loading, especially for materials with high dust content.
Mixer automation systems are used to mix dry bulk solids according to specific recipes. Raw materials delivered in FIBC bags can be transferred to mixing units through a combination of conveying equipment and bulk bag discharge systems. Depending on the type of application, pneumatic conveying or mechanical feeding systems can be used to fill mixers. Big bag discharge stations can be manufactured with built-in dosing systems. The amount of raw material to be loaded into the mixer is automatically controlled with the help of a weighing and dosing system. Dust collectors can be used to prevent dust emissions during the mixer filling process.
Bulk material stored in big bags can be automatically filled into small bags. Big bag discharge systems come with optional built-in bag filling units. For low filling capacities, these units are installed below the big bag discharge hopper, providing a practical and cost-effective solution. Both big bag discharging and bag filling operations can be handled by a single, compact system. For higher bag filling needs, bag filling machines are installed near the bulk bag discharge stations. Pneumatic conveying systems or mechanical conveyors can be used to transfer bulk material from the FIBC bag discharge station to the bag or sack filling system.

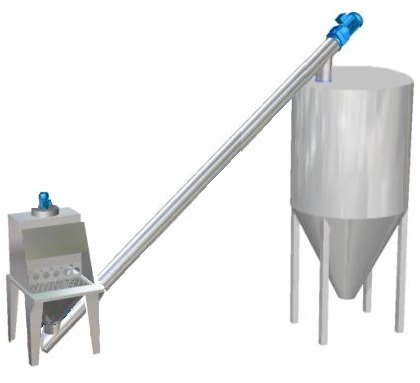

Mechanical conveyors can be used for silo loading from big bag discharge stations. Screw feeders, bucket elevators, rotary valves, or chain conveyors are connected to big bag discharge stations to fill silos. The selection of conveying equipment directly depends on the conveying distance, height, transferred material, and capacity. Bucket elevators are preferred for high silos, while screw feeders are preferred for shorter silos and short distances. The big bag discharge system can be installed on top of the silo for faster filling. In this case, rotary valves or butterfly valves are better choices as they provide simple flow control. Dust collection systems may be required depending on the dust content of the bulk solid. During silo loading, air content in the silo escapes to the atmosphere and carries some dust along with it. Vacuum fans and jet filters in dust collectors prevent dust emissions into the environment. The collected dust is sent back to the silo, thus preventing product loss.
Pneumatic conveying systems installed after bulk bag discharge units transfer bulk material through conveying pipelines to fill silos. This configuration is useful in applications where high transfer rates and long conveying distances are needed. In production lines where raw materials are stored in warehouses far from storage silos, bulk bag discharge stations can be installed close to the warehouses, and pneumatic conveying systems are used to fill silos from long distances. This design reduces the need for forklifts and cranes for bulk material transfer on the production site and increases overall efficiency.
Pneumatic conveying systems used for silo loading utilize blower pumps or compressors. Motor power, pipeline diameter, and equipment selection depend on the type of bulk material, transfer distance, silo height, and transfer capacity. Level sensors, jet filters, and other equipment are installed on storage silos to ensure the proper operation of the silo filling system.
Pneumatic conveying systems installed after bag dump units transfer bulk material through pipelines to fill silos. This configuration is ideal for applications requiring high transfer rates and long conveying distances. In production lines where raw materials are stored in warehouses far from storage silos, bag dump stations can be installed close to warehouses, allowing pneumatic conveying systems to transport materials over long distances. This design reduces the excessive use of forklifts and cranes for bulk material transfer within the production site, improving overall efficiency.
Pneumatic transfer systems used for silo loading utilize blower pumps or compressors. Motor power, pipeline diameter, and equipment selection depend on factors such as the type of bulk material, transfer distance, silo height, and transfer capacity. Level sensors, jet filters, and other equipment are installed on storage silos to ensure the proper operation of the silo filling system.
Mechanical conveyors can be used for silo loading from bag dump stations. In this configuration, screw feeders, bucket elevators, rotary valves, or chain conveyors are connected to bag dump stations to fill silos. The selection of conveying equipment depends on factors such as conveying distance, height, material properties, and capacity. Bucket elevators are preferred for high silos, while screw feeders are ideal for shorter silos and short distances. Bag dump systems can be installed on top of the silo for faster filling. In such cases, rotary valves or butterfly valves are better choices as they provide simple flow control.
Dust collection systems may be required depending on the dust content of the bulk solid. During silo loading, air inside the silo escapes to the atmosphere, carrying dust particles with it. Dust collectors equipped with a vacuum fan and jet filter capture airborne dust. The collected dust is returned to the silo, preventing product loss and ensuring a cleaner environment.
The inlet skirt is an optional feature designed to extend the lifespan of the flexible connector sleeve. Its upper portion is attached to the outlet port of the upstream equipment and extends down into the bin activator’s inlet port. The primary function of the inlet skirt is to serve as a protective shield, safeguarding the flexible connector seal from wear and damage.
A vibratory motor is externally mounted to the bin activator. When powered, the motor generates vibrations that facilitate a steady flow of dry bulk materials within the system. Depending on the application requirements, one or two vibratory motors can be installed externally.
To accommodate a bin activator, the cone of a silo must be shorter than usual, resulting in a wider outlet. A flange supplied with the bin activator is separately welded to the silo’s outlet, slightly above the opening, at the production site. Once installed, the vibrating bin discharger is securely bolted to the flange, ensuring a stable and reliable connection.
Special spring suspension links and an engineered polymer seal work together to create a flexible connection between a vibrating bin discharger and the equipment positioned above it.
The proper design and installation of the polyurethane seal prevent it from slipping off and ensure a secure seal, eliminating the risk of dry bulk material leakage. Additionally, the seal offers high stress resistance and long-term durability, withstanding stresses caused by motor vibrations, pressure conditions, and other operational factors.
Externally installed spring suspensions provide full resilience to the vibrations of the cone head. They ensure that the generated vibrations affect only the cone itself rather than the upstream equipment structure.
An internally tapered, conical-shaped baffle plate is positioned at the center of the bin activator’s diameter. The baffle is rigidly attached to the equipment body using structural steel components. It facilitates bulk material flow from upstream equipment by directly inducing vibrations into the material.
A secondary deflector plate reduces the weight of the bulk material in the lower portion of the bin activator by acting as a wedge beneath the material, directing it around the areas adjacent to the cone’s surface.
Polimak baffle plates are available in various configurations, including convex and cone plates, and in different angles (15°, 30°, 45°, or even 60°) depending on the flow characteristics of the handled bulk material and the specific application requirements.
