Screw Conveyors & Feeders

Transporting bulk materials within an industrial facility is generally achieved by using two conveying methods: mechanical and pneumatic conveying. Among the mechanical options, screw conveyors are among the most widely used and reliable systems for transporting dry bulk solids in a controlled and efficient manner. These systems are essential for ensuring continuous material flow across various stages of production, especially in operations requiring enclosed and dust-free transportation.

Bulk material handling processes in a variety of industries including plastics manufacturing, power generation, construction, food processing, and mining rely heavily on screw conveyors and screw feeders. These systems are designed to transport bulk solids in powdered and granular form between storage silos, processing equipment, and packaging lines. Their simple design, low maintenance requirements, and ability to handle a wide variety of materials make them an ideal choice for many industrial applications.

Screw conveyors function by using a rotating helical screw blade housed inside a trough or a fully enclosed tube. As the screw turns, it pushes bulk materials along the length of the conveyor in a steady and consistent flow. This mechanical action ensures that dry bulk solids are moved efficiently from one point to another within a production or processing facility. The design allows operators to regulate both the speed of the screw and the conveyor’s angle, providing precise control over the rate at which materials are fed into subsequent processing steps or packaging. Screw conveyors are adaptable to various layouts and process requirements, making them a versatile solution for bulk material handling across many industries.

Screw conveying systems can be installed horizontally, inclined, or vertically, depending on plant layout and process needs. Bulk solids commonly conveyed include cement, flour, sand, ash, plastic pellets, minerals, and chemical powders.
There are numerous types and configurations of screw conveyors, each tailored to specific operational needs. Common models include:

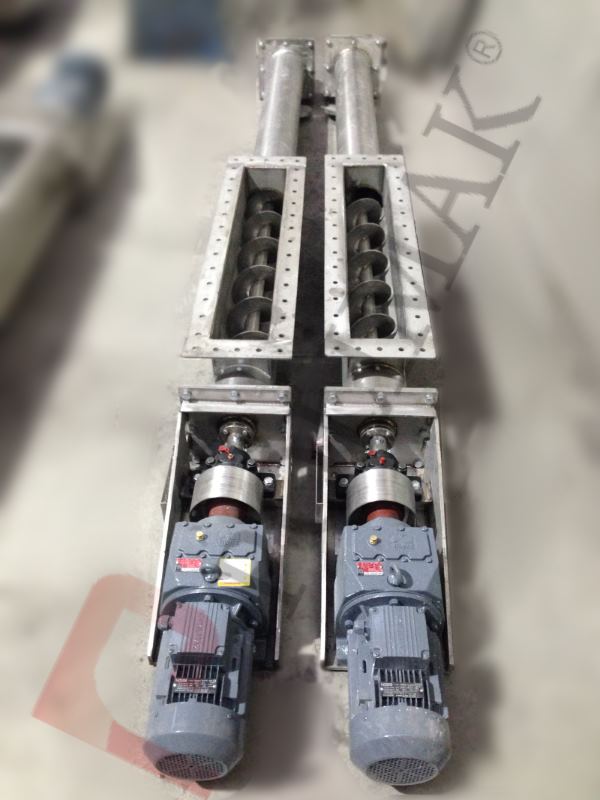

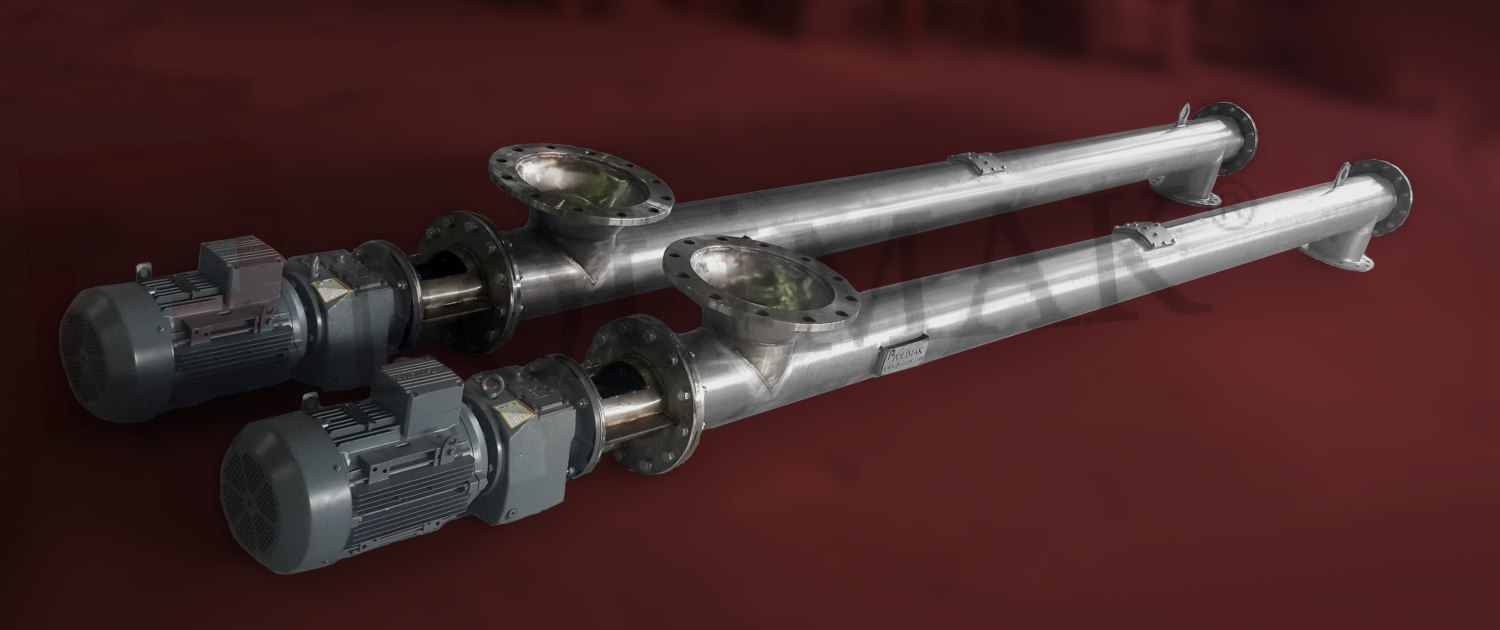

• Tubular Screw Conveyors

• U Type Screw Feeders

• Stainless Steel Screw Conveyors

• Hardox Screw Conveyors

• Screw Conveyors with Multiple Inlet Ports

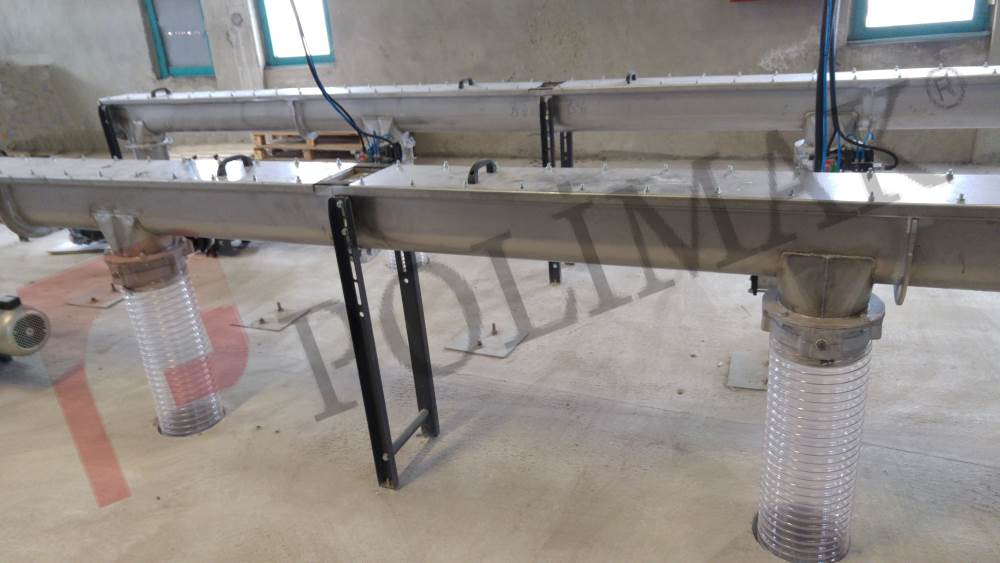

• Screw Conveyors with Multiple Outlet Ports

• Mobile Screw Conveyors with Hopper

• Dosing Screw Feeders

• Microdosing Screw Feeders

• Custom Designed Screw Feeders and Conveyors

Choosing the right design among these types and configurations depends on several key operational factors, such as:

• Physical characteristics of the bulk material

• Desired conveying capacity

• Operating temperature

• Required horizontal or vertical conveying distance

Once these factors are defined, the conveyor’s technical design parameters must be selected accordingly. Important design considerations include:

• Screw diameter

• Screw pitch

• Shaft type

• Motor power

• Inlet and outlet dimensions

• Material and shape of the casing

With 45 years of experience in bulk material handling industry, Polimak designs and manufactures custom screw conveyors that meet the exact requirements of each application. Whether the task involves feeding small batches of fine powder or transferring large volumes of abrasive materials, Polimak’s engineering team ensures that each screw conveyor is optimized for durability, efficiency, and reliable performance. From compact dosing feeders to heavy-duty industrial screw conveyors, each system is built to deliver long-term value and seamless integration into the customer’s process.

Screw Conveyor vs. Screw Feeder:
Understanding the Difference

In bulk material handling, the terms screw conveyor and screw feeder are sometimes used interchangeably, but they serve distinct purposes despite having similar components. Both systems use a rotating helical screw enclosed within a tubular or U-shaped casing to move powders or granular materials from an inlet to an outlet. However, their operational goals and design priorities are different from each other.

The main distinctions between screw conveyors and screw feeders can be summarized as follows:
• Screw Conveyors:

o Primarily designed to transport bulk materials efficiently from one location to another.

o Operate at a maximum or optimized speed to move material quickly.

o Typically handle free-flowing or easily movable solids.

o Do not usually control or regulate the rate at which material is discharged.

o Commonly used in applications such as transferring material from silos, emptying dust collectors, loading trucks, and providing continuous feed to processes.

• Screw Feeders:

o Engineered to deliver materials in a precise and controlled flow.

o Designed to maintain a predetermined and often adjustable feed rate.

o Essential for accurate dosing and feeding tasks where consistent throughput is critical.

o Performance depends heavily on screw geometry, including diameter, pitch, and body shape, to achieve precise material handling.

o Widely used in volumetric or gravimetric dosing systems, ensuring exact quantities of bulk material are introduced into a process.

Understanding these differences is critical for selecting the right equipment to optimize process efficiency and maintain product quality in bulk material handling operations.

Image Gallery

Bulk Materials Handled by Screw Conveyors

Starch

Minerals

Coffee Powder
Spices

Limestone

Copper Oxide
Cement

Salt

Sugar

Sand

Calcium Carbonate
Alumina
