Pneumatic Conveying of Baghouse & ESP Filter Dusts

Pneumatic conveying systems are commonly used for the efficient transfer of dust particles collected from baghouse and electrostatic precipitator (ESP) filters. These systems provide a reliable method for handling and transporting filter dusts in a controlled, dust-free manner, minimizing environmental impact and maintenance requirements.

Baghouse filters use fabric filter bags to capture air containing suspended dust particles. As the air flows through the fabric, the particles are kept on the surface, allowing clean air to exit the system. Periodic cleaning mechanisms, such as reverse air or pulse-jet systems, remove the accumulated dust from the bags, causing it to fall into hoppers for collection and disposal.

Electrostatic precipitators, on the other hand, remove fine particles from gas streams by applying an electrical charge. Air with suspended dust particles is passed through a high-voltage electrical field, where particles become charged and are moved to oppositely charged collection plates. The accumulated dust is then periodically removed from the plates by mechanical shaking, causing it to fall into hoppers.
The collected dust from both systems is discharged through hoppers located at the base and transferred to containers, trucks, or storage silos. This transfer is managed using various conveying systems. Among these, pneumatic conveying offers a clean, safe, and efficient solution that minimizes dust release and system wear. Unlike mechanical equipment such as screw conveyors, bucket elevators, and chain drives (which are susceptible to breakdowns and require frequent maintenance), pneumatic systems have fewer moving parts, leading to higher reliability, reduced downtime, and safer operation overall.

Key Characteristics of Pneumatic Dust Conveying Systems

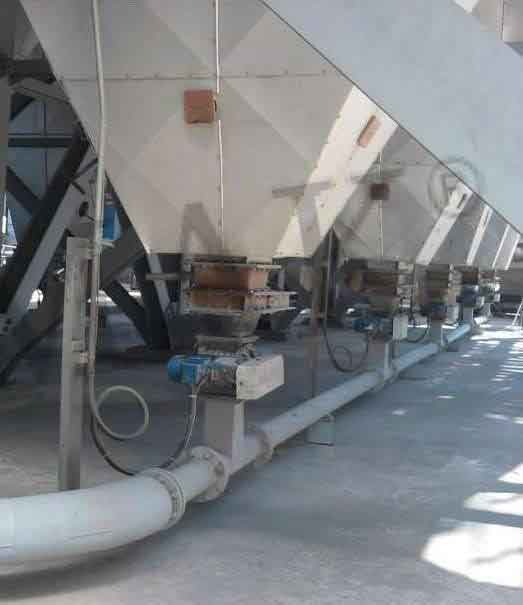

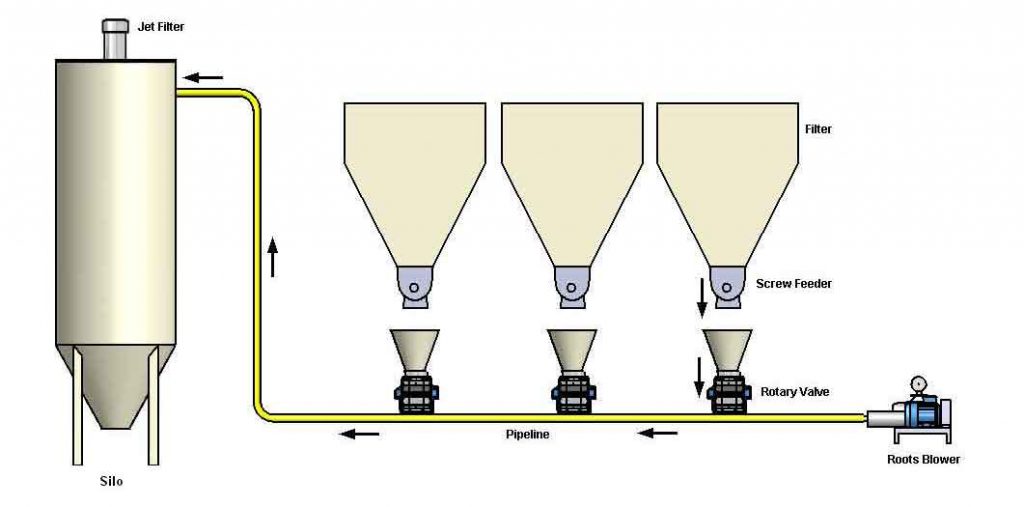

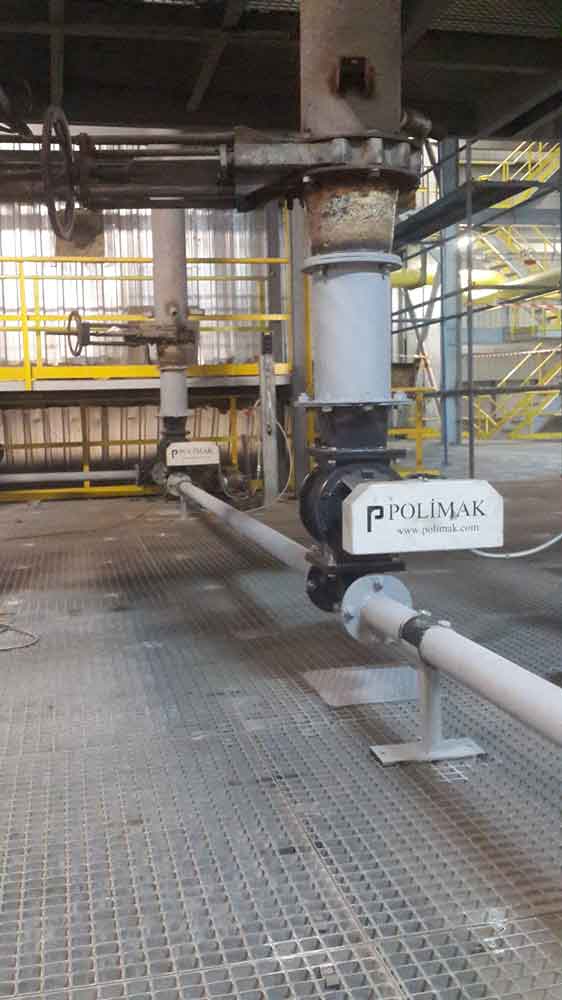

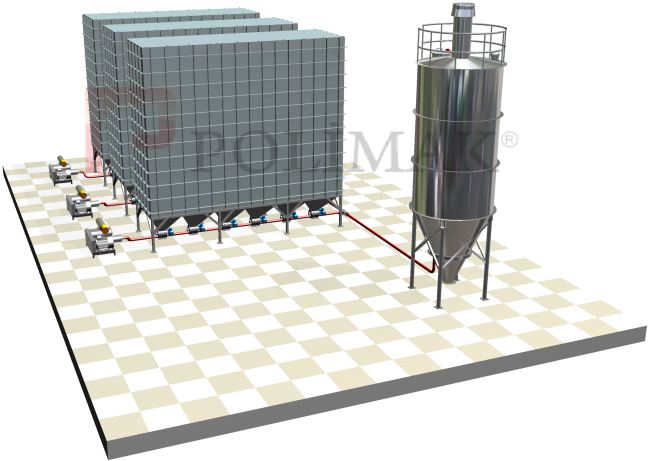

A pneumatic conveying system transfers the collected dust from filter or cyclone hoppers to a storage silo. Rotary valves are installed beneath each baghouse hopper to control the discharge of dust. A pneumatic conveying pipeline is positioned below the rotary valves to collect and transport the dust from the hoppers.

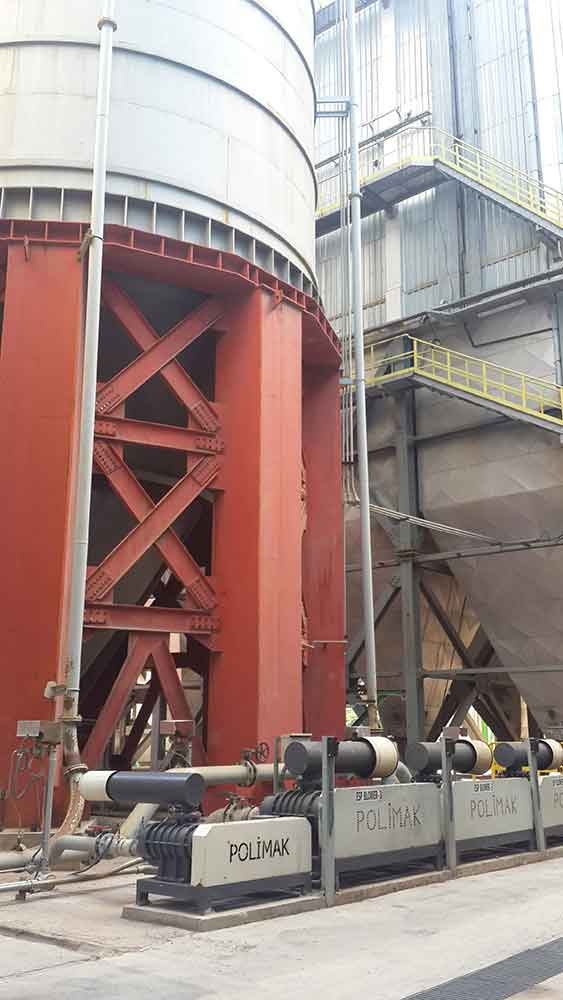

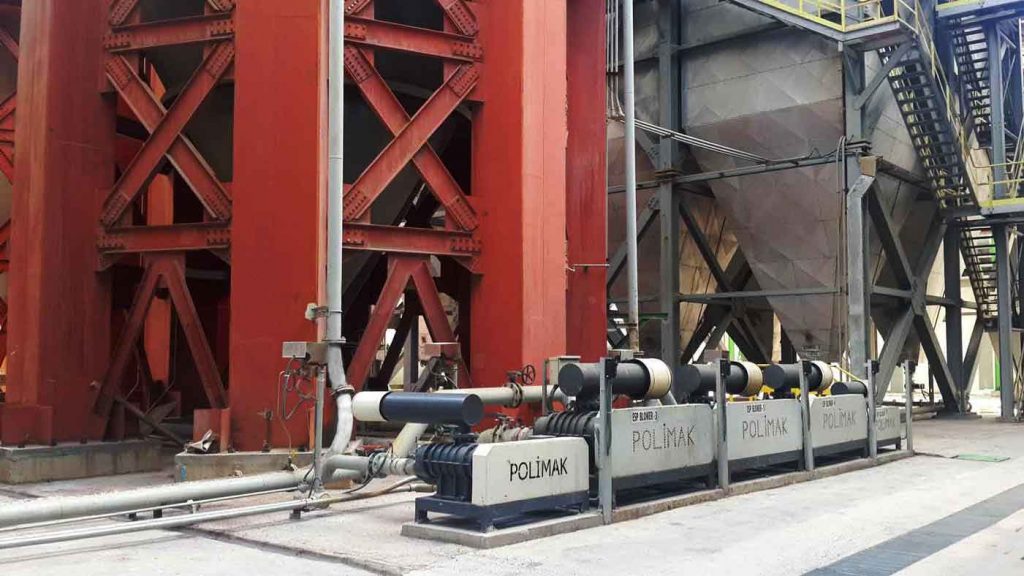

Pressurized air supplied by a roots-type blower propels the dust through the pipeline to the silo. A reverse jet pulse filter is installed above the silo to handle the exhaust air from the conveying process. It releases the pressurized air while retaining the dust inside the silo, preventing emissions and ensuring that only clean air is discharged..

Depending on the system configuration, multiple bag filters or dust collectors can be connected to the same pneumatic transport line, allowing centralized dust handling from various sources. Additionally, pneumatic conveying systems can be designed to operate either using pressurized air (positive pressure) or vacuum air (negative pressure), depending on process requirements and facility layout.

This flexibility in design ensures efficient dust transfer, minimizes dust emissions, and supports reliable and safe operation across a variety of industrial environments.

Key Components of a Dust Conveying System

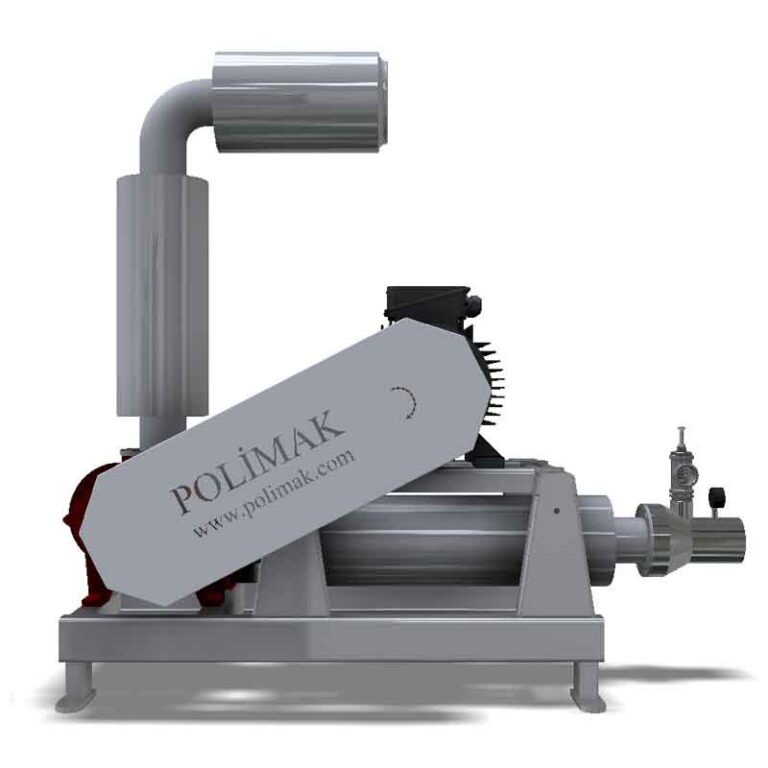

Roots
Blower

Discover

Rotary
Valve

Discover

Pneumatic Conveying Pipeline

Discover

Silo Top
Jet Filter

Discover

Telescopic Truck
Loading Spout

Discover

Advantages and Key Benefits of Pneumatic Dust Conveying Systems

• Pneumatic pipelines offer flexible routing options that conform to the design of different facilities. This flexibility simplifies installation in tight, congested, or architecturally complex areas where traditional mechanical conveyors would be difficult or impossible to fit.

• Filter dust can be conveyed efficiently over long distances through the pipeline system, making it ideal for large industrial plants where dust needs to be transported from multiple collection points to a central storage or disposal area without loss of material or system performance.

• Pneumatic conveying systems take up less space than mechanical conveyors due to their compact pipelines and fewer large components. This makes them ideal for plants with limited floor area or complex design.

• Dust is transported within enclosed pipelines, which greatly minimizes emissions. This design also reduces the risk of leaks from moving parts.

• By including fewer rotating and moving parts than mechanical systems, the pneumatic conveying system lowers the risk of equipment failure. This reduction in complex components helps minimize maintenance needs and unexpected stoppages, ensuring smoother and more reliable operation.

• Maintenance costs for pneumatic conveying systems are generally lower than those for mechanical conveying systems due to the reduced number of moving parts and simpler design. This leads to less frequent repairs and decreased downtime, resulting in cost savings during the system’s operational life.

Open Truck and Tanker Loading Chute

Tanker and open truck loading bellows, also known as loading chutes or loading spouts, are essential components for the safe, efficient, and dust-free transfer of dry bulk solids into tankers and open trucks. These bellows provide a flexible, sealed connection between the silo discharge and the vehicle, effectively preventing dust emissions during the loading process.

Baghouse and electrostatic precipitator (ESP) filter dust particles are extremely fine, so special care must be taken during silo discharge and truck/tanker loading. Using loading bellows ensures that dust is contained, minimizing environmental pollution and improving workplace safety. This dust control method helps helps meet environmental regulations and reduces the risk of respiratory hazards for workers.

In summary, loading bellows play a critical role in maintaining the clean and safe transfer of fine particulate materials from storage silos to bulk solids transportation vehicles.

Practical Applications of Filter Dust Conveying Systems

Iron and Steel Plants – Blast Furnace Dedusting Systems

Discover

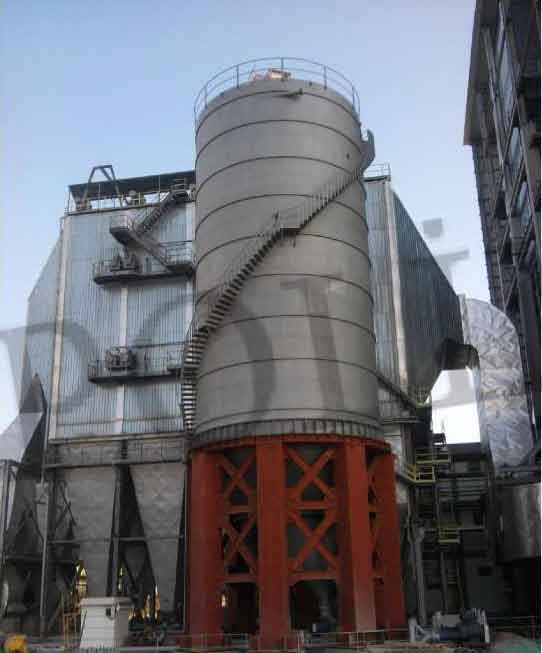

Coal-Fired Power Plants – Electrostatic Precipitators

Discover

Iron
Foundries – Baghouse Filters

Discover

Food
Industry – Dust Collectors

Discover

Chemical
Industry – Dust Collection Systems

Discover

Bulk Materials Handled by Mobile Truck Loading System with Vacuum System

Starch

Minerals

Coffee Powder
Spices

Limestone

Copper Oxide
Cement

Salt

Sugar

Sand

Calcium Carbonate
Alumina
