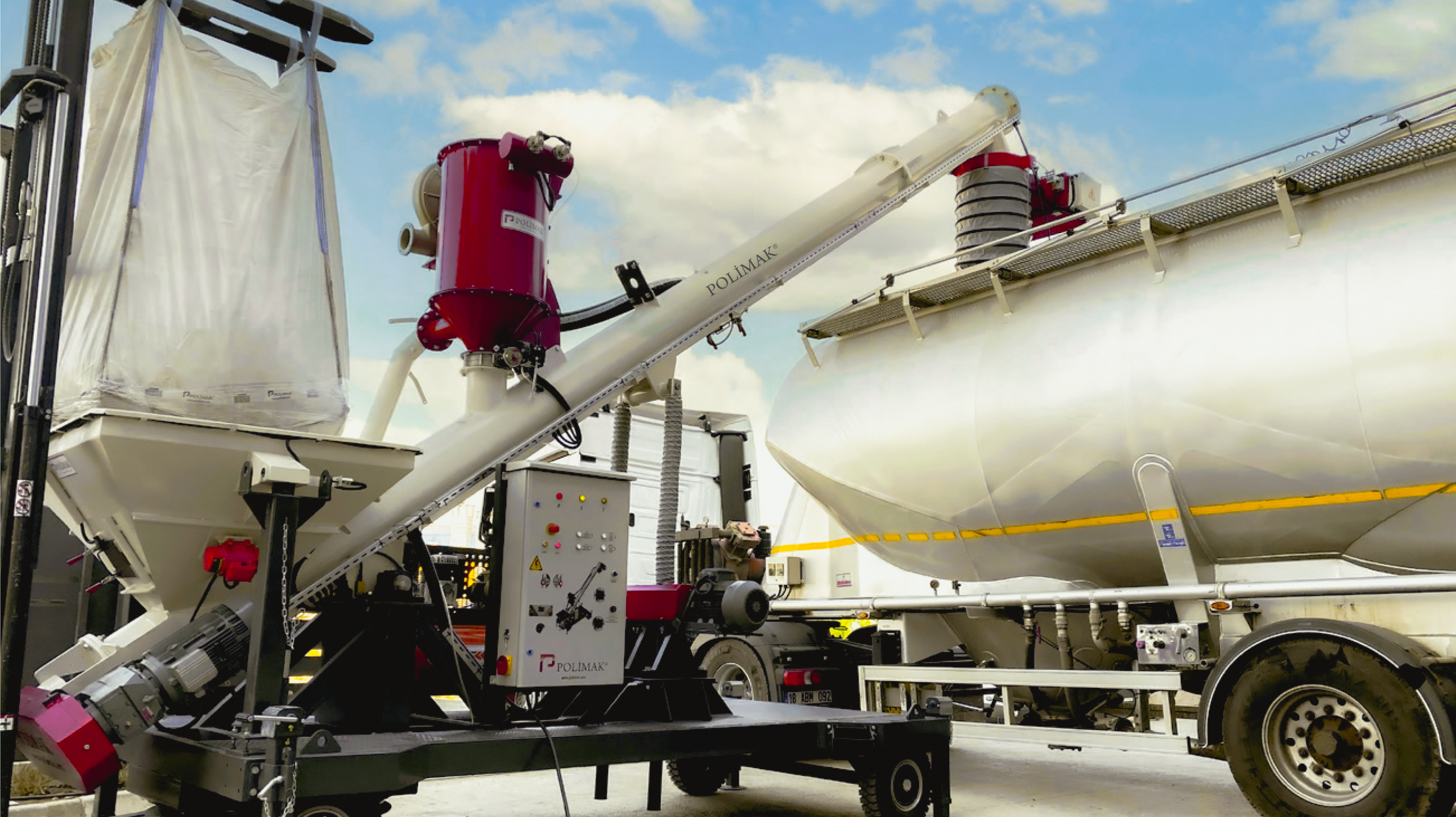

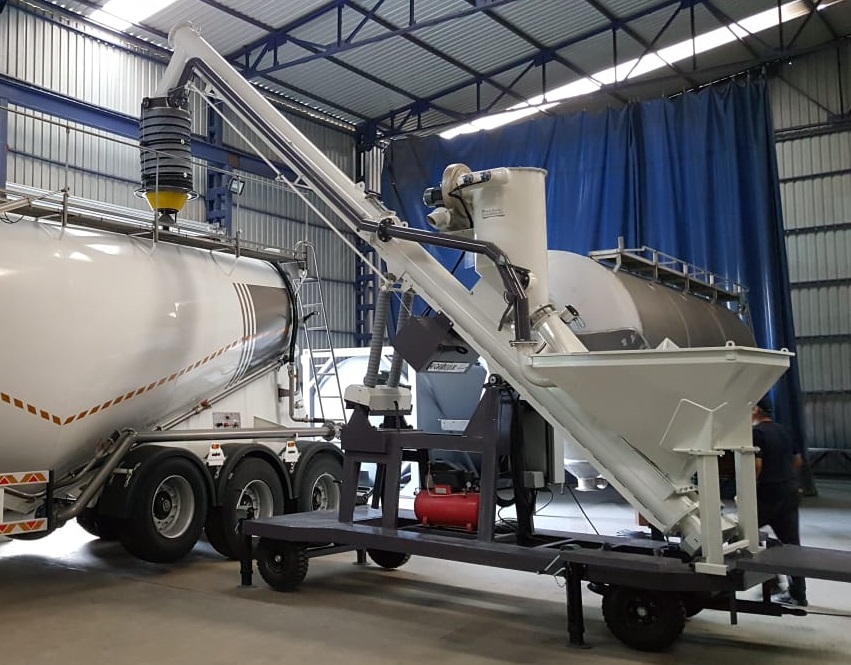

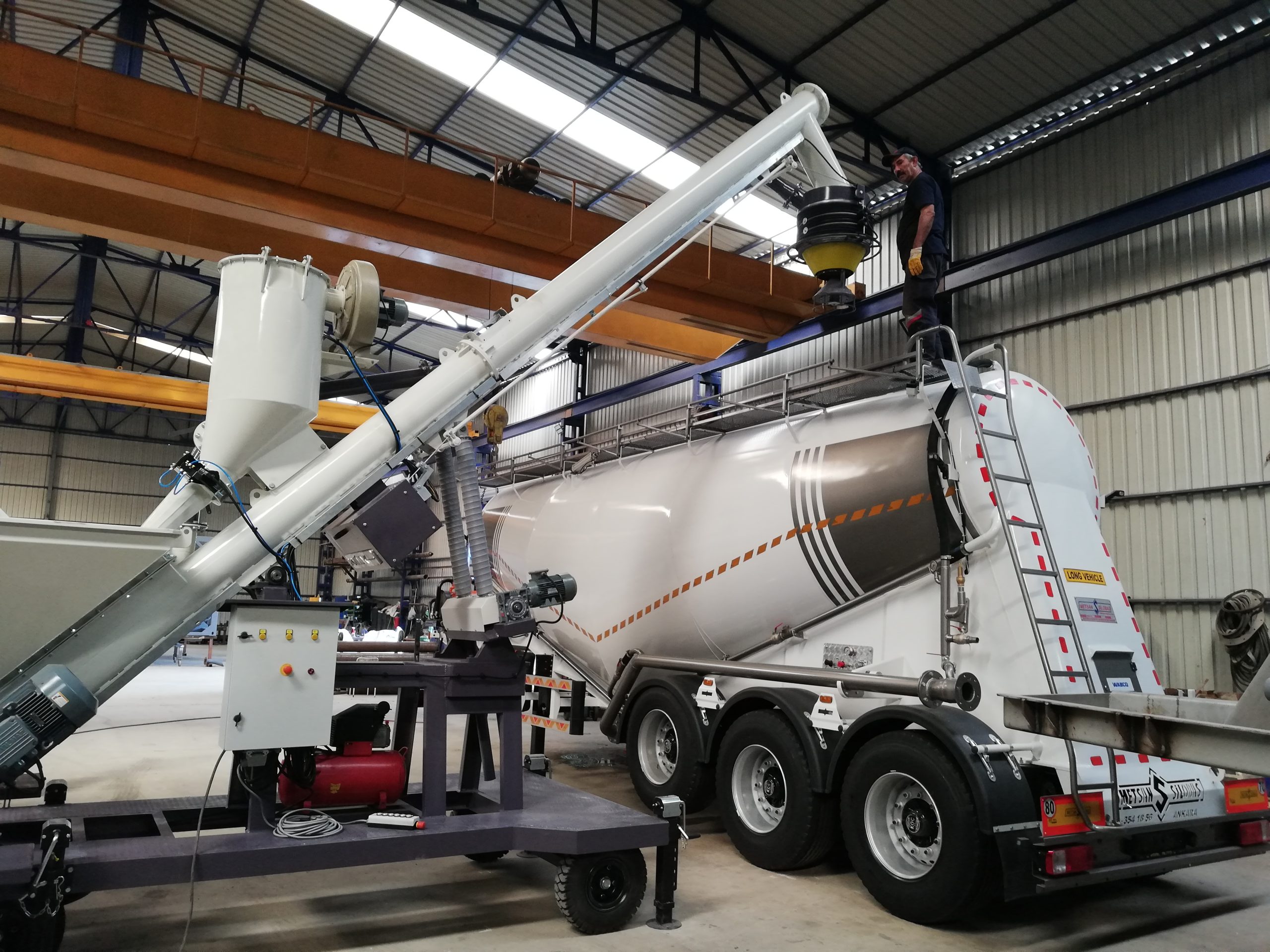

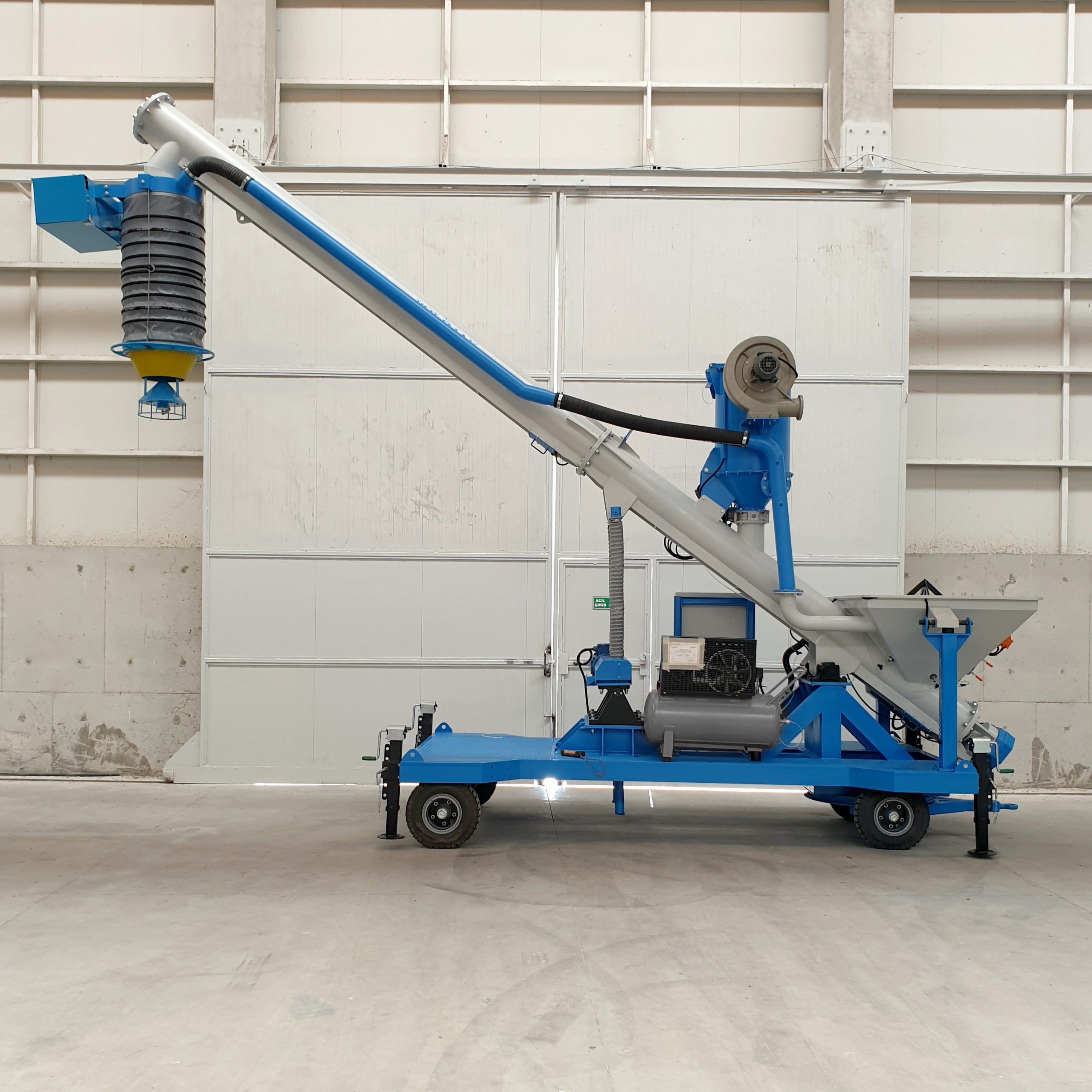

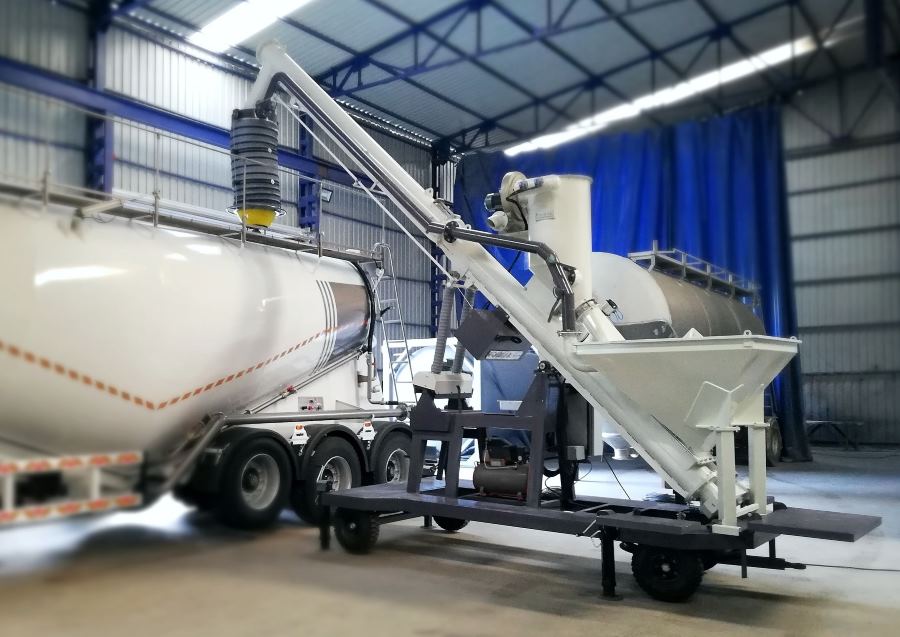

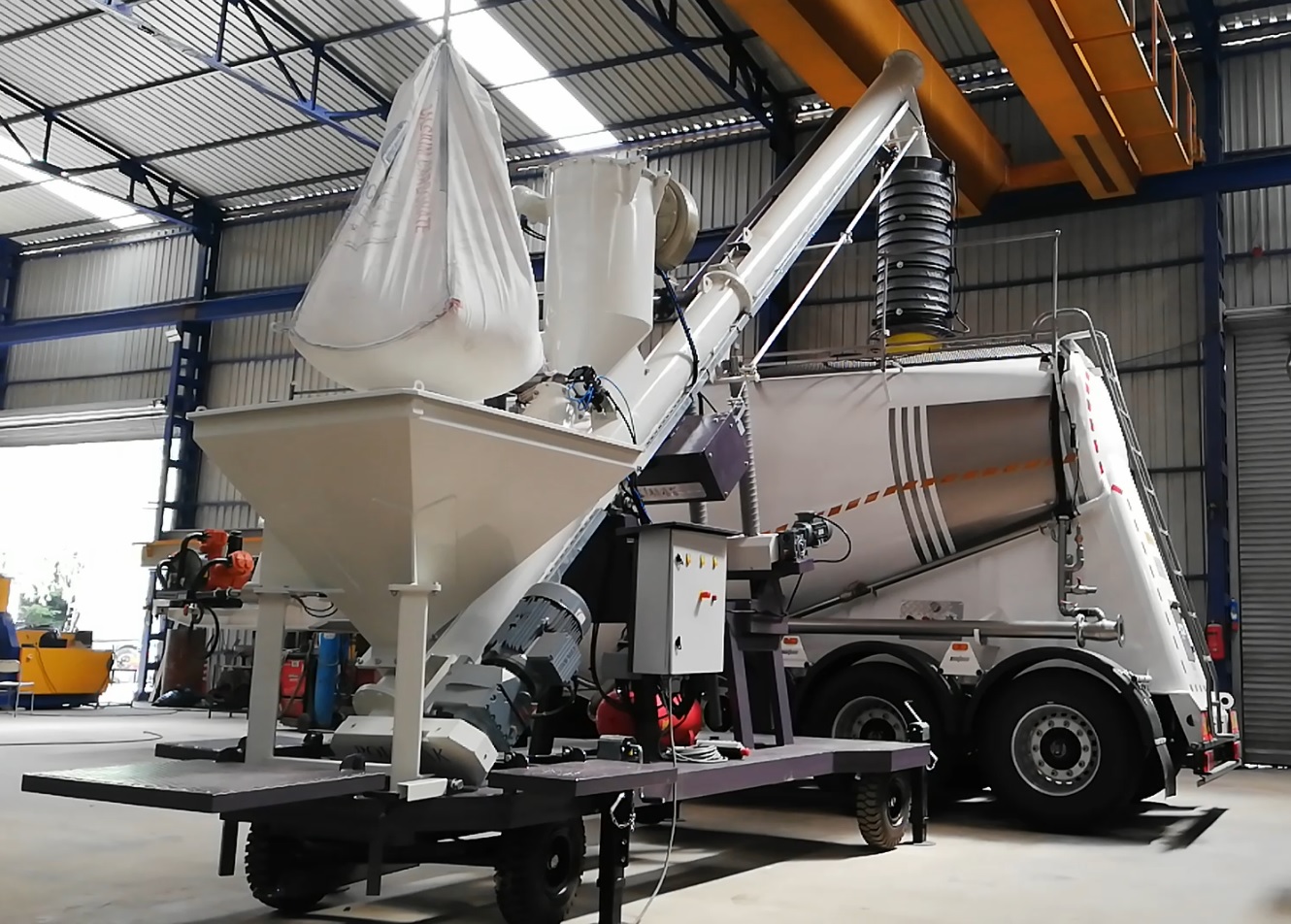

Mobile Big Bag Discharging and Bulk Truck Loading System

Bulk solids, such as powders, pellets, and granules, are widely used across various industrial sectors. These materials are generally stored in bags, bulk bins, silos, or warehouses, and are transported using trucks, conveyors, or other bulk handling systems. However, efficient loading, unloading, and transfer of these solids pose significant logistical challenges and require careful management to maintain smooth operations.

Our material handling systems are specifically engineered to meet these challenges. Our systems are built with robust construction, precision design, and a strong focus on safety and efficiency, delivering reliable performance for the storage, transportation, and transfer of bulk solids. From short-distance internal transfer to large-scale bulk logistics, our solutions are tailored to meet your specific operational needs.

Explore our range of bulk solids handling systems and choose the one that best suits your application. Let us help you move materials more efficiently, safely, and cost-effectively.

Our unique technology guarantees quick emptying of bags and ensures robust, automatic, and dust-free loading directly into trucks. Not only are these systems efficient and easy to maintain, but they are also highly economical. If your application involves big bag discharging and loading, explore our range of models—we are confident you will find the perfect solution to meet your specific needs.
There are three distinct systems within our product portfolio, each designed to address specific material handling needs:



1. Big Bag Discharge and Loading System

2. Mobile Truck Loading System with Front End Loader Hopper

3. Mobile Truck Loading System with Vacuum System

Advantages of Our Bulk Loading Systems

• Designed for Mobility

Equipped with a wheeled mobile chassis that allows easy transportation of the system to any desired location, providing excellent operational flexibility.


• Compact and Easy to Reposition

The compact design enables easy movement from one place to another, ideal for facilities with limited space or frequent repositioning needs.


• High-efficiency Material Transfer

Capable of transferring large quantities of material quickly, significantly reducing loading and unloading time.


• Simple Operation Requiring Minimal Staff

Requires very few operators to handle both unloading and loading, lowering labor costs and improving workflow.


• Remote Operation For Enhanced Safety and Convenience

Operators can control the entire operation with the help of a remote control, enhancing safety and convenience.


• Reliable Design For Long-Term Continuous Use

Designed for continuous long-term operation with minimal maintenance requirements, helping save on downtime and repair costs.


• Adjustable Leveling For Uneven Ground Conditions

Features adjustable screw jack leveling legs, allowing stable placement on uneven surfaces for safe and efficient operation.


• Flexible Loading Bellow to Fit Varying Truck Heights

The loading bellow can be extended or retracted to match the height of bulk trucks, ensuring a secure fit and reducing spillage.


• Environmentally Friendly Dust Control System

Built-in dust collection system captures dust formations effectively, preventing material loss and minimizing environmental impact.


• Robust Construction For Demanding Industrial Environments

Engineered for durability, the system operates reliably over long hours without failure, even in demanding industrial environments.

Materials Handled Through Mobile Big Bag Discharging and Bulk Truck Loading Systems

Category Materials (Powder & Granule Form)

Construction & Minerals Cement, Fly Ash, Mining Minerals, Calcium Carbonate, Cement Clinker, Gypsum, Perlite, Kaolin, Limestone, Marble Powder, Quartz, Bentonite, Bauxite, Alumina

Plastics & Polymers PVC, Plastic Pellets, Plastic Powders, Polyethylene

Chemicals & Industrial Powders Soda Ash, Urea, Sodium Sulphate

Agricultural Products Wheat, Flour, Animal Feed, Seed, Corn, Rice, Sugar, Salt
PRODUCTS

Mobile Big Bag Discharging and
Bulk Truck Loading System

Bulk solids, such as powders, pellets, and granules, are widely used across various industrial sectors. These materials are generally stored in bags, bulk bins, silos, or warehouses, and are transported using trucks, conveyors, or other bulk handling systems. However, efficient loading, unloading, and transfer of these solids pose significant logistical challenges and require careful management to maintain smooth operations.

Our material handling systems are specifically engineered to meet these challenges. Our systems are built with robust construction, precision design, and a strong focus on safety and efficiency, delivering reliable performance for the storage, transportation, and transfer of bulk solids. From short-distance internal transfer to large-scale bulk logistics, our solutions are tailored to meet your specific operational needs.
Explore our range of bulk solids handling systems and choose the one that best suits your application. Let us help you move materials more efficiently, safely, and cost-effectively.

Our unique technology guarantees quick emptying of bags and ensures robust, automatic, and dust-free loading directly into trucks. Not only are these systems efficient and easy to maintain, but they are also highly economical. If your application involves big bag discharging and loading, explore our range of models—we are confident you will find the perfect solution to meet your specific needs.

There are three distinct systems within our product portfolio, each designed to address specific material handling needs:
INSIGHTS

Models

Explore our wide range of high-quality accessories for your bulk solids handling machinery.
View all

PRODUCTS 1. Big Bag Discharge and Loading System System Description The mobile big bag discharge and loading system is designed for the efficient unloading of big bags and the dust-free loading of bulk tanker trucks. It offers a flexible and portable solution for handling bulk materials in various industrial settings while promoting environmentally friendly and […]

Models
LEARN MORE

PRODUCTS 2. Mobile Truck Loading System with Front End Loader Hopper System Description Mobile truck loading systems with built-in loader hoppers are designed for efficient transfer of bulk materials from wheel loaders to trucks. These systems help reduce material spillage, minimize dust emissions, and reduce energy consumption, promoting green and sustainable operations. Their high-throughput design […]

Models
LEARN MORE

Use Scenarios of Vacuum Conveyor Systems PICTURE• Scenario 1: Loading from Stockpile to the TruckBulk material is vacuumed from the stockpile on the plant ground through a vacuum hose connected to the vacuum system, which transfers it into the truck for further processing.• Scenario 2: Loading from a Stockpile to WarehouseMaterial is transferred from the […]

Models
LEARN MORE

Advantages of Our Bulk Loading Systems

• Designed for Mobility
Equipped with a wheeled mobile chassis that allows easy transportation of the system to any desired location, providing excellent operational flexibility.

• Compact and Easy to Reposition
The compact design enables easy movement from one place to another, ideal for facilities with limited space or frequent repositioning needs.

• High-efficiency Material Transfer
Capable of transferring large quantities of material quickly, significantly reducing loading and unloading time.

• Simple Operation Requiring Minimal Staff
Requires very few operators to handle both unloading and loading, lowering labor costs and improving workflow.

• Remote Operation For Enhanced Safety and Convenience
Operators can control the entire operation with the help of a remote control, enhancing safety and convenience.

• Reliable Design For Long-Term Continuous Use
Designed for continuous long-term operation with minimal maintenance requirements, helping save on downtime and repair costs.

• Adjustable Leveling For Uneven Ground Conditions
Features adjustable screw jack leveling legs, allowing stable placement on uneven surfaces for safe and efficient operation.

• Flexible Loading Bellow to Fit Varying Truck Heights
The loading bellow can be extended or retracted to match the height of bulk trucks, ensuring a secure fit and reducing spillage.

• Environmentally Friendly Dust Control System
Built-in dust collection system captures dust formations effectively, preventing material loss and minimizing environmental impact.

• Robust Construction For Demanding Industrial Environments
Engineered for durability, the system operates reliably over long hours without failure, even in demanding industrial environments.

Bulk Materials Handled by Our Bulk Loading Systems

Starch

Minerals

Coffee Powder
Spices

Limestone

Copper Oxide
Cement

Salt

Sugar

Sand

Calcium Carbonate
Alumina
